UCM-iMX8M-Mini: NXP Freescale i.MX8M Mini

Navigate

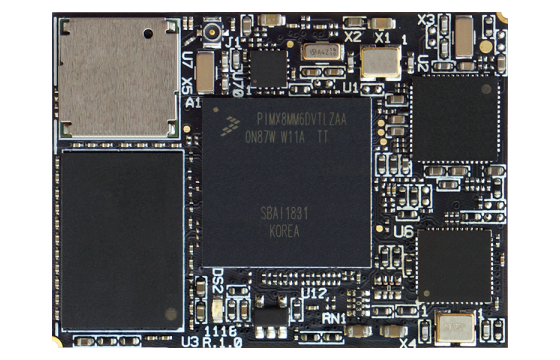

UCM-iMX8M-Mini: NXP i.MX8M Mini

ARM
A53
4GB

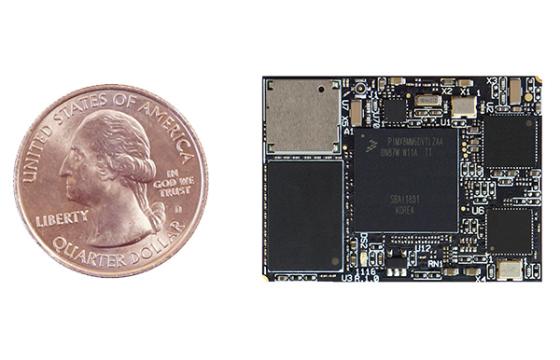

The NXP i.MX8M-Mini SoM is the first i.MX 8 device to feature advanced 14nm FinFET technology. Efficient in every respect, the board measures just 28mm x 38mm x 4mm and consumes from as little as 0.5W to just 3W depending on configuration. With integrated security features including a true random-number generator (TRNG), secure RAM, secure key storage, crypto accelerators and Arm TrustZone technology, this board is ideal for embedded industrial and IoT applications where space is a premium.

All of our Core Modules are available to purchase as an Evaluation kit for proof of concept. Details of the kit contents are on the tab below. Please submit your request on the quick form and we'll come back to you.

  • Quad Core ARM Cortex A53 @1.8GHz
  • Up to 4GB LPDDR4 and 64GB eMMC
  • MIPI-DSI interface, up to 1920 x 1080
  • GbE, PCIe, 2x USB, 4x UART, 85x GPIO
  • Wide tempature range -40° to 85°C
  • For space constrained designs and portable equipment
Download Datasheet Send Enquiry

Get started with an Evaluation Kit

Loading
FeatureSpecification
CPU Architecture ARM Cortex A53
CPU Manufacturer NXP
CPU Model i.MX8M Mini DualLite
i.MX8M Mini Dual
i.MX8M Mini Quad Core
CPU Frequency Up to 1.8GHz
Real Time Co-Processor Yes
MemoryUp to 4GB LPDDR4
Onboard Storage Up to 64GB eMMC
Display Interface MIPI-DSI
Display Resolution (Max) 1920x1080
TouchScreen Controller CTP
Ethernet Ports 1
WIFICertified 802.11ac
BluetoothV4.2 BLE
USB 2.0 Ports Host 2
MMC/SD/SDIO Up to 1
PCIe Up to 2 (Gen 2.1)
UART/Serial Up to 4
GPIOUp to 85
I2CUp to 3
SPIUp to 3
Power Supply Voltage 3.45V – 4.4V
Dimensions28 x 38 x 4 mm
OS Support Linux
Android
Yocto Project File

* Optional feature available on this product

DocumentDescription
Block Diagram Block Diagram for UCM-iMX8M-Mini

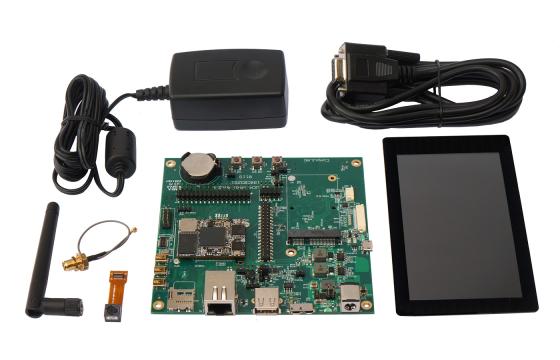

UCM-iMX8M-Mini Evaluation Kit

Package contents

  • Technical support for 12 months.
  • Schematics review of the customer's carrier board design.
  • LCD panel compatibility verification and driver adaptation service.
  • 45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for his needs.

Hardware

  • UCM-iMX8M-C1800QM-D2-N16-E-WB
  • SB-UCMIMX8 carrier board
  • 5” WXGA LCD with capacitive touch panel
  • WiFi antenna and cable
  • Serial port cable
  • USB cable and adapter
  • LI-OV5640 camera module
  • 12V power supply

Minimal configuration P/N: UCM-iMX8M-C1800D-D1-N4

1K-unit price: $50

Send Enquiry
