OLED Displays

For sleek design, high contrast and wide viewing angles, OLED displays can elevate your product design to the next level

View Products

What different types of OLED display can I choose from?

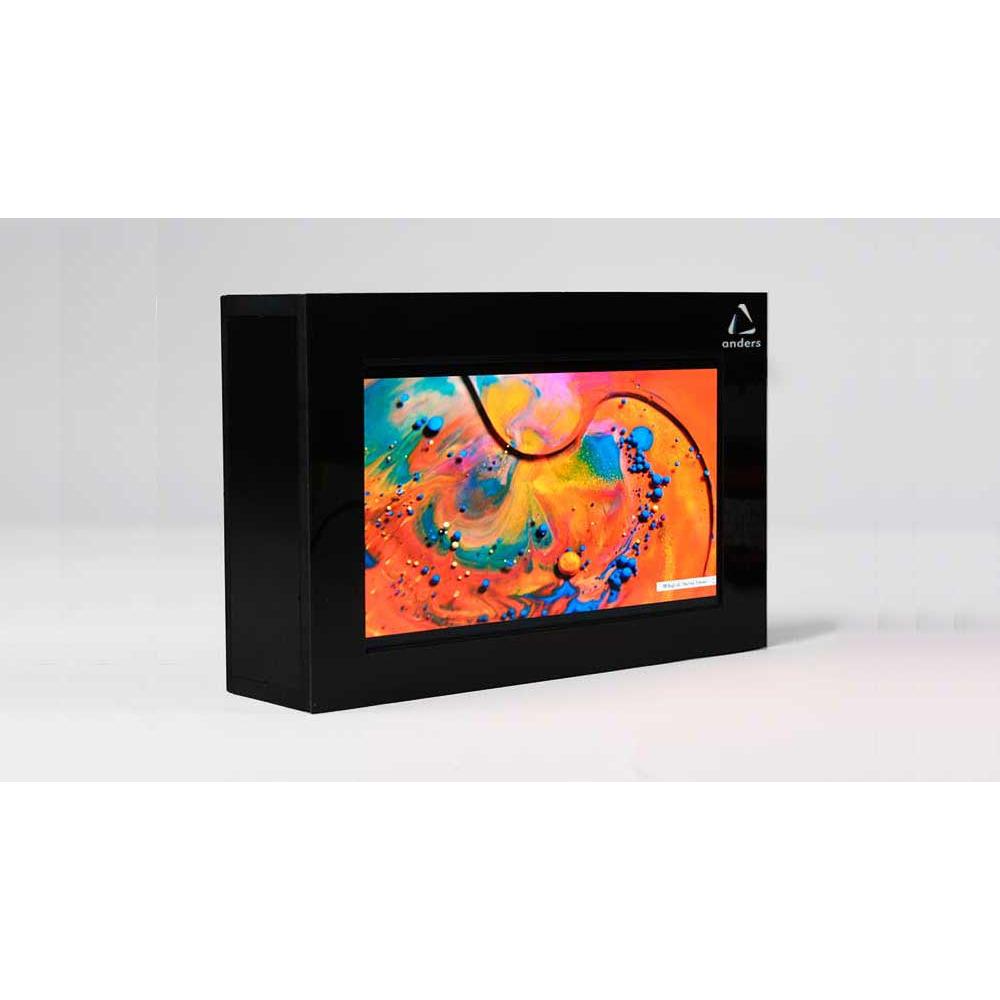

AMOLED Displays

Active and Passive Matrix OLEDs offer an attractive solution for industrial designs with their low power consumption, ultra-thin design and superior optical clarity. Our AMOLED Display ragne includes a circular 1.3", full HD 5.6" and 6.01".

Learn More

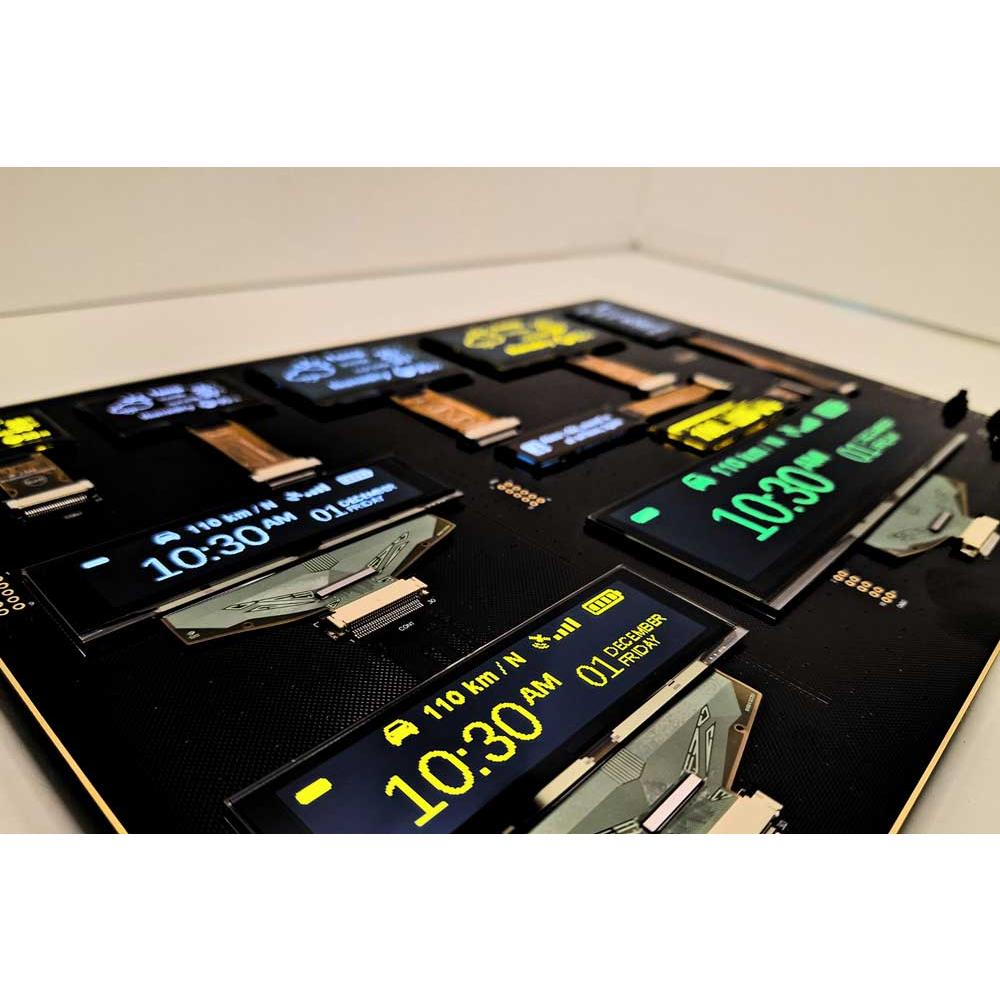

PMOLED Displays

As with AMOLED, Passive Matrix OLEDs require no backlight and therefore are highly power efficient. The high contrast icons on pure black background produce give a superior monochrome look.

Learn More

What is the difference between AMOLED and PMOLED

AMOLEDs use TFT technology to implement their active pixel addressing scheme, which sets them apart from their passive matrix cousins, PMOLED. Both types generate light through the all-important emissive electroluminescent layer, formed from a thin layer of organic compound, but PMOLEDs use a simpler ‘row/column’ pixel addressing scheme inherited from earlier LCD designs, which imposes the need for refresh rates high enough to maintain acceptable image persistence.

Latest Display Design Services


Kastus® Antimicrobial & Antiviral surface coating tested against Coronavirus

Anders have partnered with world leading brand Kastus® to offer a globally patented antimicrobial & antiviral surface coating which has a proven kill rate of up to 99.99% against harmful bacteria, fungi and antibiotic-resistant superbugs, which makes it particularly useful for products including glass and ceramics. This year, an independent testing report found Kastus to be effective against human Coronavirus on screens.

Learn More

Differentiate with circular displays


Circular Displays

Choosing a circular display for your next product design could really set you apart from your competition. Both AMOLED and PMOLED displays are available as circular modules. Contact us today to discuss your options.

View Products

Our OLED Display range


See below our range of OLED Displays for industrial designs with sizes ranging from 0.95" to 6.01". If you are looking for something not currently available in the below listing, we would be happy to still help find the solution you're looking for, as not all our products are included on the catalogue.

All our displays can be tailored to suit your application with our Design Services, from optical performance enhancements and antimicrobial coating technology, right through to mechanical integration. Get in touch with our team for information about samples and pricing.


0.91" Monochrome OLED Display

OEL9M0068-W-E

PMOLED
Touch
128x32
SPI
  • Screen Size: 0.91"
  • Resolution: 128 x 32
  • Brightness: 120cd/m2
  • Touch Options: CTP, RTP, None
  • Display Colour: White
  • Module Dimensions: 30.0 x 11.5 x 1.45mm
  • Operating Temperature: -20° to 70°C

0.95" Colour OLED Display

OLM00300PMV

AMOLED
0.95"
Touch
100
8080 / 6800
SPI
  • Screen Size: 0.95"
  • Resolution: 96 (RGB) x 64
  • Touch Options: CTP, RTP, None
  • Module size: 24.8 x 29.6 x 1.3mm
  • Brightness: 100cd/m2
  • Operating Temperature: -30° to 70°C
  • Interface: Parallel 6800/8080 / SPI

0.96" Monochrome OLED Display

OLM00180PMV

PMOLED
Touch
128x64
8080 / 6800
  • Screen Size: 0.96"
  • Resolution: 128 x 64
  • Brightness: 45cd/m2
  • Touch Options: CTP, RTP, None
  • Display Colour: Yellow & Blue
  • Module size: 26.7 x 19.26 x 1.3mm
  • Operating Temperature: -20° to 70°C

1.02" Monochrome OLED Display

OEL9M0073-W-E

PMOLED
Touch
128x64
SPI
  • Screen Size: 1.02"
  • Resolution: 128 x 64
  • Brightness: 120cd/m2
  • Touch Options: CTP, RTP, None
  • Display Colour: White
  • Module Dimensions: 30.0 x 20.16 x 1.45mm
  • Operating Temperature: -20° to 70°C

1.10" Monochrome OLED Display

OEL9T0000-W-E

PMOLED
Touch
20x2
SPI
  • Screen Size: 1.10"
  • Resolution: 196 x 96
  • Brightness: 120cd/m2
  • Touch Options: CTP, RTP, None
  • Display Colour: White
  • Module Dimensions: 30 x 19 x 3mm
  • Operating Temperature: -10° to 60°C

Circular 1.13" Monochrome OLED Display

OEL9M1028-W-E

PMOLED
Touch
128x128
SPI
  • Screen Size: 1.13"
  • Resolution: 128 x 128
  • Brightness: 100cd/m2
  • Touch Options: CTP, RTP, None
  • Display Colour: White
  • Module Dimensions: 37.62 x 41.31 x 1.45mm
  • Operating Temperature: -30° to 70°C

1.3" PCAP AMOLED Display

AM013RN90020V0

AMOLED
1.3"
Touch
350
MIPI
  • Screen Size: 1.3"
  • Resolution: 360 x 360
  • Touch Options: CTP, RTP, None
  • Module size: 35.3 x 36.8 x 0.6 mm
  • Brightness: 350 cd/m2
  • Operating Temperature: -20° to 60°C
  • Interface: MIPI

1.54" Monochrome OLED Display

OLM00590PMV

PMOLED
Touch
128x64
8080 / 6800
SPI
  • Screen Size: 1.54"
  • Resolution: 128 x 64
  • Brightness: 100cd/m2
  • Touch Options: CTP, RTP, None
  • Display Colour: White
  • Module Dimensions: 42.04 x 70.62 x 1.45mm
  • Operating Temperature: -40° to 70°C

1.82" Monochrome OLED Display

OLM00410PMV

PMOLED
Touch
256x32
8080 / 6800
SPI
  • Screen Size: 1.82"
  • Resolution: 256 x 32
  • Brightness: 100cd/m2
  • Touch Options: CTP, RTP, None
  • Display Colour: White
  • Module Dimensions: 52.0 x 34.7 x 1.81mm
  • Operating Temperature: -40° to 85°C

2.80" Monochrome OLED Display

OEL9M1020-O-E

PMOLED
Touch
256x64
8080 / 6800
SPI
  • Screen Size: 2.80"
  • Resolution: 256 x 64
  • Brightness: 100 cd/m2
  • Touch options: CTP, RTP, None
  • Display Colour: orange
  • Module Dimensions: 28.5 x 80.5 x 2 mm
  • Operating Temperature: -30° to 80°

5.68" Full HD PCAP AMOLED Display

AM057RN90003V0

AMOLED
5.68"
Touch
300
  • Screen Size: 5.68"
  • Resolution: 1080 x 1920
  • Touch Options: CTP, RTP, None
  • Module size: 73.1 ×132.7 × 0.5mm
  • Brightness: 300cd/m2
  • Operating Temperature: -40° to 70°C
  • Interface: MIPI

6.01" full colour PCAP AMOLED Display

AM060RN90051V0

AMOLED
6.01"
Touch
430
MIPI
  • Screen Size: 6.01"
  • Resolution: 1080 x 2160
  • Touch Options: CTP, RTP, None
  • Module size: 70.0 × 142.3 × 0.7mm
  • Brightness: 430cd/m2
  • Operating Temperature: -20° to 70°C
  • Interface: MIPI

Optimise
Your Display

Putting your own stamp on your product is more than a logo on the start-up screen. Discover how we can help you design a unique display solution with our customisation services:

  • Custom Coverlens
  • Antimicrobial coating
  • Films and Filters
  • Optical bonding
  • Touch choice
  • Display mounting integration
  • EMC filtering

Let's get started on your project

We aim to offer reliable and long-term solutions to our B2B customers. If you are a business and would like to discuss your display and/or embedded system requirements please contact us below
