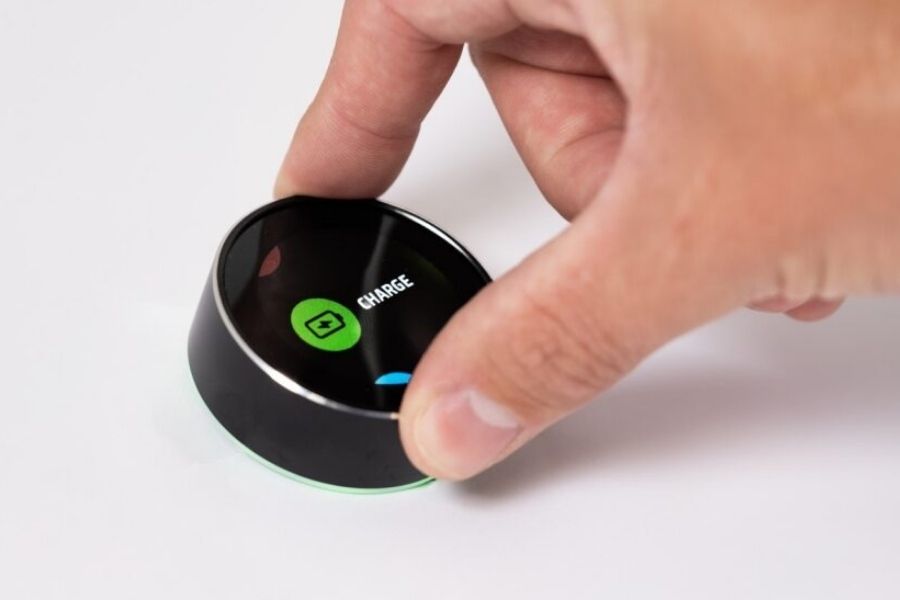

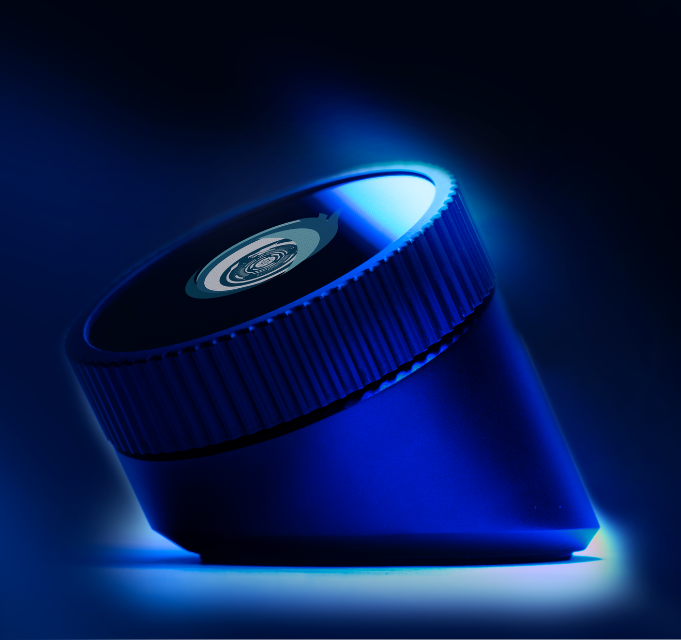

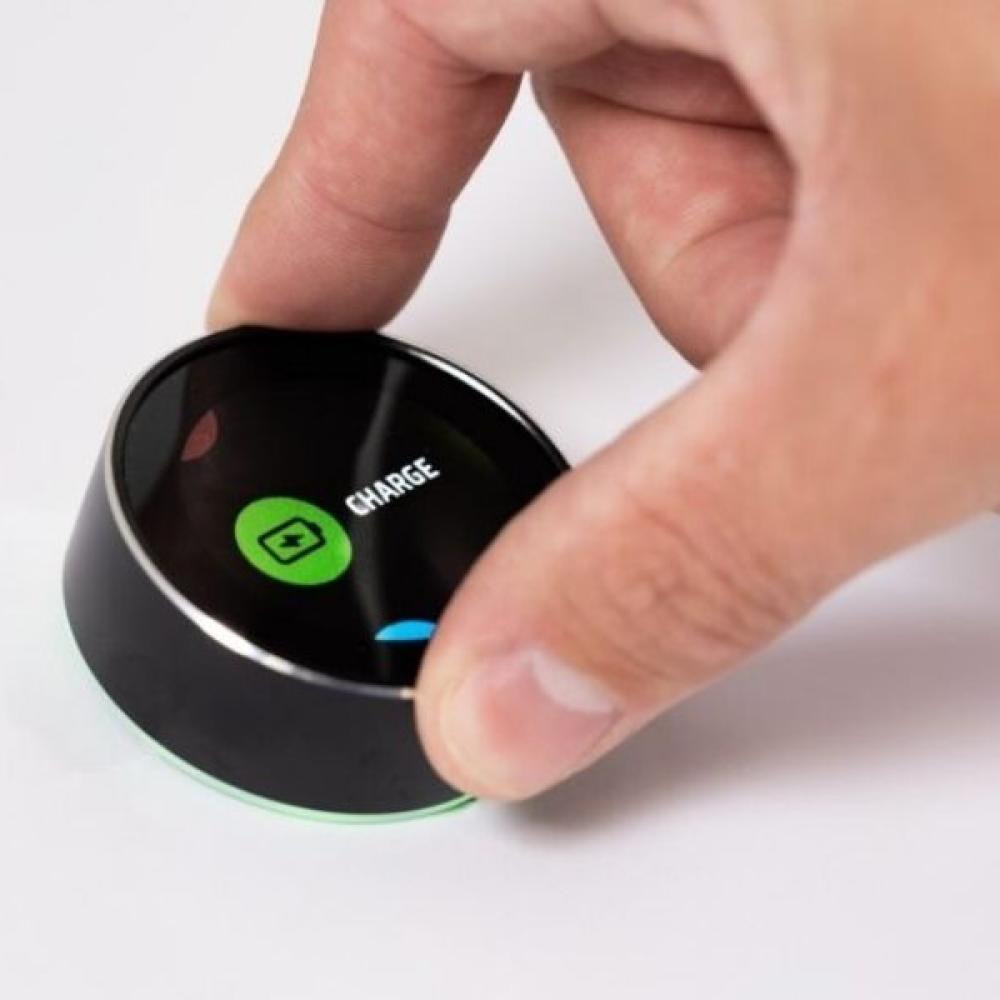

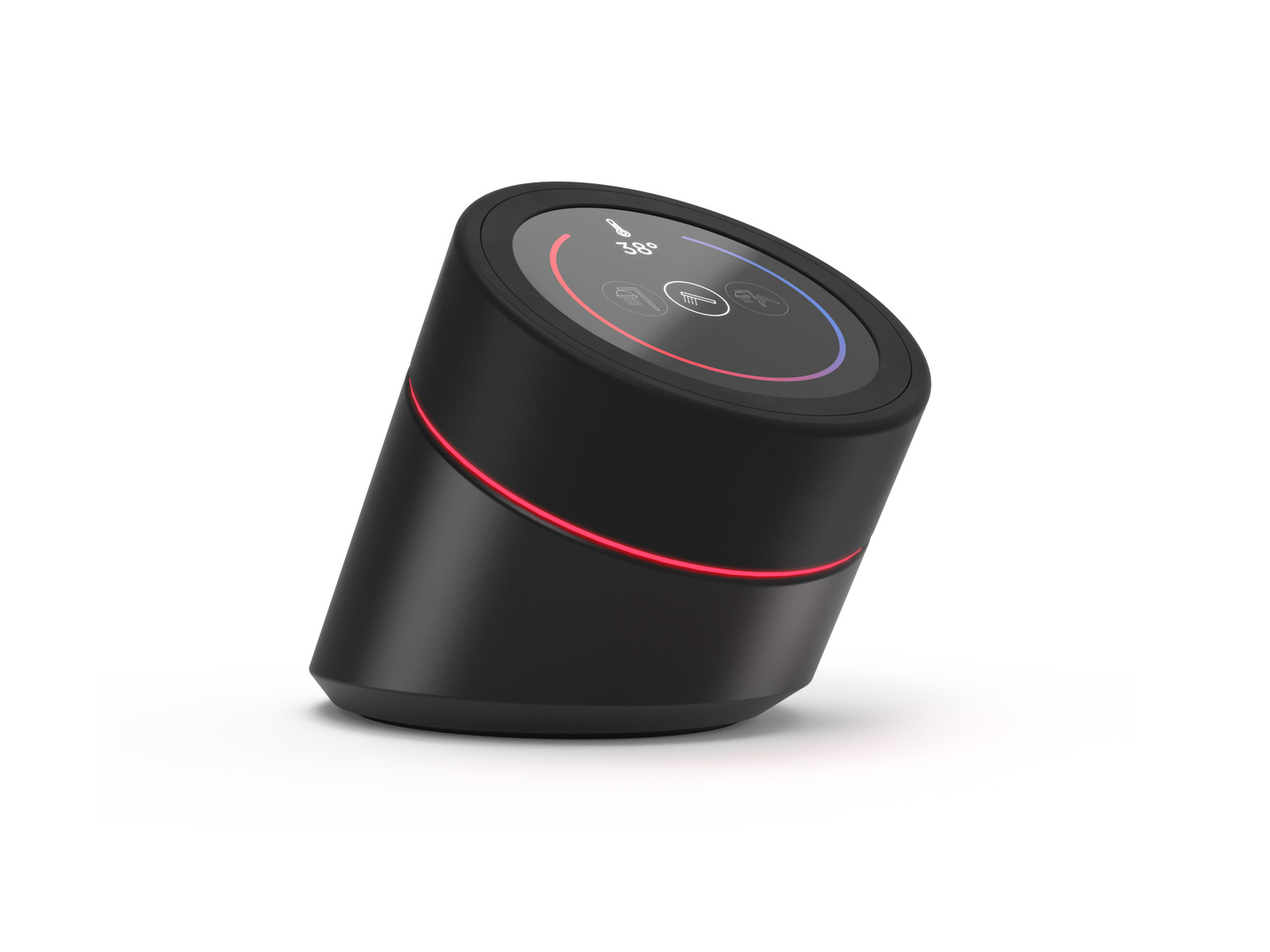

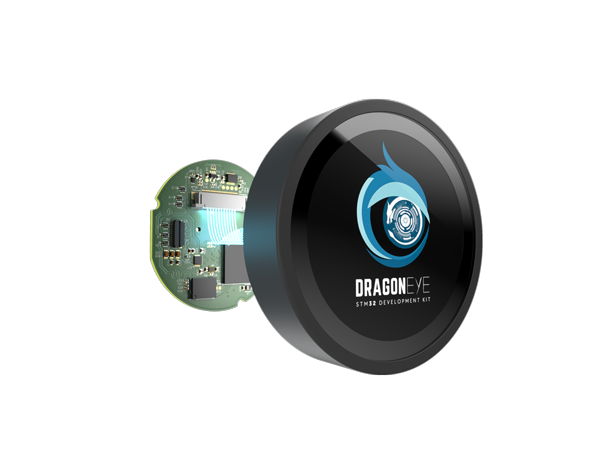

DragonEye Microcontroller Development Kit

Powered by the STM32 ARM Cortex M4 core, DRAGONEYE is a pre-developed hardware/software combination designed to bring HMIs to life effortlessly. It not only allows idea validation with a quick proof of concept, but also allows development of software for a final prototype, saving up to 6 months’ worth of time and financial resource in hardware development and driver integration.

RAPID DEVELOPMENT

Reduce engineering time by up to 6 months with significant cost saving when you use our pre-developed platform that streamlines hardware & software development.

ADVANCED FEATURES

Performance enhancing embedded computer built on STM32 ARM Cortex-M4 CPU with adaptive real-time acceleration for exceptional execution speed and efficiency.

FULL EVALUATION

Rapidly test, develop and evaluate display performance, GUI designs, software control, I/O comm ports and much more to gauge real-world application performance.

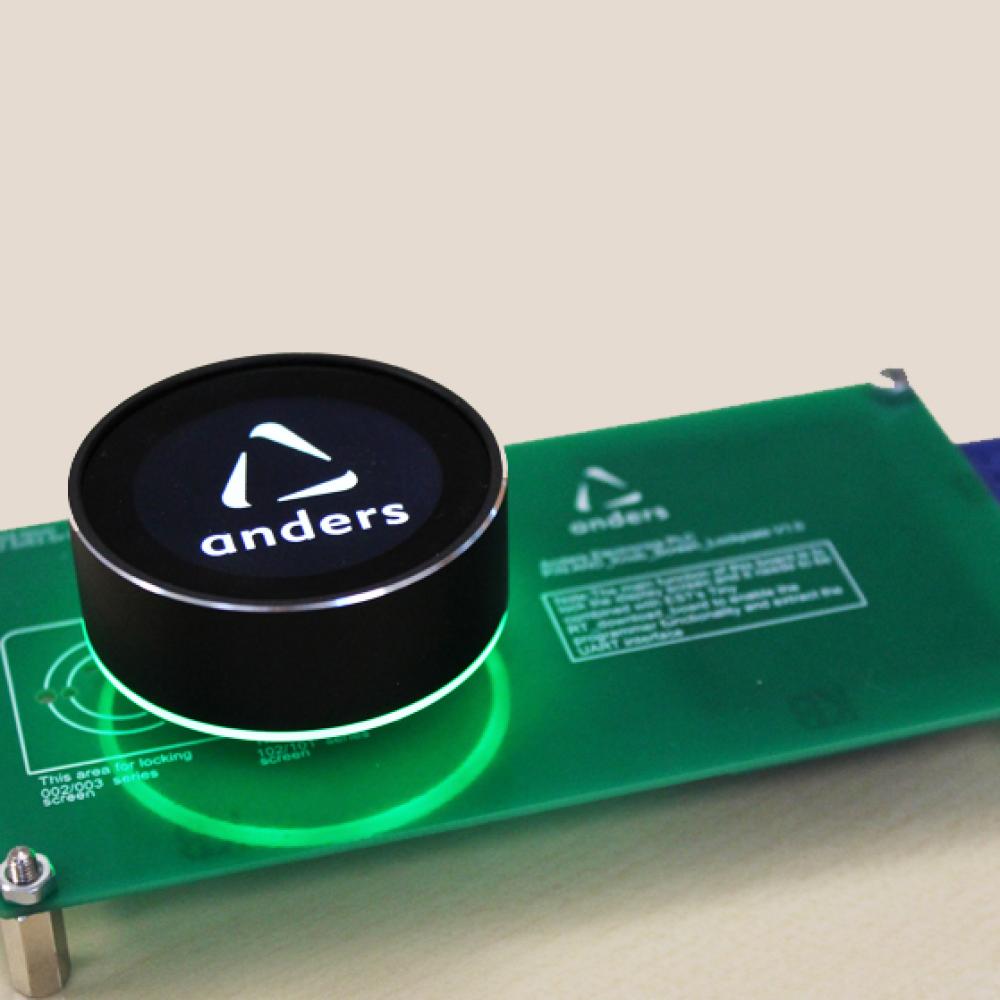

Development Kit Contents

By integrating external memory and interfaces, we’ve created a development kit, that is efficient and ready to run out of the box.

Enquire

DRAGONEYE Features

  • High-performance:
    STM32F4 MCU featuring MIPI-DSI and RGB interface
  • Expanded memory options:
    16MB SDRAM and Flash Chip memory
    for peace of mind UI/UX development
  • Extensive host connectivity options:
    Including UART, SPI, CAN bus, I2C, GPIOs
    to directly drive host co-processor or sensors/actuators

  • Expansion connectivity:
    Including UART, I2C, GPIOs, Wifi/BT*
    for total standalone applications
  • High contrast display:
    480x480 or 240x240 IPS TFT display with all round viewing

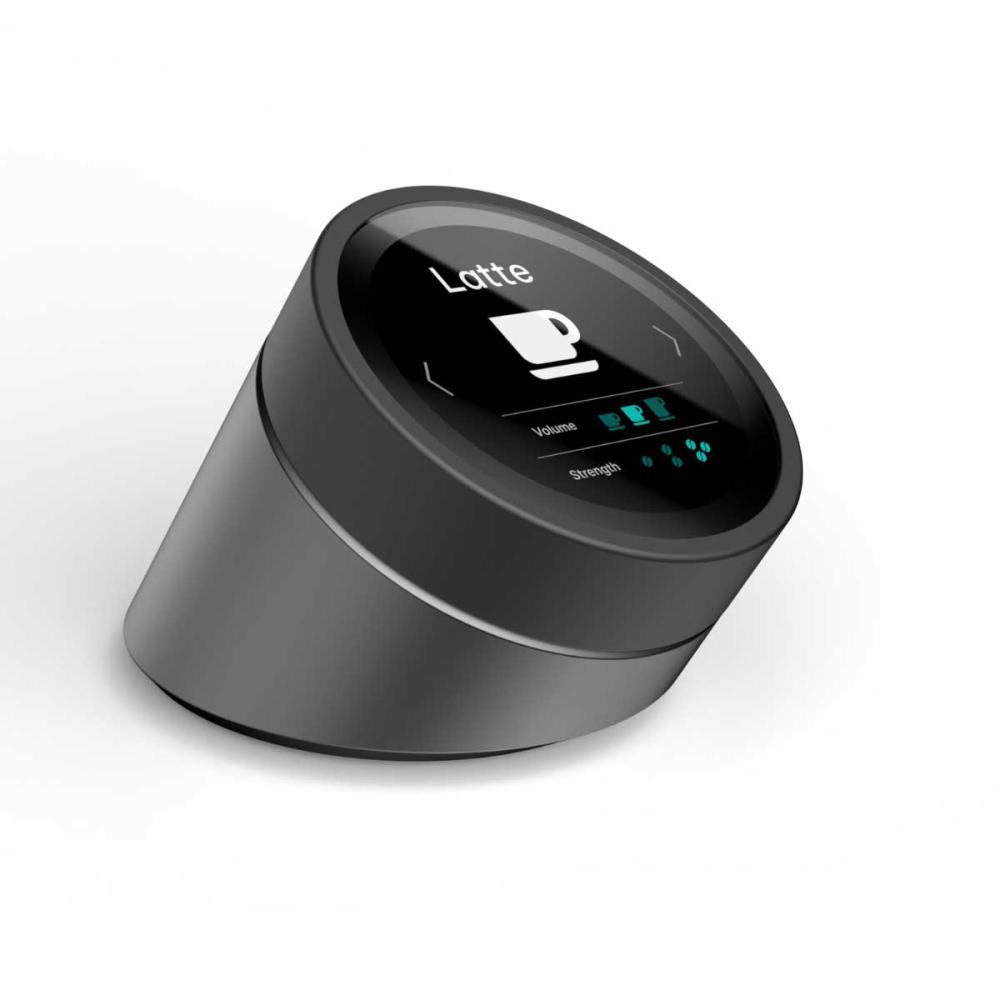

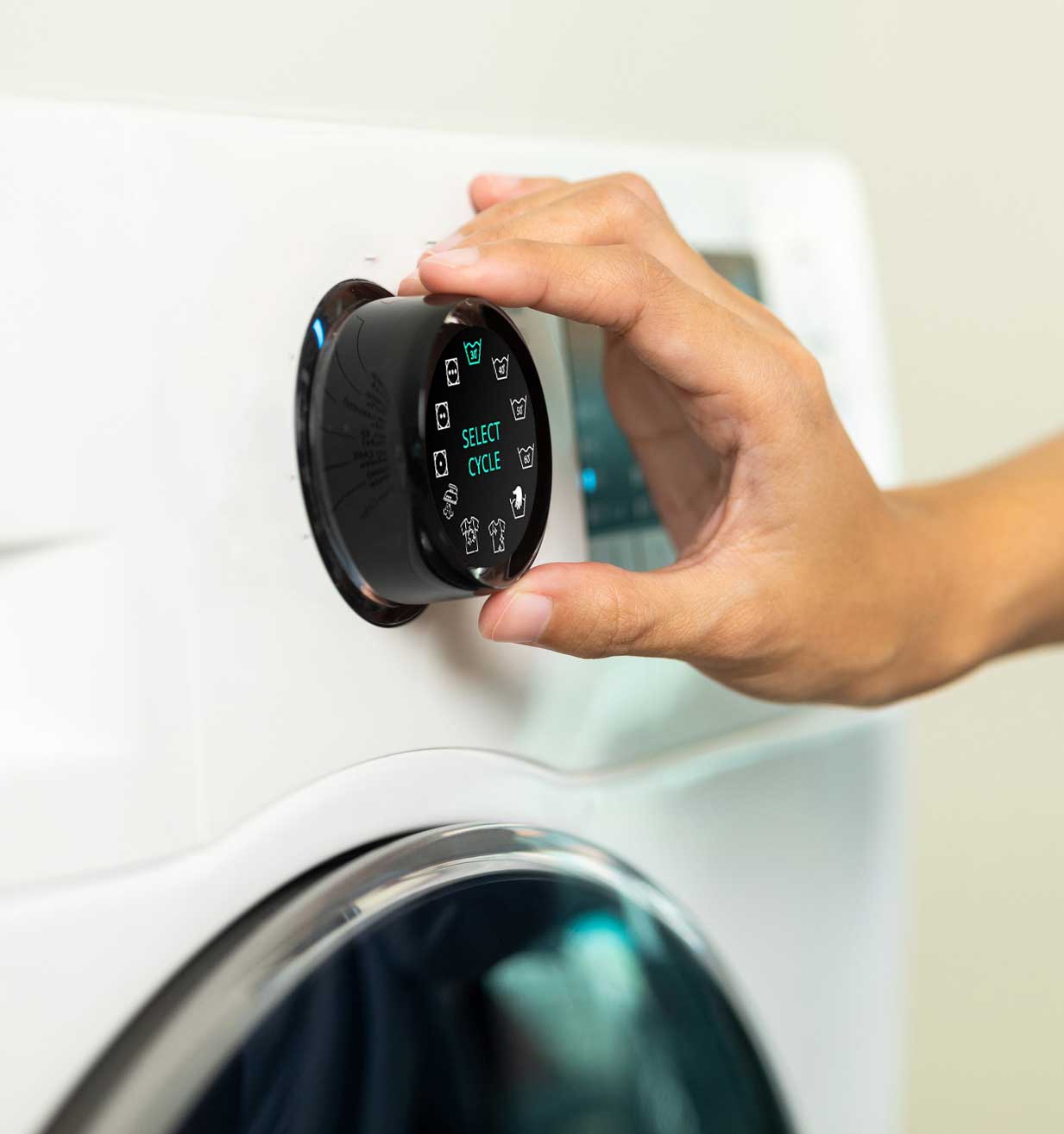

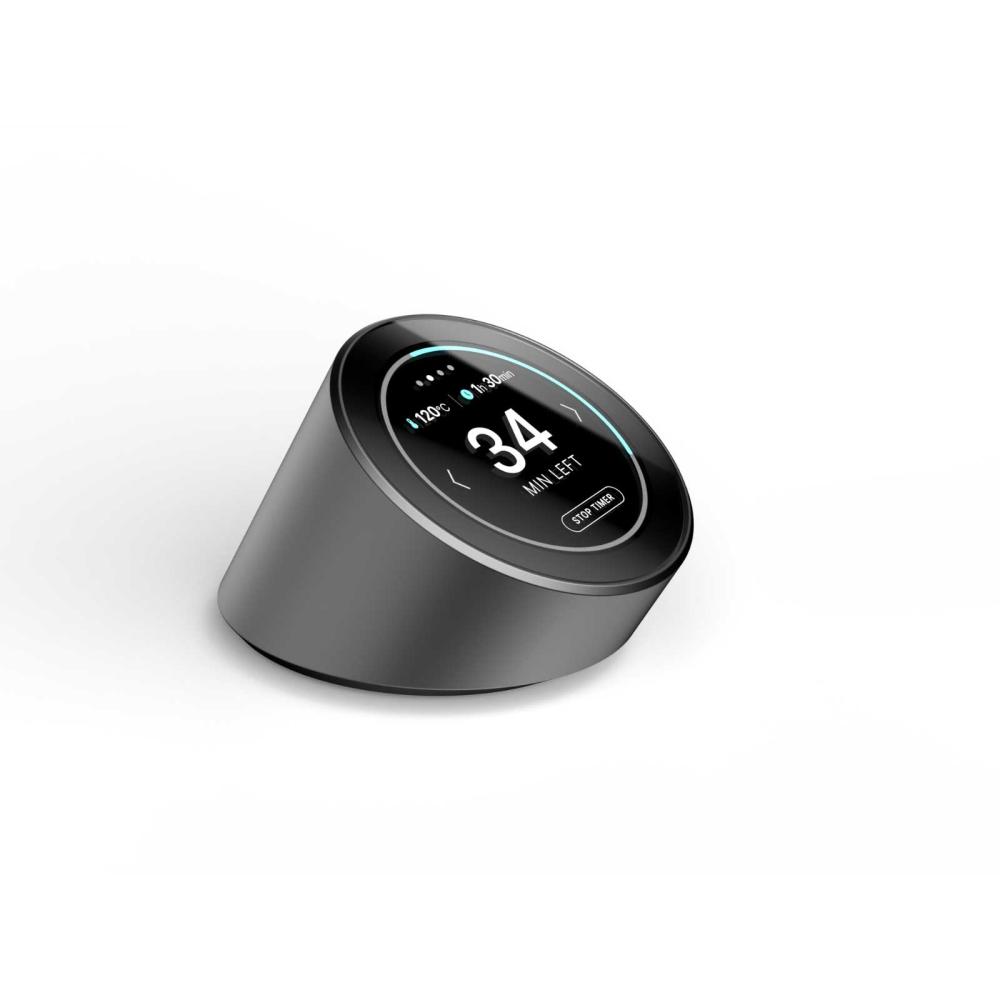

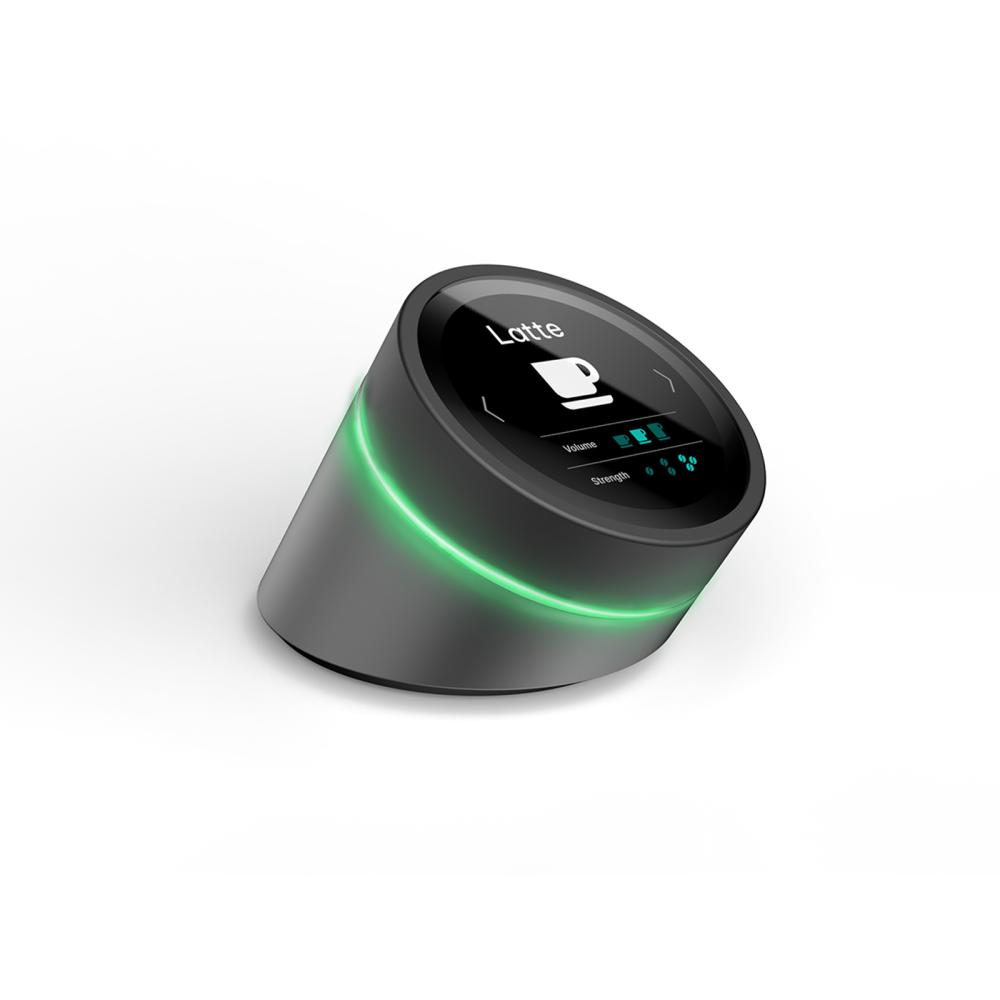

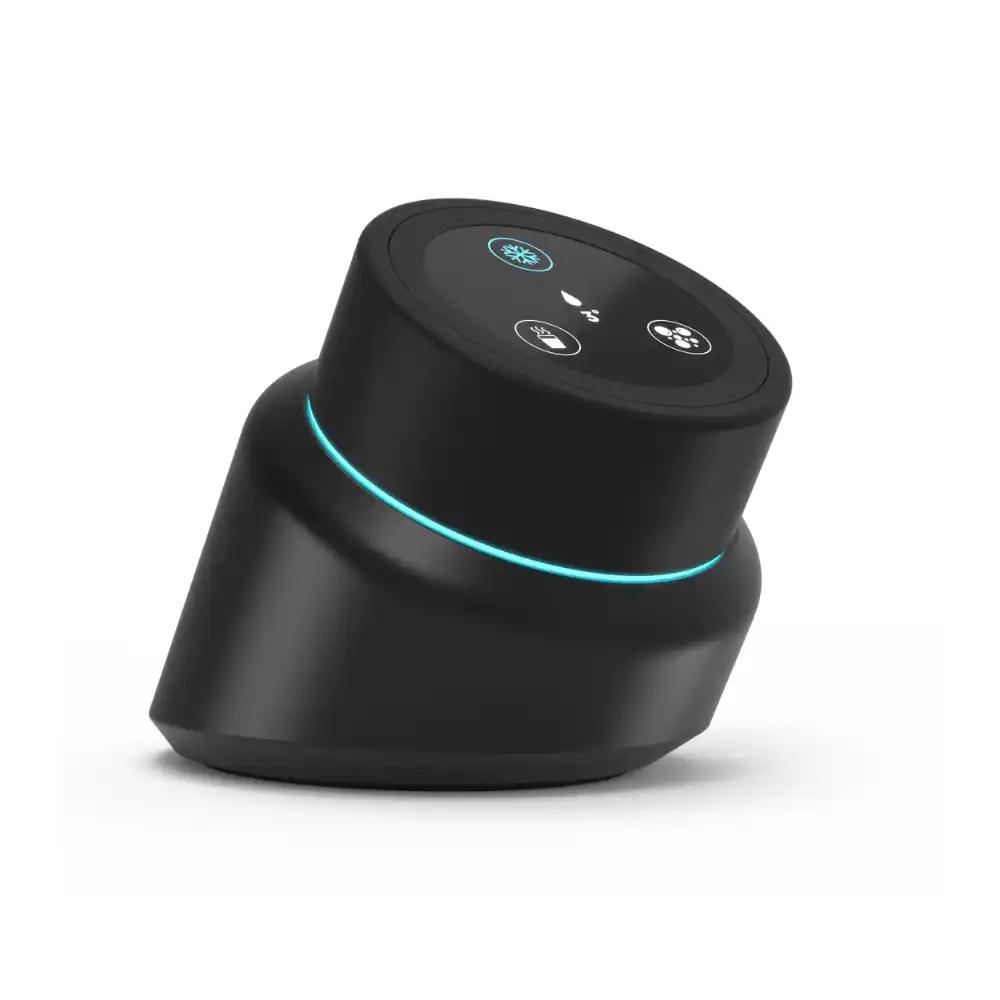

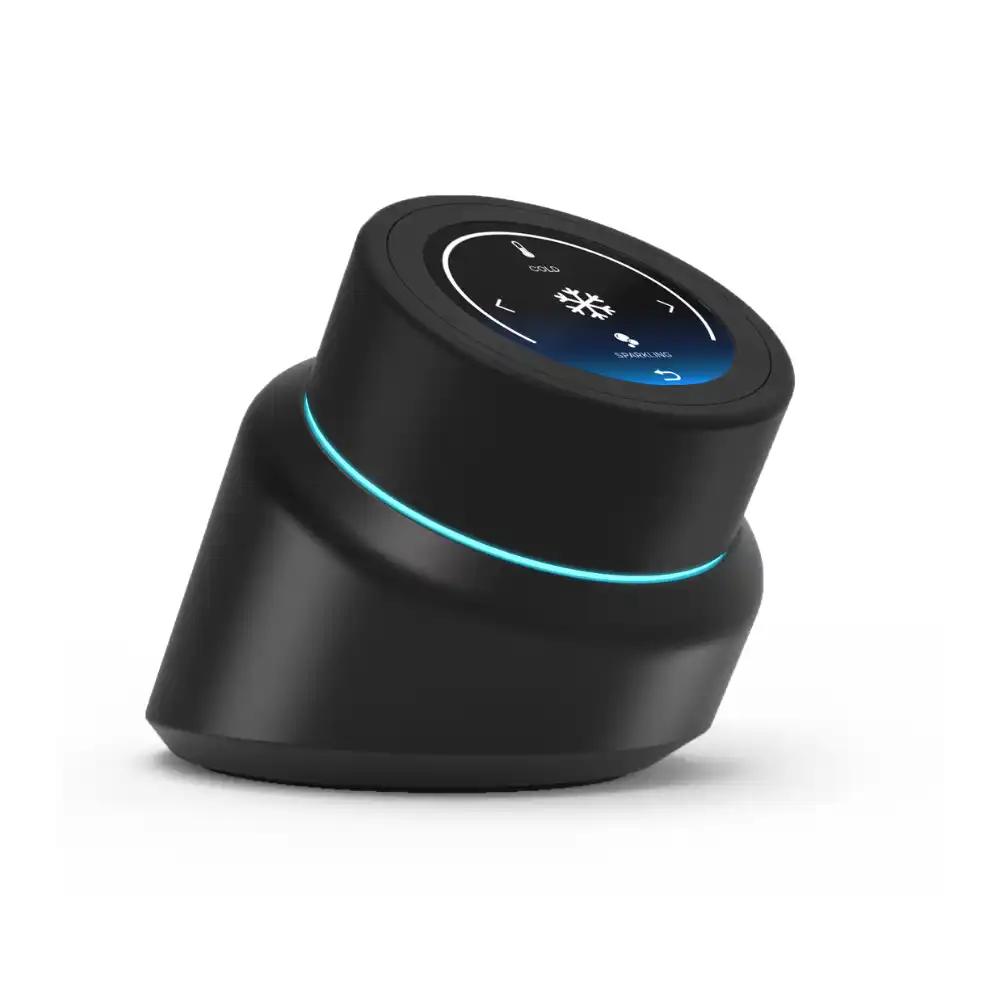

  • User input interaction:

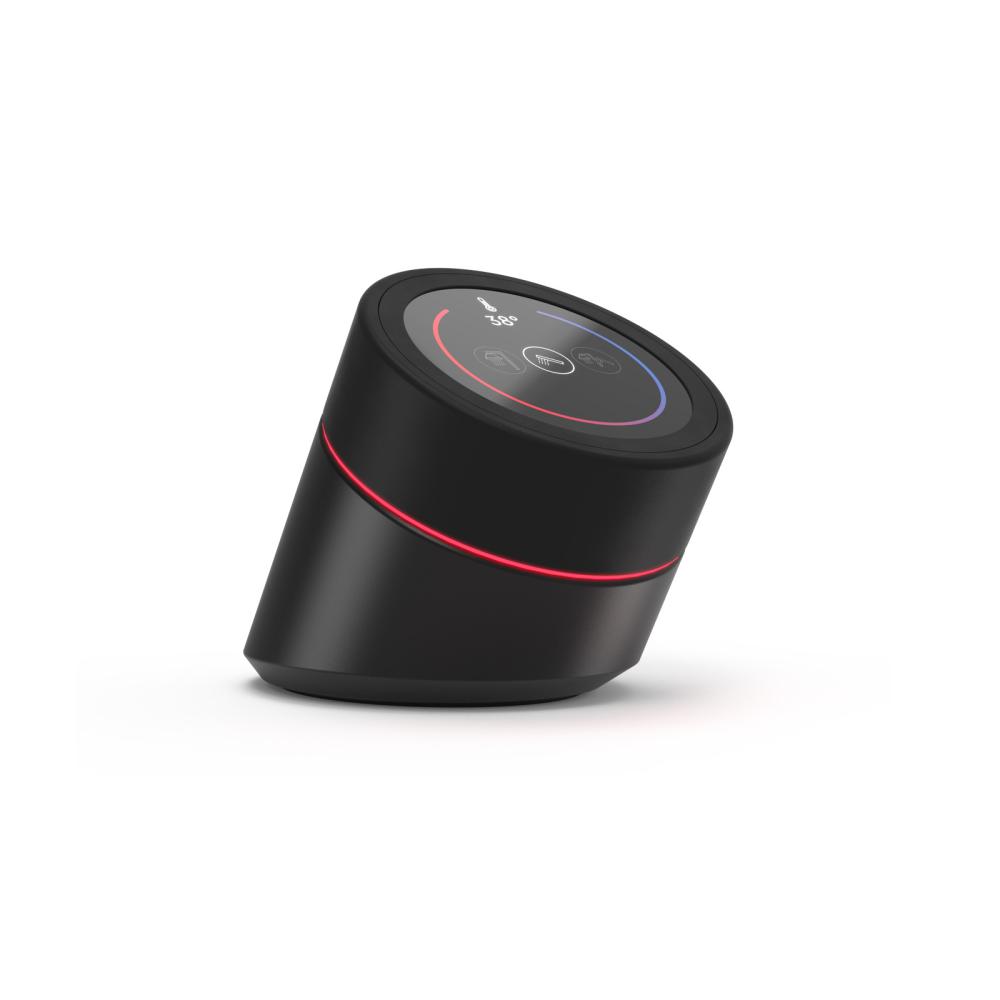

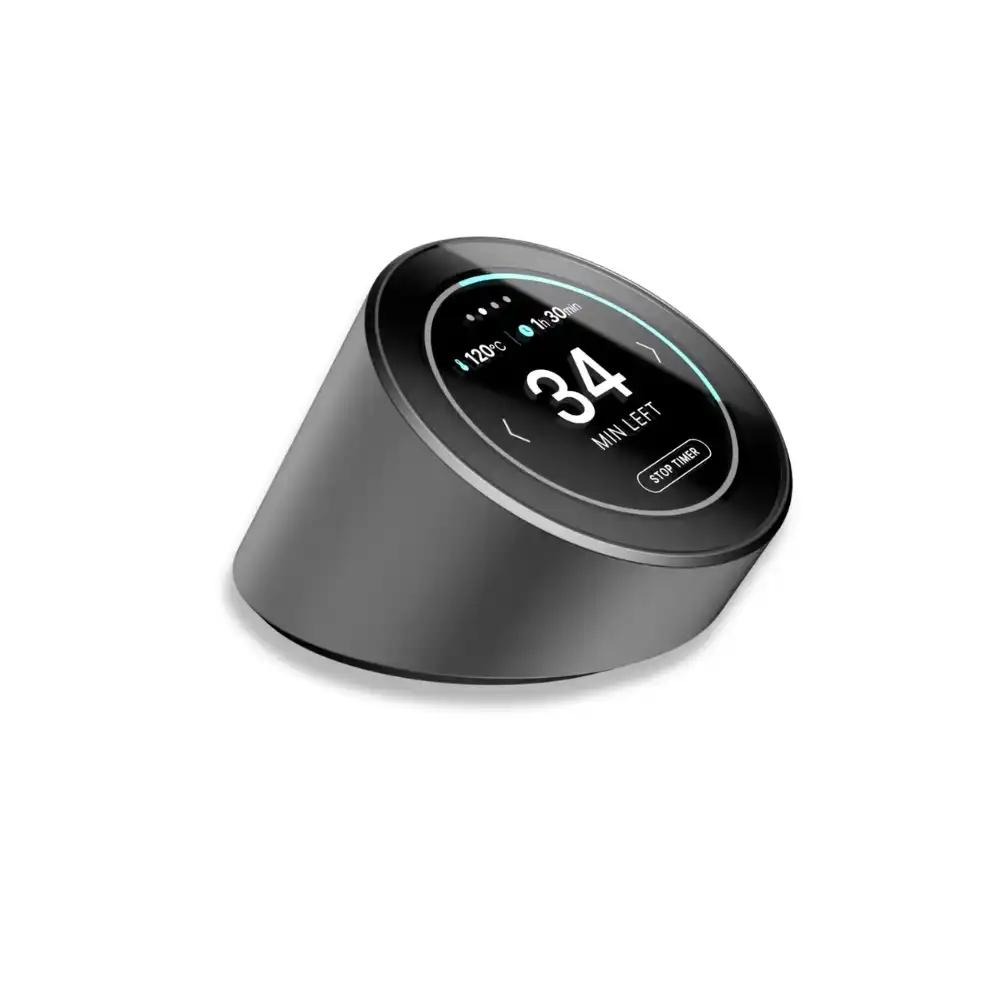

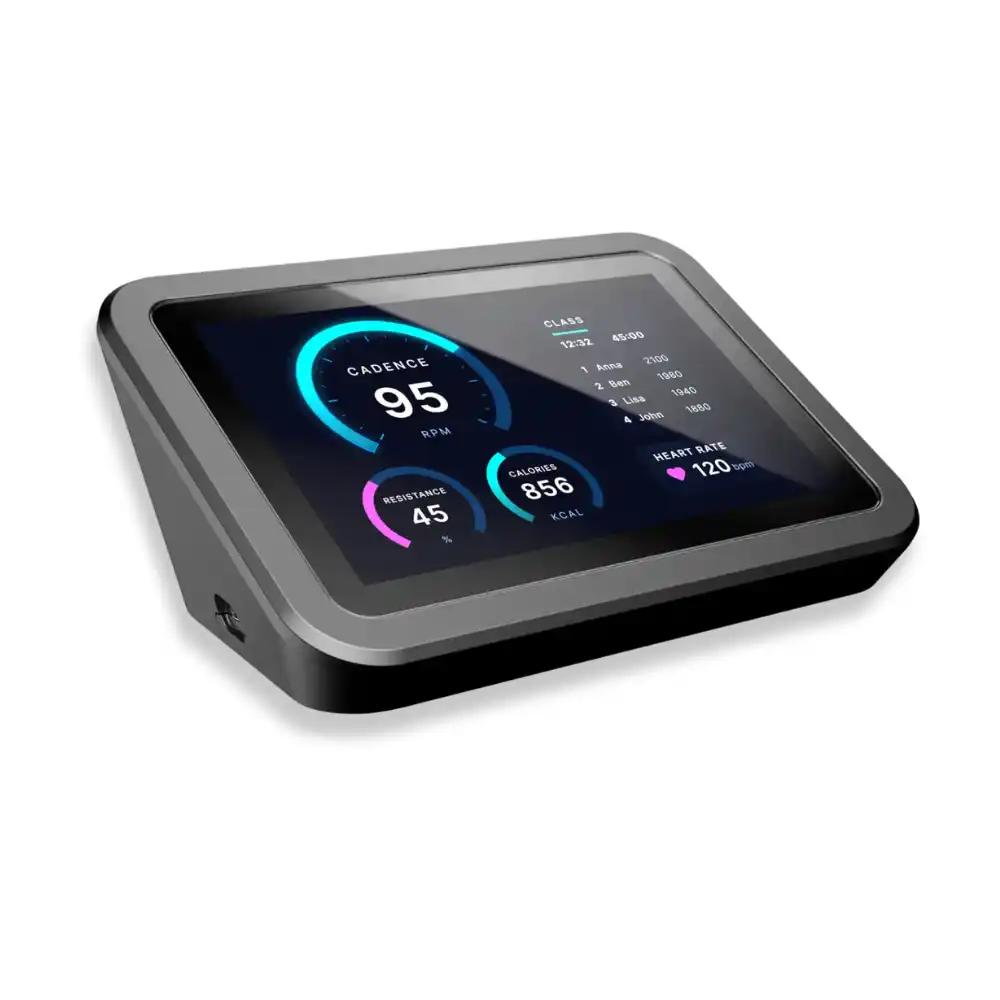

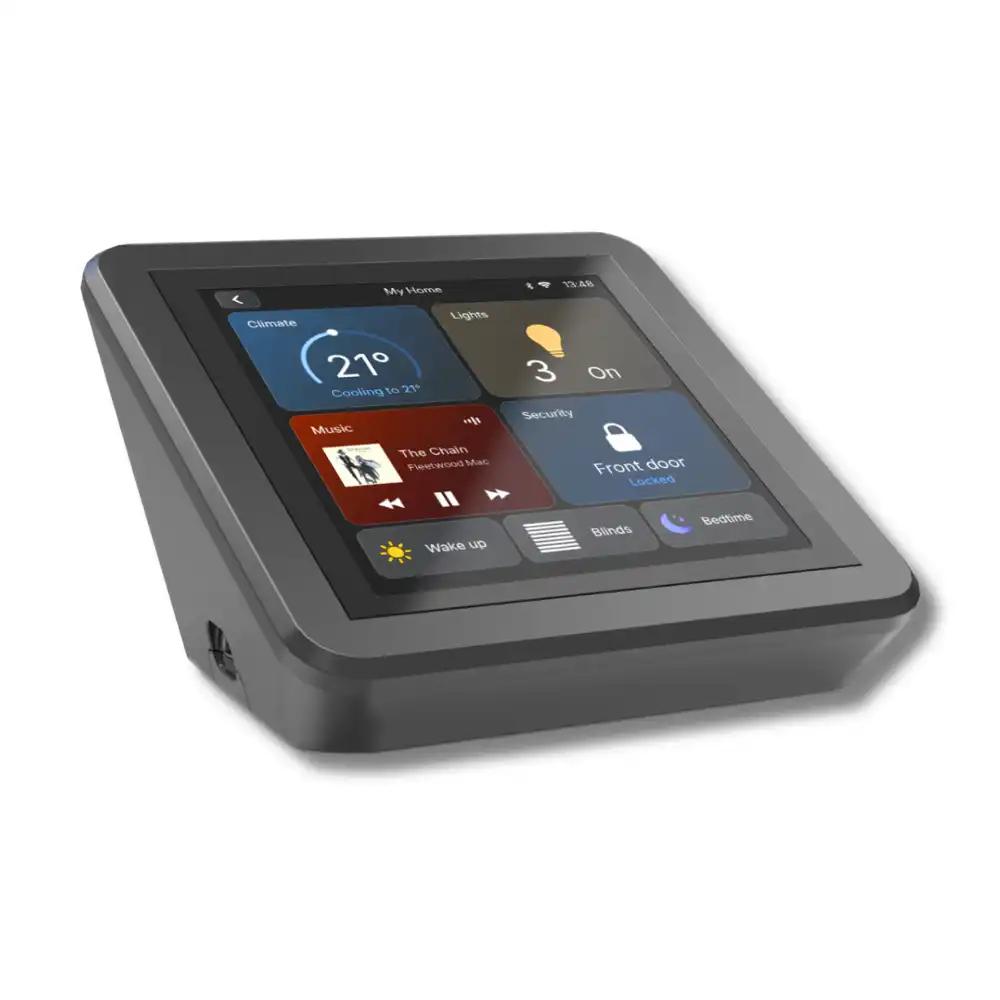

    Rotary Encoder or Capacitive Touchscreen options
  • Complete GUI rendering:
    STM cube package and Anders BSP support

* WiFi/BT available soon

Why STM32?

Design to Delivery!

The DRAGONEYE platform is designed using industrial grade components/schematics and validated code libraries that can be repurposed by Anders, providing a complete sub-assembly for mass production and long-term continuity of supply.

Whether you need a specific display size or shape for your application or are considering a different STM32-MCU configuration, the Anders engineering team can design a platform to get your concept to production in super-quick time.

Built for Industrial Applications

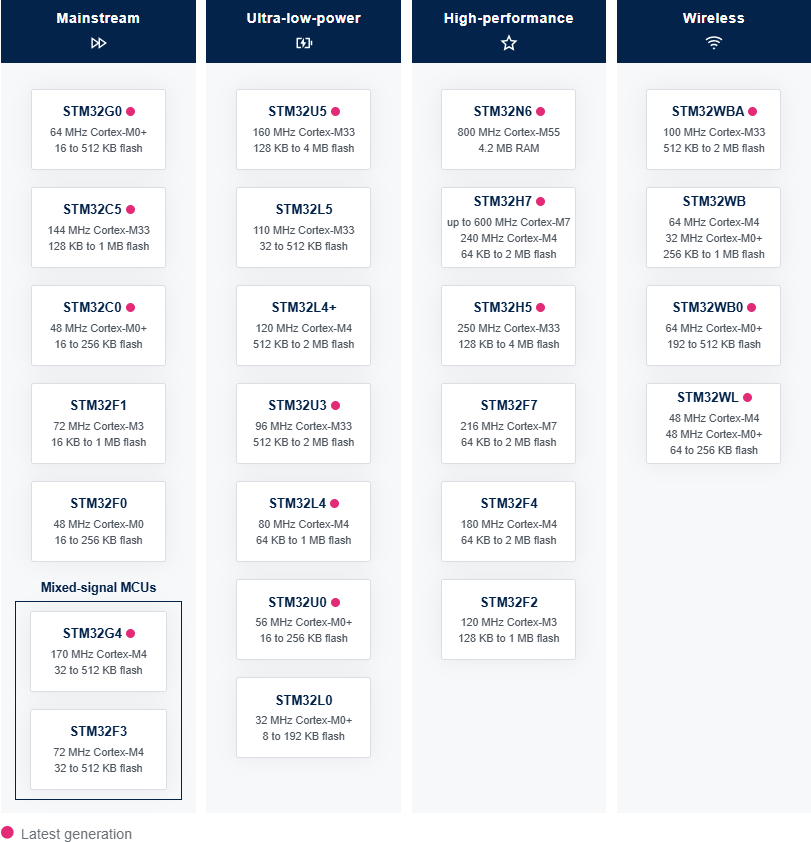

Why STM32 Development Kit?

Thanks to the graphics acceleration, memory integration, advanced display interfaces and smart architecture of STM32 microcontrollers, you can now enrich your applications with a high-end user experience with a limited total cost of ownership.

  • Largest portfolio of advanced graphics running on 32-bit Arm® Cortex® microcontrollers
  • Free, state-of-the-art graphic software and design tools
  • Documentation, reference designs and support center

Programming Tools as standard

With STM32 you have access to a wide range of software tools to streamline your development and bring your ideas to life. This includes development tools, evaluation tools, development environments, embedded software, and more.

Graphical tool for MCU configuration and generating initialisation code.

CubeMX

All-in-one tool for advanced C/C++ development in STM32 ecosystem

CubeIDE

All-in-one tool for programming STM32 products

Programmer

Advanced graphic software framework for creating GUI in a WYSIWYG method

TouchGFX

Run-time monitoring tool to fine-tune and diagnose STM32 applications

CubeMonitor

HMI design enhancements to meet your requirements

Through years of experience working across multiple industries, we provide expert advice and assistance. From board design and mechanical integration, to interface design in compliance with environmental and electrical compliance requirements.

Embedded Board Design

Embedded Board Design

Custom board design of any shape or size to your exact application specifications.

Coverlens Design

Coverlens Design

From shape, size glass material and thickness to hidden til lit icons and printing, make your product stand out.

Touch and Firmware

Touch and Firmware

Optimum touch ICs and firmware tuning for flawless performance including gloved touch and water rejection.

Software Integration

Software Integration

Support for display initialisation, porting (touch) drivers, enabling hardware control and more.

Mechanical Integration

Mechanical Integration

Display and embedded integration: enclosures, mounting holes, gaskets, cable assembly and more

Order Your Development Kit Now!

If you would like to order a kit or discuss your specific needs, please contact us and we will be happy to help!
