IoT Gateways

Capable, compact, customisable, affordable: our IoT Gateway PCs are designed for Internet of Things connectivity, remote control and monitoring applications. ​

View Products

No Fans

All our IOT Gateways PCs are all Fanless. The heat generated by the CPU (mainly) and the GPU is not dissipated by fans but thanks to a clever design. This is why this technology is called passive cooling.

The full die cast aluminium case is working as a heat sink itself, enabling the heat to disperse safely and the PC will run perfectly. There are many advantages of this, the first one being industrial reliability.

Since the day we entered the computing market, we have specialised in Fanless PCs. As a result, we have had years of technological research around heat dissipation, air cooling, low power consumption, remote monitoring and communication protocol solution based products.

Products Design Services

Industrial Reliability

Being fanless enables our PCs to address challenging environments and industrial needs. They are fearless of dust, humidity, corrosion, cooling issues and will work safely in temperatures below 0°C. Highly recommended for:

  • extreme temperatures (-40°C to +85°C)
  • high humidity rates (up to 90%)
  • dusty/dirty environments
  • enclosed applications
  • in-vehicle systems
  • space constrained designs

Warranty

All our Industrial IOT Gateways come with a 5-Year warranty which includes full support, technical expertise and life cycle management. We aim to be a real partner and to provide reliable solutions and long-term services.

This also shows you how confident we are about the reliability of our offering of Gateways Pc.

Low power consumption

Our IOT fanless Gateways are powered by dual or quad core mobile CPUs. They have a tiny footprint and draw little power consumption starting from 5W for our micro range and from 15W for our mini PC range.

They are your best choice whenever low processing performance is needed, especially as firewall, CCTV client, thin client as well as for remote controlling, 24/7 operations and M2M communications.

Thanks to their in-depth knowledge and experience, our engineers can help you optimise your power consumption through advanced configuration & settings (Cores, TDP, Wake on Timer...).

Software Support

All our IOT Gateways are provided with a full BSP and ready-to-run images for the Linux and Android operating systems.

In addition, we have a team of software engineers who are on hand to give advice and assistance for Linux or Windows based Operating systems. They can can help with display initialisation, porting (touch) drivers, enabling hardware control and more. Learn more about our Software Services.

Software Services

Our ARM and Broadcom IoT Gateways

Our Fanless, ARM & Broadcom powered gateway PCs are designed for Internet of Things connectivity and remote control and monitoring applications. They have been carefully selected by our engineering lab and are highly customisable to meet your exact project requirements. These ultra small, rugged and affordable PCs come with a 5-Year Warranty & full support

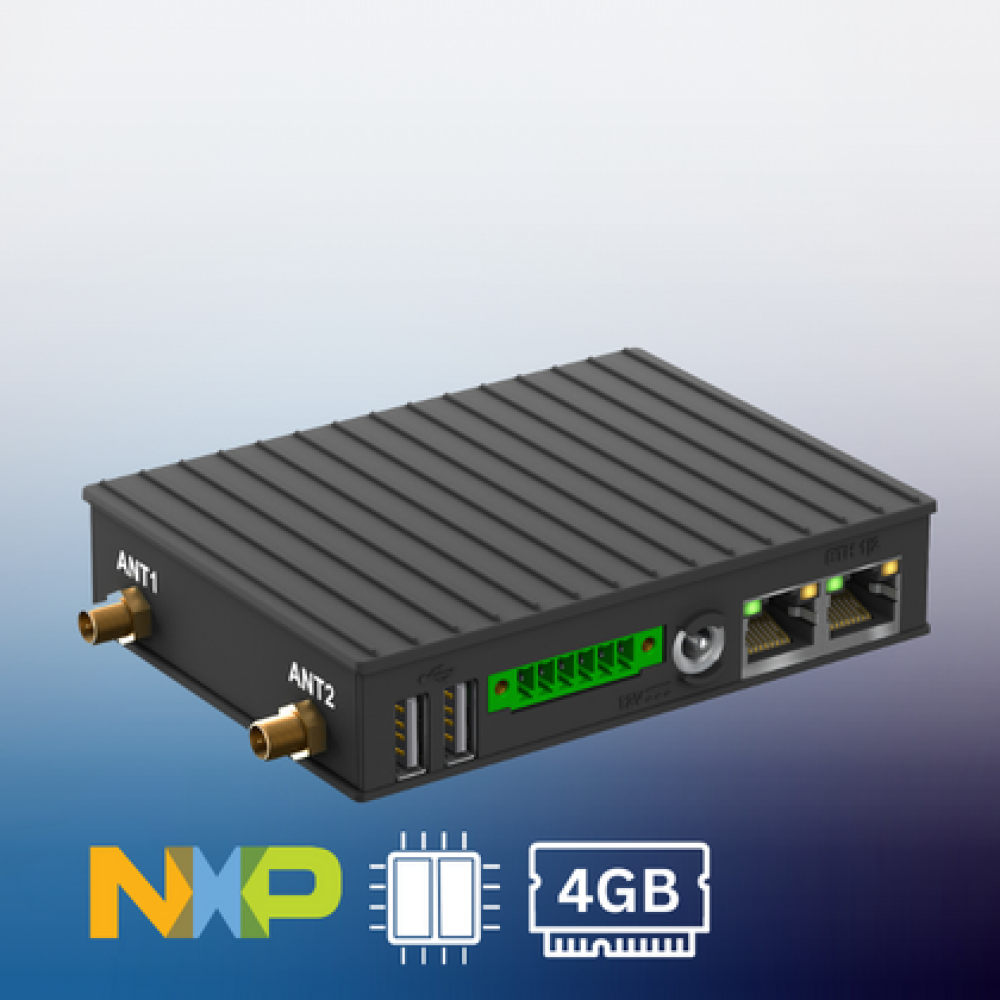

IOT-GATE-iMX8: Industrial IoT Gateway PC

ARM
A53
4GB
  • NXP i.MX8M-Mini CPU, quad-core Cortex-A53
  • Up-to 4GB RAM and 64GB eMMC
  • LTE modem, WiFi 802.11ax, Bluetooth 5.1
  • 2x Ethernet, 3x USB2, RS485 / RS232, CAN-FD
  • Custom I/O expansion boards
  • OS Support: Debian Linux, Yocto Project and U-Boot
  • Also available as System-on-Module and SBC

IOT-GATE-iMX7: Industrial IoT Gateway PC

ARM
A7
2GB
  • Dual Core ARM Cortex A7 @1GHz
  • NEON SIMD and VFPv4
  • Up to 2GB DDR3L and 32GB eMMC
  • DVI up to 1920 x 1080
  • 3G Cellular Modem, GbE x 2, WiFi, BT, Mini-PCIe, USB2 x 5, GPIO x 12, POE
  • OS Support: Linux/Linux Yocto
  • Also available as System-on-Module and SBC

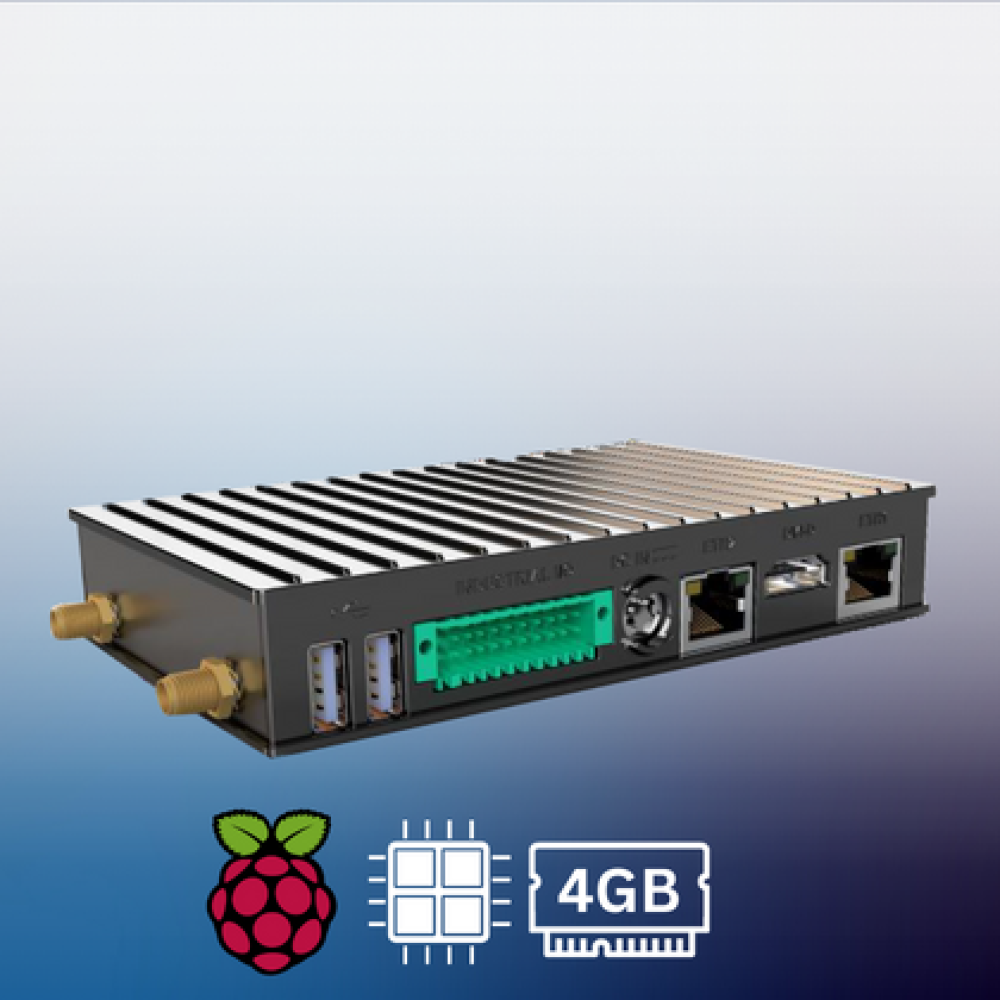

IOT-GATE-RPi: Industrial IoT Gateway PC

ARM
A53
2GB
  • Quad-core Cortex-A53 Broadcom @1.2GHz
  • 1GB LPDDR2 and up-to 64GB eMMC
  • 3G/LTE modem and WiFi b/g/n
  • 2x Ethernet, 4x USB2, RS485, RS232, CAN
  • Miniature size – 112 x 84 x 25 mm
  • OS Support: Raspbian Linux and Ubuntu Core
  • Custom I/O expansions with RPi HAT add-ons

IOT-GATE-iMX8: Industrial IoT Gateway PC

IOT-GATE-iMX7: Industrial IoT Gateway PC

IOT-GATE-RPi: Industrial IoT Gateway PC

CPU

CPU Architecture

ARM Cortex A-53
ARM Cortex A7
Cortex-A53 Quad-core

CPU Model

i.MX8M Mini, quad-core
i.MX7 Dual Core
Broadcom BCM2837

CPU Frequency

1.8GHz
1GHz
1.2 GHz

Real Time Co-Processor

Yes
Yes
Yes

Memory

Memory

Up to 4GB, LPDDR4
Up to 2GB DDR3L
Up to 1GB LPDDR2

Primary Onboard Storage

Up to 64GB eMMC flash, soldered on-board
Up to 32GB eMMC/NAND
Up to 64GB eMMC

Secondary Onboard Storage

Up to 64GB eMMC flash, optional module

Display

Display Interface

HDMI
HDMI

Display Resolution (Max)

1920x1080
1920x1080

I/O

Ethernet Ports

Up to 2
Up to 2
Up to 2

WIFI

802.11ax
*802.11a/b/g/n
*802.11 b/g/n

Cellular

4G/LTE CAT1 cellular module, Simcom SIM7600G (via mini-PCie socket)
On-board micro-SIM card socket
3G cellular module, Simcom SIM5360 (EU bands)
4G/LTE cellular module, Simcom SIM7100E (EU bands)
4G/LTE cellular module, Simcom SIM7100A (US bands)
On board micro-SIM card socket
3G cellular module*
4G/LTE cellular module*
On-board micro-SIM card socket

USB 2.0 Ports Host

Up to 3
Up to 4
Up to 4

UART/Serial

Up to 2
Up to 3
1x RS232 port

PCIe

Up to 2
Up to 1 (Gen 2.1)

I2C

Up to 1
1

GPIO

Up to 12
Up to 12

SPI

Up to 2
1

CAN

1 x CAN bus, RJ11 connector*

RS485

1x RS485 port, half-duplex 2-wire, RJ11 connector*

Expansion

Up-to 2x CAN-FD / RS485 / RS232, isolated, terminal-block connector
4x digital inputs + 4x digital outputs, isolated, terminal-block connector
RPI HAT expansion interface

Digital I/O

6x DIO*

Electrical & Mechanical

Power Supply Voltage

Unregulated 8V to 36V
8V-24V
10V-36V

Dimensions

112 x 84 x 25 mm
108 x 83 x 24 mm
112 x 84 x 25 mm

Operating Temperature

Commercial: 0° to 60° C
Extended: -20° to 60° C
Industrial: -40° to 80° C
Commercial: 0° to 70° C
Extended: -20° to 70° C
Industrial: -40° to 85° C
Commercial: 0° to 60° C
Extended: -20° to 60° C
Industrial: -40° to 80° C.

Software

OS Support

Debian Linux, Yocto Project and U-Boot
Linux/Linux Yocto
Raspbian Linux and Ubuntu Core

* Optional feature available on this product

Optimise
Your Processor

  • Custom Memory configuration
  • Tailored I/O Functionality
  • Software Support
  • Board Support Package
  • PCB Layout
  • Mechanical Integration
Our Design Services

Let's get started on your project

We aim to offer reliable and long-term solutions to our B2B customers. If you are a business and would like to discuss your display and/or embedded system requirements please contact us below
