TFT LCD Displays

Take your design to the next level with our range of TFT Displays including latest IPS TFT, circular and bar shape as well as large size TFT. With or without touch, these are fully customisable to your system requirements.

View Products

Which TFT Display Solution is best for my design?


TN TFT Displays

TFT-LCD technology is now fairly mature. As a result, manufacturing processes are efficient and production yields are high, leading to very competitive unit prices. Upgrading from a monochrome display to a TFT is now an affordable way to give your product an uplift.

Learn More

IPS TFT Displays

Users of industrial display devices are wanting the same experience they have come to expect from a consumer device with all-round viewing angles. Switching to a superior IPS TFT display has become very cost effective as production increases and unit prices decrease.

Learn More

TFTs in all Shapes and Sizes

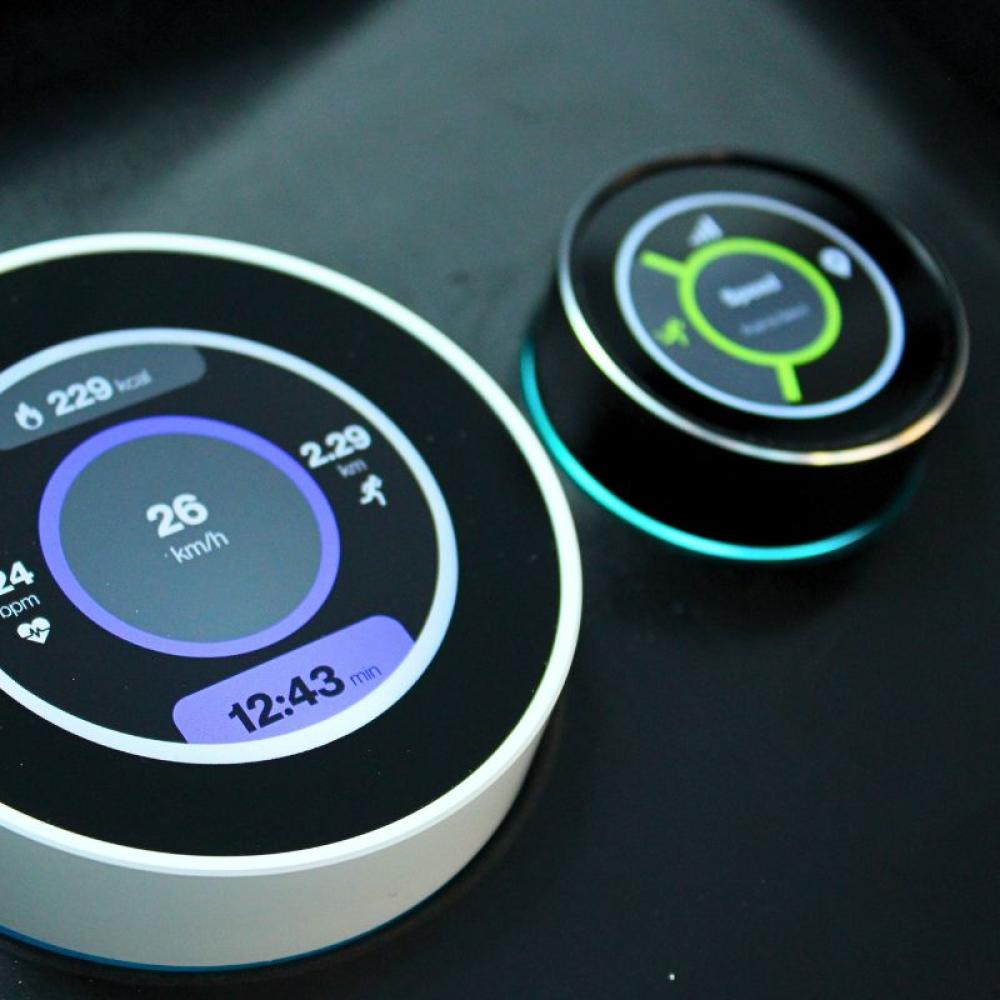

Circular Displays

Choosing a circular display for your next product design could really set you apart from your competition. Models are available from 1" to 4.2" in TFT, PMOLED and AMOLED, we have something to suit every application.

Learn More

Bar TFT Displays

It is now possible to transform from a monochrome display to a colour display in space constrained systems by using a letterbox shaped display. These ultra-wide displays are ideal for applications with restricted build height such as rack mount systems or landscape format front panels.

Learn More

Large TFTs

Large TFT display systems are increasingly being used for transportation information, retail signage and vending machines and kiosks. We can supply a large range of TFT solutions up to 65" diameter and in bar-style, square or rectangular configurations.

Learn More

Latest Display Design Services


Kastus® Antimicrobial & Antiviral surface coating tested against Coronavirus

Anders have partnered with world leading brand Kastus® to offer a globally patented antimicrobial & antiviral surface coating which has a proven kill rate of up to 99.99% against harmful bacteria, fungi and antibiotic-resistant superbugs, which makes it particularly useful for products including glass and ceramics. This year, an independent testing report found Kastus to be effective against human Coronavirus on screens.

Learn More

Driving your Display


Choosing the right embedded system

Here at Anders we don't just strive to design a best in class display solution for your product, but we also want to make sure the display is driven with the right embedded system. We can help achieve a hardware solution that ensures your display works perfectly within your application. Hardware solutions include:

Embedded Solutions

Embedded Display Kits

Get started quickly on your new user interface with our Embedded Display evaluation kits. The display, the processor and the OS work together out of the box with optimised QT GUI images. We'll then optimise the kit to meet exactly your system requirements with our design services.

Learn More

HDMI Displays

Our range of HDMI TFT displays is available in size from 5'' to 23'' and offers a a quicker solution to take and test your product idea in the market.

HDMI displays cut down the time it takes from concept to commerce, one of the main drivers in the electronic industry.

Learn More

Displays
Making an impact

At Anders we understand that no two customers are the same, which is why we specialise in custom display solutions and offer unique products tailored to your end application.

  • Custom Cover Glass
  • Optical Bonding
  • Films and filters
  • Touchscreen
  • Backlight enhancements
  • Bespoke Embedded Drivers
  • Software Optimisation
  • Mechanical Integration
Our Design Services

Our TFT display range


See below our range of TFT Displays with sizes ranging from 0.96" to 64.5" and including circular and bar type shape. All our displays can be tailored to suit your application with our Design Services, from optical performance enhancements and antimicrobial coating technology, right through to mechanical integration.

Get in touch with our team for information about samples and pricing.

0.96" Colour TFT LCD IPS Display

YTS096LAB-02-100N

IPS-TFT
0.96"
Touch
400
SPI
  • Screen Size: 0.96"
  • Aspect Ratio: 1:2
  • Viewing Angle: All round - IPS
  • Touch Options: CTP, RTP, None
  • Module size: 13.8 x 28 x 1.9mm
  • Resolution: 80 (RGB) x 160
  • Brightness: 400cd/m2
  • Interface: SPI

1.1" Square TFT LCD Display

TFT2P2083-V1-E

TN-TFT
1.1"
Touch
440
SPI
  • Screen Size: 1.1"
  • Apect Ratio: 1:1
  • Full Viewing Angle
  • Touch Options: CTP, RTP, None
  • Module size: 25.4 x 28.2 x 2.5mm
  • Resolution: 96 (RGB) x 96
  • Brightness: 440cd/m2
  • Interface: SPI

1.22'' Circular TFT LCD Display

TFT240206-3-E

TN-TFT
1.2"
Touch
210
SPI
  • Screen Size: 1.22"
  • Aspect Ratio: 1:1
  • Touch Options: CTP, None
  • Viewing Angle from 5:00 to 7:00
  • Module size: 33.8 x 33.1 x 1.54 mm
  • Resolution: 240 x 206
  • Brightness: 210 cd/m2
  • Interface: SPI

1.26'' Circular TFT LCD Display

TFT320320-5-E

TN-TFT
1.3"
Touch
300
SPI
MIPI
  • Screen Size: 1.26"
  • Aspect Ratio: 1:1
  • Viewing Angle: 6 o'clock
  • Touch Options: CTP, None
  • Module size: 35.4 ×40 × 1.5 mm
  • Resolution: 320 x 320
  • Brightness: 300 cd/m2
  • Interface: SPI & MIPI

1.38'' Circular TFT Display

TFT220220-2-E

TN-TFT
1.38"
Touch
340
8080 / 6800
  • Screen Size: 1.38"
  • Aspect Ratio: 1:1
  • Touch Options: CTP, None
  • Viewing Angle: 6 o'clock
  • Module size: 42.4 ×46.9 × 2.5 mm
  • Resolution: 220 x 220
  • Brightness: 340 cd/m2
  • Interface: Parallel 8080/6800

1.44" Square TFT LCD Display

TFM11502A

TN-TFT
1.44"
Touch
120
SPI
  • Screen Size: 1.44"
  • Aspect ratio: 1:1
  • Viewing Angle: 6 o’clock
  • Touch Options: CTP, RTP, None
  • Module size: 33 x 54.6 x 2.7mm
  • Resolution: 128 (RGB) x 128
  • Brightness: 120cd/m2
  • Interface: SPI

1.45" Colour TFT LCD Display

TFT240320-303-E

TN-TFT
1.45"
Touch
420
SPI
  • Screen Size: 1.45"
  • Aspect ratio: 1:1
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 26.3 x 35.7 x 1.3mm
  • Resolution: 240 (RGB) x 320
  • Brightness: 420cd/m2
  • Interface: SPI

1.54" Square TFT LCD IPS Display

YTS154LAA-01-100N

IPS-TFT
1.54"
Touch
430
  • Screen Size: 1.54"
  • Aspect Ratio: 1:1
  • Viewing Angle: All round - IPS
  • Touch Options: CTP, RTP, None
  • Module size: 31.8 x 33.7 x 1.5 mm
  • Resolution: 240 (RGB) x 240
  • Brightness: 430 cd/m2
  • Interface: SPI / RGB

1.77" Colour TFT LCD Display

TFT128160-160-E

TN-TFT
1.77"
Touch
600
SPI
  • Screen Size: 1.77"
  • Aspect Ratio: 4:5
  • Viewing Angle: 6 o'clock
  • Touch Options: CTP, RTP, None
  • Module size: 34.7 x 46.7 x 2.6 mm
  • Resolution: 128 (RGB) x 160
  • Brightness: 600cd/m2
  • Interface: SPI

1.82" Colour Square TFT LCD Display

YTC176176LAA-020-100N

TN-TFT
1.82"
Touch
150
8080 / 6800
SPI
  • Screen Size: 1.82"
  • Aspect Ratio: 1:1
  • Viewing Angle: 6 o'clock
  • Touch Options: CTP, RTP, None
  • Module size: 38.0 x 51.8 x 2.4 mm
  • Resolution: 176 (RGB) x 176
  • Brightness: 150cd/m2
  • Interface: 8080/6800 / SPI

2.0" Colour TFT LCD Display

TFM9892C

TN-TFT
2"
Touch
285
8080 / 6800
  • Screen Size: 2.0"
  • Aspect Ratio: 4:5
  • Viewing Angle: 6 o'clock
  • Touch Options: CTP, RTP, None
  • Module size: 38.0 x 92.8 x 2.9 mm
  • Resolution: 176 (RGB) x 220
  • Brightness: 285cd/m2
  • Interface: Parallel 8080/6800

2.0" IPS TFT LCD Display

YTS200DLAF-01-100N

IPS-TFT
2"
Touch
530
  • Screen Size: 2.0"
  • Aspect Ratio: 4:3
  • Viewing Angle: All round - IPS
  • Touch Options: CTP, RTP, None
  • Module size: 35.6 x 48.7 x 2.5 mm
  • Resolution: 240 (RGB) x 320
  • Brightness: 530 cd/m2
  • Interface: Parallel 8080/6800 / RGB

2.4" Colour TFT LCD Display

TFM12197B

TN-TFT
2.4"
Touch
220
RGB
  • Screen Size: 2.4"
  • Aspect Ratio: 4:3
  • Viewing Angle: 6 o'clock
  • Touch Options: CTP, RTP, None
  • Module size: 42.32 x 61.16 x 2.7 mm
  • Resolution: 240 (RGB) x 320
  • Brightness: 220cd/m2
  • Interface: RGB

2.4" Colour TFT LCD IPS Display

YTC240DLBR-04-100N

IPS-TFT
2.4"
Touch
500
  • Screen Size: 2.4"
  • Aspect Ratio: 4:3
  • Viewing Angle: All round - IPS
  • Touch Options: CTP, RTP, None
  • Module size: 42.4 x 58.8 x 3.3 mm
  • Resolution: 240 (RGB) x 320
  • Brightness: 500cd/m2
  • Interface: RGB

2.8" IPS TFT LCD Display

YTS280DLAY-01-100N

IPS-TFT
2.8"
Touch
210
8080 / 6800
  • Screen Size: 2.8"
  • Aspect Ratio: 4:3
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 50.0 x 69.2 x 2.75 mm
  • Resolution: 240 (RGB) x 320
  • Brightness: 210 cd/m2
  • Interface: 8080/6800

2.95" Letterbox IPS TFT LCD Display

YTC320124LAC-035-100N

IPS-TFT
2.95"
Touch
350
RGB
  • Screen Size: 2.95"
  • Viewing Angle: All round - IPS
  • Touch Options: CTP, RTP, None
  • Module size: 77.4 x 39.5 x 3.9 mm
  • Resolution: 320 (RGB) x 124
  • Brightness: 350cd/m2
  • Interface: RGB

3.0" Circular Colour TFT LCD Display

FG030090DSSWMG01

TN-TFT
3"
Touch
1000
RGB
  • Screen Size: 3.0"
  • Aspect Ratio: 1:1
  • Viewing Angle: All wide
  • Touch Options: CTP, None
  • Module size: 79.8 x 84 x 5.65
  • Resolution: 432 (RGB) x 432
  • Brightness: 1000cd/m2
  • Interface: RGB

3.1" Colour Square TFT LCD Display

YTS480480LAA-043-100C

TN-TFT
3.1"
Touch
470
MIPI
  • Screen Size: 3.1"
  • Aspect Ratio: 1:1
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 62.6 x 71.8 x 3.7mm
  • Resolution: 480 (RGB) x 480
  • Brightness: 470cd/m2
  • Interface: MIPI

3.2" Colour TFT LCD Display

YTS320HLAE-01-100N

TN-TFT
3.2"
Touch
400
8080 / 6800
  • Screen Size: 3.2"
  • Aspect Ratio: 10:15
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 54.5 x 84.7 x 2.28mm
  • Resolution: 320 (RGB) x 480
  • Brightness: 220cd/m2
  • Interface: Parallel 8080/6800

3.5" Colour IPS TFT LCD Display

YTS350MLAE-01-100N

IPS-TFT
3.5"
Touch
290
  • Screen Size: 3.5"
  • Aspect Ratio: 4:3
  • Viewing Angle: All round - IPS
  • Touch Options: CTP, RTP, None
  • Module size: 76.9 x 63.9 x 3.3 mm
  • Resolution: 640 (RGB) x 480
  • Brightness: 290cd/m2
  • Interfaces: MIPI

3.5" TFT IPS LCD Display

YTS350HLAI-01-100N

IPS-TFT
3.5"
Touch
250
RGB
  • Screen Size: 3.5"
  • Aspect Ratio: 10:15
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 63.3 x 84.7 x 2.3mm
  • Resolution: 320 (RGB) x 480
  • Brightness: 250cd/m2
  • Interface: RGB

3.83" Letterbox Colour TFT LCD Display

YTS430ILAC-04-103N

TN-TFT
3.83"
Touch
480
RGB
  • Screen Size: 3.83"
  • Viewing Angle: 12 o'clock
  • Touch Options: CTP, RTP, None
  • Module size: 105.2 x 34 x 3.6mm
  • Resolution: 480 (RGB) x 107
  • Brightness: 480cd/m2
  • Interface: RGB

4.2" Circular Colour TFT LCD Display

FG040210DSSWMG01

TN-TFT
4.21"
Touch
1000
RGB
  • Screen Size: 4.2"
  • Aspect Ratio: 1:1
  • Viewing Angle: All round
  • Touch Options: CTP, None
  • Module size: 128.50 x 128.50 x 6.30 mm
  • Resolution: 720 (RGB) x 720
  • Brightness: 1000cd/m2
  • Interface: RGB

4.3" Colour TFT LCD Display

YTC430ILAC-01-112N

TN-TFT
4.3"
Touch
500
8080 / 6800
  • Screen Size: 4.3"
  • Viewing Angle: 12 o' clock
  • Touch Options: CTP, RTP, None
  • Module size: 95.1 x 53.9 x 3.95 mm
  • Resolution: 480 (RGB) x 272
  • Brightness: 500 cd/m2
  • Interface: 8080/6800

4.3" WQVGA Colour TFT LCD Display

TFT480272-25-E

TN-TFT
4.3"
Touch
610
RGB
  • Screen Size: 4.3"
  • Aspect Ratio: 4:3
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 105.5 × 67.2 × 2.9 mm
  • Resolution: 480 (RGB) x 272
  • Brightness: 610cd/m2
  • Interface: Parallel RGB

4.3" High Bright IPS TFT LCD Display

YTS430RLAA-01-100N

IPS-TFT
4.3"
Touch
950
RGB
  • Screen Size: 4.3"
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 105.4 x 67.1 x 3.2 mm
  • Resolution: 800 (RGB) x 480
  • Brightness: 950cd/m2
  • Interface: RGB

4.3" Colour TFT LCD Display

YTS430ILAG-01-100N

TN-TFT
4.3"
Touch
420
RGB
  • Screen Size: 4.3"
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 105.5 x 67.2 x 3.9 mm
  • Resolution: 480 (RGB) x 272
  • Brightness: 420cd/m2
  • Interface: RGB

5.0" PCAP TFT LCD Display

YTS500ZLAA-01-100C

TN-TFT
5"
Touch
230
MIPI
  • Screen Size: 5.0"
  • Aspect Ratio: 1:2
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 72.0 x 143.98 x 3.25 mm
  • Resolution: 1080 (RGB) x 1920
  • Brightness: 230 cd/m2
  • Interface: MIPI

5.0" IPS TFT LCD Display

YTS500RLAY-01-100N

IPS-TFT
5"
Touch
380
  • Screen Size: 5.0"
  • Aspect Ratio: 5:3
  • Viewing Angle: All round - IPS
  • Touch Options: CTP, RTP, None
  • Module size: 118.5 x 77.5 x 3.2 mm
  • Resolution: 800 (RGB) x 480
  • Brightness: 380cd/m2
  • Interface: RGB

5.0" IPS TFT LCD PCAP Touch Display

YTS500XLAH-01-100C

IPS-TFT
5"
Touch
300
  • Screen Size: 5.0"
  • Aspect Ratio: 16:9
  • Viewing Angle: All round - IPS
  • Touch Options: CTP, RTP, None
  • Module size: 72.0 x 143.9 x 3.6 mm
  • Resolution: 720 (RGB) x 1280
  • Brightness: 300cd/m2
  • Interface: MIPI

5.0" HDMI TFT LCD Display with PCAP mini-USB Touch

YTS500RLAU-04-100C

TN-TFT
5"
Touch
310
HDMI
  • Screen Size: 5.0"
  • Aspect Ratio: 5:3
  • Viewing Angle: 12 o'clock
  • Touch Options: CTP, RTP, None
  • Module size: 108.0 x 64.8 x 5.5 mm
  • Resolution: 800 (RGB) x 480
  • Brightness: 310cd/m2
  • Interface: HDMI

5.5" IPS Colour PCAP TFT LCD Display

YTS550XLAB-02-100C

IPS-TFT
5.5"
Touch
350
MIPI
  • Screen Size: 5.5"
  • Aspect Ratio: 16:9
  • Viewing Angle: all round
  • Touch Options: CTP, RTP, None
  • Module size: 73 x 153.17 x 3.1mm
  • Resolution: 720 (RGB) x 1280
  • Brightness: 350cd/m2
  • Interface: MIPI

5.7'' Colour TFT LCD Display Module

FG050720DSSWDG01

TN-TFT
5.7"
Touch
400
RGB
  • Screen Size: 5.7"
  • Aspect Ratio: 4:3
  • Viewing Angle: 12 o'clock
  • Touch Options: CTP, RTP, None
  • Module size: 127 x 98.4 x 7mm
  • Resolution: 640 (RGB) x 480
  • Brightness: 400cd/m2
  • Interface: RGB

5.7'' Colour TFT LCD Display Module with wide viewing angles

SCX0507116GGU07

TN-TFT
5.7"
Touch
450
RGB
  • Screen Size: 5.7"
  • Aspect Ratio: 4:3
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 143 x 113 x 9 mm
  • Resolution: 640 (RGB) x 480
  • Brightness: 450cd/m2
  • Interface: RGB

6.5" Letterbox TFT Display

YTS800320LAA-070-100N

TN-TFT
6.5"
Touch
300
RGB
  • Screen Size: 6.5''
  • Aspect Ratio: 5:2
  • Viewing Angle: 12 o'clock
  • Touch Options: CTP, RTP, None
  • Module size: 164.9 x 72.86 x 3.8 mm
  • Resolution: 800 (RGB) x 320
  • Brightness: 300/m2
  • Interface: RGB

7.0" High Bright HDMI TFT with PCAP

YTS700RLBD-02-100C

TN-TFT
7"
Touch
870
HDMI
  • Screen Size: 7.0"
  • Aspect Ratio: 16:9
  • Viewing Angle: 12 o'clock
  • Touch Options: CTP, RTP, None
  • Module size: 181.08 x 112.92 x 10.77mm
  • Resolution: 800 (RGB) x 480
  • Brightness: 870cd/m2
  • Interface: HDMI

7.0" High Bright PCAP TFT Display

LCX0700313GGU25

TN-TFT
7"
Touch
1000
LVDS
  • Screen Size: 7.0''
  • Aspect Ratio: 2:3
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 187 x 124 x 8 mm
  • Resolution: 800 (RGB) x 1280
  • Brightness: 1000cd/m2
  • Interface: LVDS

7.0" IPS PCAP TFT LCD Display

YTS700WLAG-01-100C

IPS-TFT
7"
Touch
300
MIPI
  • Screen Size: 7.0"
  • Aspect Ratio: 16:10
  • Viewing Angle: all round
  • Touch Options: CTP, RTP, None
  • Module size: 112.92 x 181.08 x 4.68mm
  • Resolution: 800 (RGB) x 1280
  • Brightness: 300cd/m2
  • Interface: MIPI

7.0" IPS HDMI TFT LCD Display with PCAP mini-USB Touch

YTS700TLAT-02-100C

IPS-TFT
7"
Touch
750
HDMI
  • Screen Size: 7.0"
  • Aspect Ratio: 128:75
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 181.08 x 112.92 x 9.27mm
  • Resolution: 1024 (RGB) x 600
  • Brightness: 750cd/m2
  • Interface: HDMI

7.0" WSVGA PCAP TFT LCD Display with Industrial grade IC

YTS700TLAW-01-200C

TN-TFT
7"
Touch
780
LVDS
  • Screen Size: 7.0"
  • Aspect Ratio: 128 : 75
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None - Industrial Grade IC available
  • Module size: 181.08 x 112.92 x 5.65 mm
  • Resolution: 1024 (RGB) x 600
  • Brightness: 780cd/m2
  • Interface: LVDS

7.0" WVGA PCAP IPS TFT Display with extended temperature range

YTS700RLBF-02-100N

IPS-TFT
7"
Touch
900
RGB
  • Screen Size: 7.0"
  • Aspect Ratio: 16:9
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 170 x 106.3 x 6.65 mm
  • Resolution: 800 (RGB) x 480
  • Brightness: 900cd/m2
  • Interface: RGB

8.0" IPS TFT LCD Display

YTS800WLAC-01-100N

IPS-TFT
8"
Touch
300
MIPI
  • Screen Size: 8.0"
  • Aspect Ratio: 16:9
  • Viewing Angle: all round
  • Touch Options: CTP, RTP, None
  • Module size: 114.6 x 184.1 x 2.58mm
  • Resolution: 800 (RGB) x 1280
  • Brightness: 300cd/m2
  • Interface: MIPI

8.0" XGA TFT LCD Display with wide viewing angles

YTS800VLAO-01-100N

TN-TFT
8"
Touch
350
LVDS
  • Screen Size: 8.0"
  • Aspect Ratio: 4:3
  • Viewing Angle: all round
  • Touch Options: CTP, RTP, None
  • Module size: 174 x 136 x 2.4 mm
  • Resolution: 1024 (RGB) x 768
  • Brightness: 350cd/m2
  • Interface: LVDS

8.4" SVGA Colour TFT Display

FG080421DSSWDG01

TN-TFT
8.4"
Touch
400
LVDS
  • Screen Size: 8.4"
  • Aspect Ratio: 4:3
  • Viewing Angle: 12 o'clock
  • Touch Options: CTP, RTP, None
  • Module size: 203 x 145.9 x 5.7mm
  • Resolution: 800 (RGB) x 600
  • Brightness: 400cd/m2
  • Interface: LVDS

9.0" PCAP TFT Display

SCX0900255GGU01

TN-TFT
9"
Touch
420
RGB
  • Screen Size: 9.0"
  • Aspect Ratio: 5:3
  • Viewing Angle: 6 o'clock
  • Touch Options: CTP, RTP, None
  • Module size: 224.9 x 136.8 x 13.9mm
  • Resolution: 800 (RGB) x 480
  • Brightness: 420cd/m2
  • Interface: RGB

9" IPS Bar TFT/ Letterbox Display with extended temperature range

YTS1280240LAA-101-100N

IPS-TFT
9"
Touch
600
LVDS
  • Screen Size: 9''
  • Aspect Ratio: 16:3
  • Viewing Angle: All round - IPS
  • Touch Options: CTP, RTP, None
  • Module size: 237 x 58.95 x 4 mm
  • Resolution: 1280 (RGB) x 240
  • Brightness: 600/m2
  • Interface: LVDS

10.1" HDMI IPS TFT Display with PCAP mini-USB Touch

YTSA10WLAI-03-201C

TN-TFT
10.1"
Touch
800
HDMI
IPS
  • Screen Size: 10.1"
  • Aspect Ratio: 4:3
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 304 × 165 × 11.5mm
  • Resolution: 1280 (RGB) x 800
  • Brightness: 800cd/m2
  • Interface: HDMI

10.1" Colour IPS TFT Display

YTSA10WLAH-05-100C

IPS-TFT
10.1"
Touch
1000
LVDS
  • Screen Size: 10.1"
  • Aspect Ratio: 4:3
  • Viewing Angle: All round - IPS
  • Touch Options: CTP, RTP, None
  • Module size: 255 x 178 x 6.75 mm
  • Resolution: 1280 (RGB) x 800
  • Brightness: 380cd/m2
  • Interface: LVDS

10.1" WSVGA PCAP Colour TFT Display

YTSA10TLAA-02-100C

TN-TFT
10.1"
Touch
340
RGB
  • Screen Size: 10.1"
  • Aspect Ratio: 128:75
  • Viewing Angle: 12 o' clock
  • Touch Options: CTP, RTP, None
  • Module size: 235 x 143 x 8 mm
  • Resolution: 1024 (RGB) x 600
  • Brightness: 340cd/m2
  • Interface: RGB

12.1" PCAP TFT LCD Display

SCF1201300FGC03

TN-TFT
12.1"
Touch
420
LVDS
  • Screen Size: 12.1"
  • Aspect Ratio: 4:3
  • Viewing Angle: 6 o'clock
  • Touch Options: CTP, RTP, None
  • Module size: 290 x 220.5 x11.6 mm
  • Resolution: 1024 (RGB) x 768
  • Brightness: 420cd/m2
  • Interface: LVDS

12.1" High Brightness TFT Display

FG120111DSSWBG01

TN-TFT
12.1"
Touch
600
  • Screen Size: 12.1"
  • Aspect Ratio: 4:3
  • Viewing Angle: 12 o'clock
  • Touch Options: CTP, RTP, None
  • Module size: 260.5 x 204 x 8.4mm
  • Resolution: 1024 (RGB) x 768
  • Brightness: 600cd/m2
  • Interface: LVDS

12.1" WXGA TFT LCD Display with wide viewing angles

YTSC10WLAA-01-100N

TN-TFT
12.1"
Touch
400
LVDS
  • Screen Size: 12.1"
  • Aspect Ratio: 8:5
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 278.5 x 184.5 x 8.6 mm
  • Resolution: 1280 (RGB) x 800
  • Brightness: 400cd/m2
  • Interface: LVDS

12.3" Letterbox IPS PCAP TFT Display

TFT1920720-1

IPS-TFT
12.3"
1000
LVDS
  • Screen Size: 12.3"
  • Aspect Ratio: 8:3
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 308 x 130 x 15mm
  • Resolution: 1920 (RGB) x 720
  • Brightness: 1000cd/m2
  • Interface: LVDS

12.3" Letterbox TFT Display

LCX1203255GGU00

IPS-TFT
12.3"
Touch
850
LVDS
  • Screen Size: 12.3"
  • Aspect Ratio: 8:3
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 340.7 x 150.7x 20.9mm
  • Resolution: 1028 (RGB) x 480
  • Brightness: 850cd/m2
  • Interface: LVDS

15.6" PCAP TFT LCD Display

LCF1506188GGU00

TN-TFT
15.6"
1020
LVDS
  • Screen Size: 15.6"
  • Aspect Ratio: 16:10
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 340.4 x 227.89 x 19.8mm
  • Resolution: 1366 (RGB) x 768
  • Brightness: 1020cd/m2
  • Interface: LVDS

15.6" HD PCAP IPS TFT LCD Display with extended temperature range

YTSE60ZLAF-01-100C

IPS-TFT
15.6"
Touch
390
LVDS
  • Screen Size: 15.6"
  • Aspect Ratio: 16:9
  • Viewing Angle: All round - IPS
  • Touch Options: CTP, RTP, None
  • Module size: 375.8 x 225.1 x 2.8 mm
  • Resolution: 1920 (RGB) x 1080
  • Brightness: 390 cd/m2
  • Interface: LVDS

19" FHD Bar TFT / Letterbox Display

1920 x 360 TFT LCD

TN-TFT
19"
Touch
300
LVDS
  • Screen Size: 19"
  • Aspect Ratio: 16:3
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 491.5 x 109.4 x 8.4 mm
  • Resolution: 1920 (RGB) x 360
  • Brightness: 300 cd/m2
  • Interface: LVDS

20.9" FHD Bar TFT / Letterbox Display

1920 x 132 TFT LCD

TN-TFT
20.9"
Touch
300
LVDS
  • Screen Size: 20.9"
  • Aspect Ratio: 160:11
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 542.4 x 54.7 x 8.0 mm
  • Resolution: 1920 (RGB) x 132
  • Brightness: 300 cd/m2
  • Interface: LVDS

21.5" Full HD PCAP TFT Display

SCF2105300FGC00

TN-TFT
21.5"
Touch
210
LVDS
  • Screen Size: 21.5"
  • Aspect Ratio: 16:9
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 533.4 x 324.86 x 14.6mm
  • Resolution: 1920 (RGB) x 1080
  • Brightness: 210cd/m2
  • Interface: LVDS

21.5" Full HD TFT LCD Display

FG210500DSSWNG01

TN-TFT
21.5"
Touch
250
LVDS
  • Screen Size: 21.5"
  • Aspect Ratio: 16:9
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 495.6 x 292.2 x 11mm
  • Resolution: 1920 (RGB) x 1080
  • Brightness: 250cd/m2
  • Interface: LVDS

23" HDMI IPS TFT LCD Display with PCAP mini-USB Touch

YTS2300ZLAA-01-100N

IPS-TFT
23"
Touch
250
HDMI
  • Screen Size: 23"
  • Aspect Ratio: 16:9
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 533.2 x 312 x 10.5mm
  • Resolution: 1920 (RGB) x 1080
  • Brightness: 250cd/m2
  • Interface: HDMI

21.5" FHD TFT Display

1920 x 1080 TFT LCD

TN-TFT
21.5"
Touch
500
LVDS
  • Screen Size: 21.5"
  • Aspect Ratio: 16:9
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 495.6 × 292.2 × 10.7 mm
  • Resolution: 1920 (RGB) x 1080
  • Brightness: 500 cd/m2
  • Interface: LVDS

22" 2K Square TFT Display

1920 x 1920 TFT LCD

TN-TFT
22"
Touch
500
LVDS
  • Screen Size: 22"
  • Aspect Ratio: 1:1
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 409.56 × 409.56 × 7.6 mm
  • Resolution: 1920 (RGB) x 1920
  • Brightness: 500 cd/m2
  • Interface: LVDS

24" FHD Bar TFT / Letterbox Display

1920 x 360 TFT LCD

TN-TFT
24"
Touch
300
LVDS
  • Screen Size: 24"
  • Aspect Ratio: 16:3
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 612.7 × 132.1 × 8.4 mm
  • Resolution: 1920 (RGB) x 360
  • Brightness: 300 cd/m2
  • Interface: LVDS

27" FHD TFT Display

1920 x 1080 TFT LCD

TN-TFT
27"
Touch
300
LVDS
  • Screen Size: 27"
  • Aspect Ratio: 16:9
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 607.1 x 354.1 × 6.9 mm
  • Resolution: 1920 (RGB) x 1080
  • Brightness: 300 cd/m2
  • Interface: LVDS

27" UHD TFT Display

3840 x 2160 TFT LCD

TN-TFT
27"
Touch
350
eDP
  • Screen Size: 27"
  • Aspect Ratio: 16:9
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 608.8 × 355.3 × 13.4 mm
  • Resolution: 3840 (RGB) x 2160
  • Brightness: 350 cd/m2
  • Interface: eDP

28" FHD Bar TFT / Letterbox Display

1920 x 360 TFT LCD

TN-TFT
28"
Touch
700
LVDS
  • Screen Size: 28"
  • Aspect Ratio: 16:3
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 732 x 165 x 16.8 mm
  • Resolution: 1920 (RGB) x 360
  • Brightness: 700 cd/m2
  • Interface: LVDS

29" FHD Bar TFT / Letterbox Display

1920 x 540 TFT LCD

TN-TFT
29"
Touch
700
LVDS
  • Screen Size: 29"
  • Aspect Ratio: 32:9
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 720.8 x 226.2 x 8.4 mm
  • Resolution: 1920 (RGB) x 540
  • Brightness: 700 cd/m2
  • Interface: LVDS

31.5" FHD TFT Display

1920 x 1080 TFT LCD

TN-TFT
31.5"
Touch
400
LVDS
  • Screen Size: 31.5"
  • Aspect Ratio: 16:9
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 716.2 × 415.05 × 8.95 mm
  • Resolution: 1920 (RGB) x 1080
  • Brightness: 400 cd/m2
  • Interface: LVDS

33.2" 2K Square TFT Display

1920 x 1920 TFT LCD

TN-TFT
33.2"
Touch
420
LVDS
  • Screen Size: 33.2"
  • Aspect Ratio: 1:1
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 612.96 × 612.96 × 7.76 mm
  • Resolution: 1920 (RGB) x 1920
  • Brightness: 420 cd/m2
  • Interface: LVDS

36.6" FHD Bar TFT / Letterbox Display

1920 x 290 TFT LCD

TN-TFT
36.6"
Touch
700
LVDS
  • Screen Size: 36.6"
  • Aspect Ratio: 192:29
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 960 x 174.3 x 16.9 mm
  • Resolution: 1920 (RGB) x 290
  • Brightness: 700 cd/m2
  • Interface: LVDS

37" FHD Bar TFT / Letterbox Display

1920 x 540 TFT LCD

TN-TFT
37"
Touch
700
LVDS
  • Screen Size: 37"
  • Aspect Ratio: 32:9
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 914.9 × 280.9 × 22.7 mm
  • Resolution: 1920 (RGB) x 540
  • Brightness: 700 cd/m2
  • Interface: LVDS

42.5" FHD TFT Display

1920 x 1080 TFT Display

TN-TFT
42.5"
Touch
400
LVDS
  • Screen Size: 42.5"
  • Aspect Ratio: 16:9
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 961.7 x 550.1 × 11.7 mm
  • Resolution: 1920 (RGB) x 1080
  • Brightness: 400 cd/m2
  • Interface: LVDS

43" UHD TFT Display

3840 x 2160 TFT LCD

TN-TFT
43"
Touch
500
V-by-One
  • Screen Size: 43"
  • Aspect Ratio: 16:9
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 961.7 x 550.1 x 11.7 mm
  • Resolution: 3840 (RGB) x 2160
  • Brightness: 500 cd/m2
  • Interface: V-by-One

47.1" UHD Bar TFT / Letterbox Display

3840 x 160 TFT LCD

TN-TFT
47.1"
Touch
500
V-by-One
  • Screen Size: 47.1"
  • Aspect Ratio: 24:1
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 1209 x 62.9 x 14.5 mm
  • Resolution: 3840 (RGB) x 160
  • Brightness: 500 cd/m2
  • Interface: V-by-One

48" FB Bar TFT / Letterbox Display

3840 x 720 TFT LCD

TN-TFT
48"
Touch
1000
V-by-One
  • Screen Size: 48"
  • Aspect Ratio: 16:3
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 1217.9 x 248.2 x 9.6 mm
  • Resolution: 3840 (RGB) x 720
  • Brightness: 1000 cd/m2
  • Interface: V-by-One

54.6" UHD TFT Display

3840 x 2160 TFT LCD

TN-TFT
54.6"
Touch
800
V-by-One
  • Screen Size: 54.6"
  • Aspect Ratio: 16:9
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 1232.8 x 703.6 x 17 mm
  • Resolution: 3840 (RGB) x 2160
  • Brightness: 800 cd/m2
  • Interface: V-by-One

55" FHD TFT Display

1920 x 1080 TFT LCD

TN-TFT
55"
Touch
400
LVDS
  • Screen Size: 55"
  • Aspect Ratio: 16:9
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 1230.4 x 706.8 × 14.1 mm
  • Resolution: 1920 (RGB) x 1080
  • Brightness: 400 cd/m2
  • Interface: LVDS

64.5" UHD TFT Display

3840 x 2160 TFT LCD

TN-TFT
64.5"
Touch
500
V-by-One
  • Screen Size: 64.5"
  • Aspect Ratio: 16:9
  • Viewing Angle: All round
  • Touch Options: CTP, RTP, None
  • Module size: 1450.48 x 825.52 x 32 mm
  • Resolution: 3840 (RGB) x 2160
  • Brightness: 500 cd/m2
  • Interface: V-by-One

Let's get started on your project

We aim to offer reliable and long-term solutions to our B2B customers. If you are a business and would like to discuss your display and/or embedded system requirements please contact us below

Display Solutions Glossary & FAQs

IPS – In Plane Switching

In-Plane Switching (IPS) is a display technology that overcomes the viewing limitations of conventional TFT-LCDs. It is also known as Super TFT.

[ Read More... ]

STN – Super Twisted Nematic

A type of passive matrix monochrome liquid crystal display, providing better viewing angles and performance than a TN display

[ Read More... ]

TFT – Thin Film Transistor

A TFT display is a form of Liquid Crystal Display with thin film transistors for controlling the image formation. The TFT technology works by controlling brightness in red, green and blue sub-pixels through transistors for each pixel on the screen.

[ Read More... ]

VA - Vertical Alignment

A type of LCD in which the liquid crystals naturally align vertically to the glass substrates.

[ Read More... ]

IPS vs MVA: which is the best performing display?

There are many display technologies, but do you know which one would be better for your application? Particularly when considering optimum viewing angle and contrast. We discuss 2 of the best options.

[ Read More... ]

IPS vs TFT: which technology is best for my industrial product design?

Compare IPS vs TFT displays - the TFT display is the display of choice for industrial designs, but it can have its limitations. A newer technology called IPS (in plane switching) offers better viewing angles and colours, but is it really the best choice - we discuss benefits and negatives of both types of TFT display.

[ Read More... ]

PCAP – Projected Capacitive Touch panel

A layer of glass with a matrix of conuctive elements behind that when pressed with another conductive input (ie human finger) registers a touchpoint..

[ Read More... ]

Resistive Touch

A resistive touchscreen works on a number of layers and when the layers are pressed together, a touchpoint is registered.

[ Read More... ]
