Rotary encoder display modules combine a round LCD display with push button rotary encoder allowing you to create stylish HMIs for controlling temperature, volume, motor speeds, timing, ambience lighting and dimming levels.
Product Features
- Available in from 0.96" to 2.47"
- IPS-TFT or PMOLED technology
- Gloss and matt display finish
- Dead-front display
- SPI or MIPI interfaces
- Smart Display and STM32 MCU options available
- Custom colour or texture outer ring
- Customisable audible click sound
- IP65 option ideal for home appliance applications
Water or Steam - no problem!

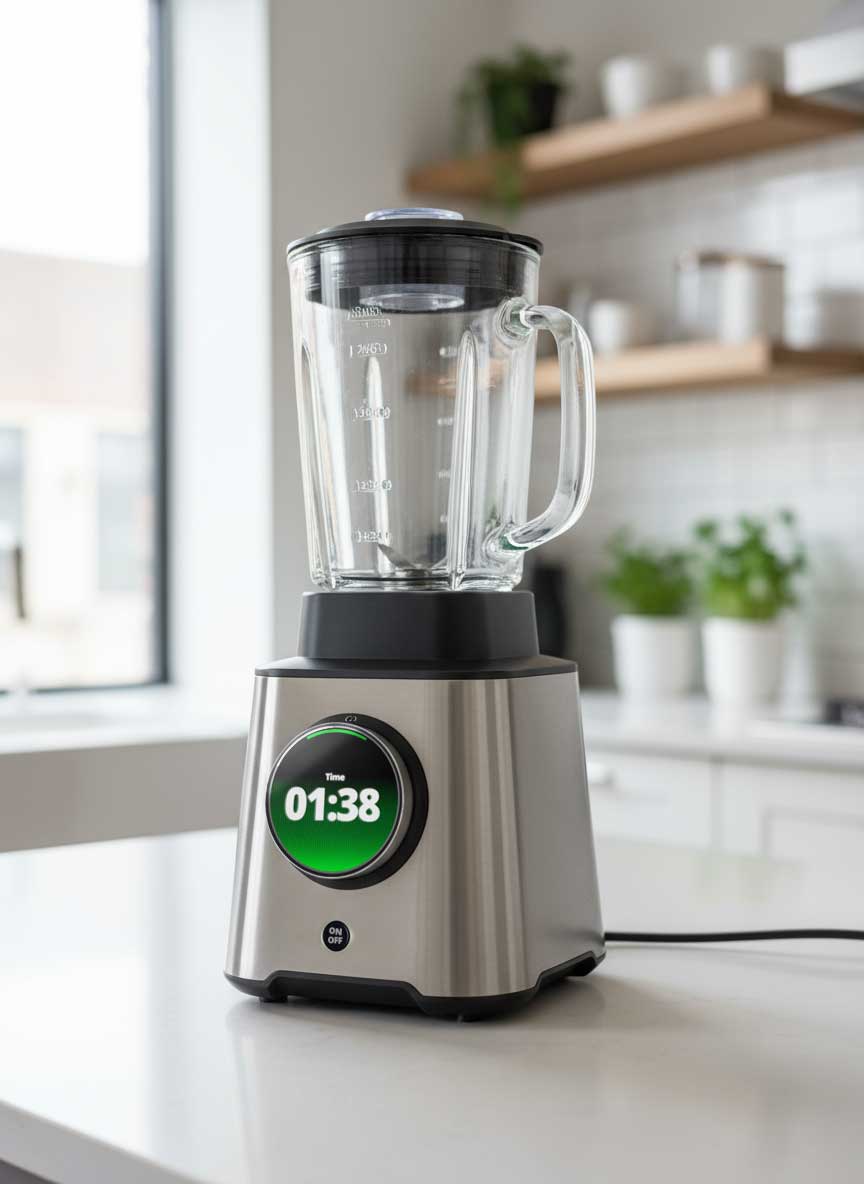

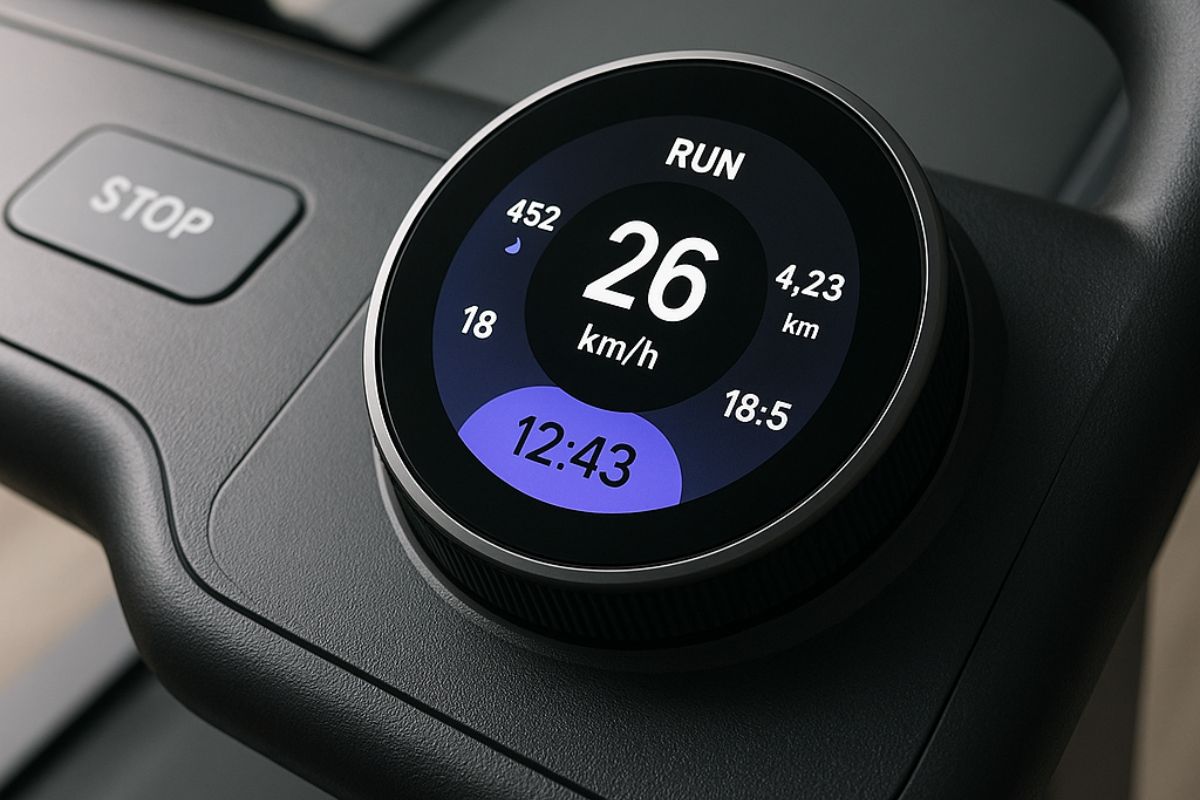

Our new IP65 rated rotary encoder display is a marvel of durability designed for the demanding usability expectations of home appliances. Thanks to its innovative design its not afraid of water, making it perfect for kitchen appliances such as hobs, washing machines, blenders, air fryers and faucets, as well as shower control panels and fitness equipment. In fact anywhere where exposure to water and frequent cleaning are inevitable.
We have a range of options to suit any scenario, whether you have already selected a Host CPU or need some help in selecting one. we can help design a product perfect for your application.
How are you driving your display?
What we can offer
DISPLAY ONLY
For use if you have a powerful enough host CPU to perform GUI rendering tasks and communicate through the SPI.
SMART DISPLAY
Allows you to offload GUI rendering tasks to it's dedicated SW and communicate with your host CPU through simpler UART pre-defined commands.
DRAGONEYE
For rapid develeopment, the expansion board features high-performance STM32 MCU, MIPI-DSI/RGB interface and many connectivity options to interface with your host co-processor or sensors.
DRAGONEYE MCU Development Kit
Powered by the STM32 ARM Cortex M4 core, DRAGONEYE is a pre-developed hardware/software combination designed to bring HMIs to life effortlessly.
- Pre-developed display drivers.
- Allows idea validation with a rapid proof of concept
- Enables development of software for a final prototype
- Can be re-purposed for mass production
- Saves 6 months time and cost in hardware development, driver integration and debugging
Rapid evaluation made simple
If you simply want to evaluate the display and functionality of our range of rotary encoders, we offer an evaluation kit including MCU with UART interface.
The module will be provided with reference tools to enable you to upload images quickly and easily to get started on your proof of concept before development of the final MCU/MPU and software.
Encoder Display Structure
Product Comparison
1.3" Rotary Display
Button Diameter: 46.2mm
LCD Panel: IPS-TFT
Resolution: 240x240
Brightness: 300 nits
Interface: 4 wire-SPI
2.1" Rotary Display
Button Diameter: 78.4mm
LCD Panel: IPS-TFT
Resolution: 480x480
Brightness: 300 nits
Interface: 2-lane MIPI
2.47" Rotary Display
Button Diameter: 92.4mm
LCD Panel: IPS-TFT
Resolution: 480x480
Brightness: 290 nits
Interface: 2-lane MIPI
Perfect markets for Rotary Switch LCDs
Heating & Cooling Control
Heating controllers need to be functional and easy to use, A rotary switch is ideal for controlling temperature settings at the turn and the push of a button.
Take a look at a demo in action here

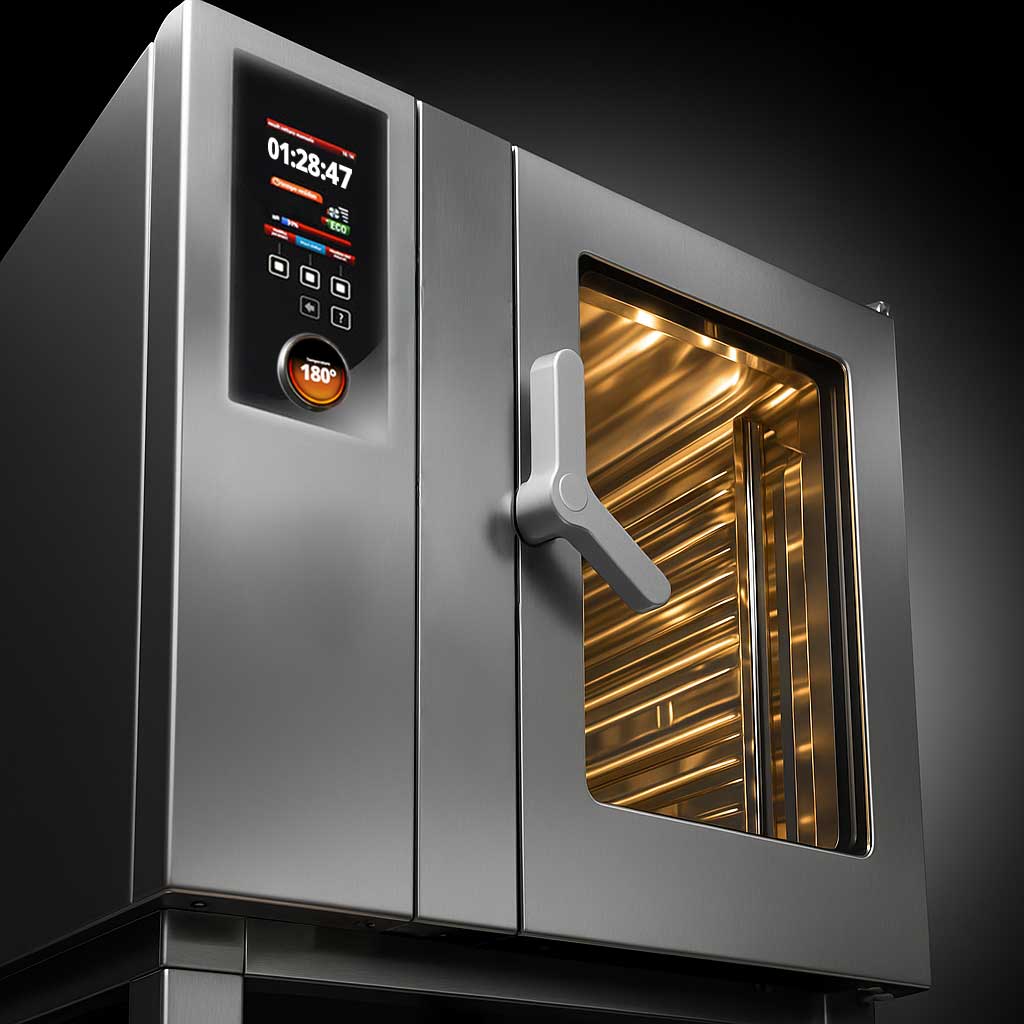

Home Appliances
Home appliances such as ovens, hobs and fridges are becoming more intuitive and connected. Rotary switches add a nice design feature for the latest pieces of home furniture.
Take a look at a demo in action here
Audio and Broadcast

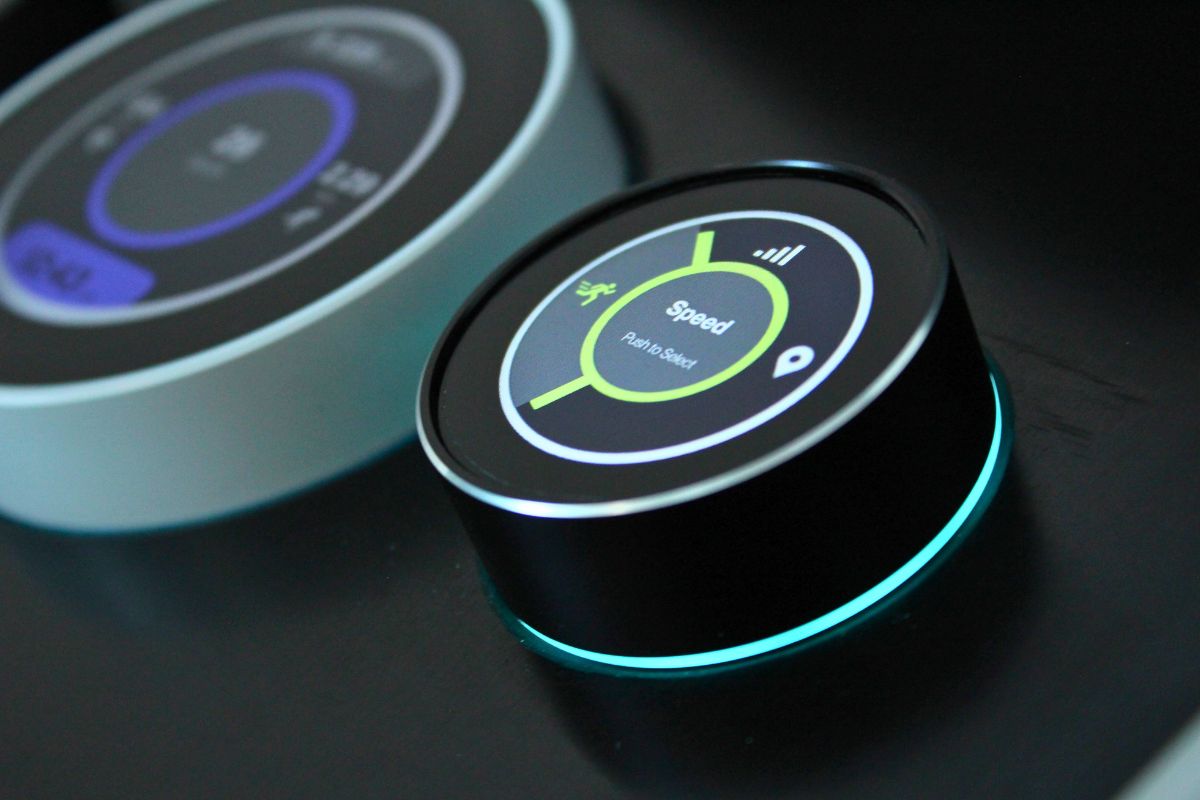

The rotary function is ideal for volume control and the push action can be used to switch between settings. The LED ring of our rotary displays gives an extra effect ideal for audio applications. Take a look at a demo in action here
Frequently Asked Questions
Can I change the colour or texture of the housing?
Yes. We can offer both aluminium and plastic housing and match your pantone colour. We can also offer knurled effect for a more tactile feel.
Can I change the push-down force?
Yes. We can offer different spring forces to suit your needs.
Do you offer these with a built-in MicroController so I can Plug and Play?
Yes. We offer a USB UART solution with a full graphic GUI suite for all our sizes with 16MB to 128MB flash.
Do you have an IP65 version?
Yes. We currently have IP65 version of the 1.3" Rotary Encoder Display, We will soon be launching the 2.1" IP65 version.
Our Rotary Encoder Displays
Products Found
Get started on your project
If you would like to discuss your project or get your hands on a sample for rapid evaluation, please contact us below. We would love to hear from you.
