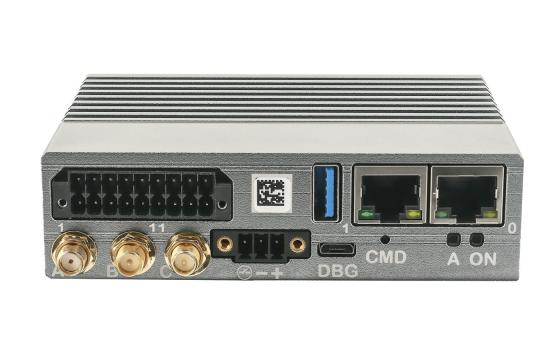

IOT-GATE-RPI5 Raspberry Pi Gateway - NEW PRODUCT
IOT-GATE-RPI5 Raspberry Pi Gateway - NEW PRODUCT
A76
IOT-GATE-RPi5 is a compact industrial IoT gateway based on the Raspberry Pi 5 platform, combining high-performance edge processing with rugged, fanless hardware for reliable 24/7 operation.
- Powered by Broadcom quad-core Cortex-A76 CPU
- LAN, WiFi, BT, RS485 or CAN-FD
- Zigbee, Thread and Bluetooth Mesh
- Secure boot, TPM and hardware watchdog
- Hailo-8 AI accelerator
- Miniature form factor: 105x80x30 mm
- Extended temperature
- Supports DIN-rail and wall moutning
- Custom OS builds, bootloader or enclosure branding available
- 5-Year warranty with full support
| Feature | Specification |
|---|---|
| CPU Model | Broadcom BCM2712 quad-core Cortex-A76, 2.4 GHz |
| GPU | Broadcom VideoCore VII OpenGL ES 3.1, Vulkan 1.2 |
| Memory | 2GB – 16GB, LPDDR4 |
| Storage | 16GB – 64GB eMMC flash, soldered on-board |
| AI Accelerator | Hailo-8L, optional M.2 module |
| Cellular Modem | 4G/LTE CAT-4 cellular module, Telit LE910 Worldwide LTE, UMTS/HSPA |
| WiFi and Bluetoooth | 802.11ac WiFi and Bluetooth 5.4 BLE 2.4GHz rubber duck antenna |
| Wireless Mesh | Bluetooth mesh, Thread, Zigbee Nordic Semiconductor nRF52840 |
| RS485/CAN bus | Up-to 2x RS485 (half-duplex) | CAN-FD ports Isolated terminal-block connector |
| Digital I/O | 2x digital outputs, up to 4Kp60 |
| USB | 1x USB3.0 port, type-A connector 1x USB2.0 port, type-A connector |
| Power Supply Voltage | 12V to 24V |
| Dimensions | 105 x 80 x 30mm |
| OS Support | Fully compatible for Raspberry Pi O/S Docker, MS Azure IoT and Node-RED Modbus RTU, Modbus TCP and MQTT Support for Orchestra OS and Manager Support for BalenaOS platform |
| Operating Temperature | Commercial: 0° to 60°C Industrial: -40° to 80°C |
* Optional feature available on this product
Accessories
The following additional accessories are also available to order. Please contact us for more information.
DIN Rail Clip
Clip for mounting the gateway on a DIN rail
Horizontal Mounting Bracket
Bracket for mounting the gateway on a surface
Vertical Mounting Bracket
Bracket for mounting the gateway on a surface
Cellular Antenna
Cellular rubber duck antenna with SMA connector
Can be used together with cellular antenna extender or assembled on the gateway SMA connector
Cellular Antenna Extender
2m antenna extender cable with magnetic mount
Should be used together with cellular antenna
WiFi / BT Antenna
2.4GHz / 5GHz rubber duck antenna with RP-SMA connector
PSU with Terminal Plug Adapter
Wall mount PSU with terminal plug adapter
Input 100-240VAC 50/60Hz, 36W output 12VDC 3A
Includes US, EU, UK, AU AC blades
