MCM-iMX8M-Mini: NXP i.MX8M Mini

Navigate

MCM-iMX8M-Mini: NXP i.MX8M Mini

ARM
A53
4GB

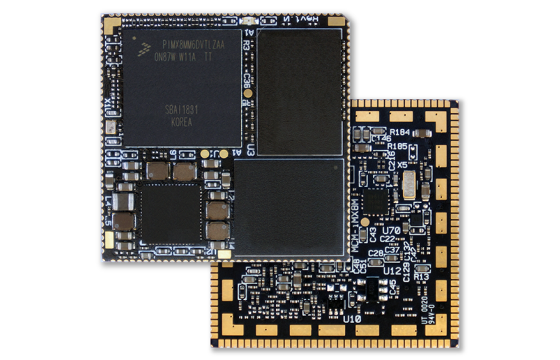

The NXP MCM-iMX8M-Mini is an ultra-miniature soldered Computer-on-Module (CoM) which features high performance graphics and imaging capabilities as well as impressive power efficiency. Ideal for a wide range of space constrained applications such as wearable healthcare monitors and medical devices, portable handheld devices and instrumentation equipment. Measuring just 30mm x 30mm this tiny module brings out the full capabilities of the i.MX8M Mini quad core offering up-to 4GB RAM and 64GB eMMC, Gbit Ethernet, PCIe, 2 USB ports, 4 UARTs and up-to 86 GPIOs. Display and camera connectivity is supported with MIPI-DSI and MIPI-CSI interfaces.

All of our Core Modules are available to purchase as an Evaluation kit for proof of concept. Details of the kit contents are on the tab below. Please submit your request on the quick form and we'll come back to you.

  • Quad Core ARM Cortex A53 @1.8GHz
  • Up to 4GB LPDDR4 and 64GB eMMC flash
  • MIPI-DSI interface, up to 1920 x 1080
  • Ethernet, PCIe, 2x USB2.0, 2x MMC/SD/SDIO, 3x SPI, 86x GPIO
  • Wide tempature range -40° to 85°C
  • Ideal for space constrained and portable systems
Download Datasheet Send Enquiry

Get started with an Evaluation Kit

Loading
FeatureSpecification
CPU Architecture ARM Cortex A53
CPU Manufacturer NXP
CPU Model i.MX8M Mini DualLite
i.MX8M Mini Dual
i.MX8M Mini Quad Core
CPU Frequency Up to 1.8GHz
Real Time Co-Processor Yes
MemoryUp to 4GB LPDDR4
Onboard Storage Up to 64GB eMMC flash
Display Interface MIPI-DSI
Display Resolution (Max) 1920x1080
TouchScreen Controller CTP
Ethernet Ports 1 (RGMII interface)
USB 2.0 Ports Host 2
MMC/SD/SDIO Up to 2
PCIe Up to 1 (Gen 2.1)
UART/Serial Up to 4
GPIOUp to 86
I2CUp to 3
SPIUp to 3
Power Supply Voltage 3.45V – 4.4V
Dimensions30 x 30 x 3 mm
OS Support Yocto Linux
Debian Linux

* Optional feature available on this product

DocumentDescription
Block Diagram Block Diagram for MCM-iMX8M-Mini

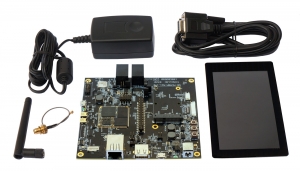

MCM-iMX8M-Mini Evaluation Kit

Hardware

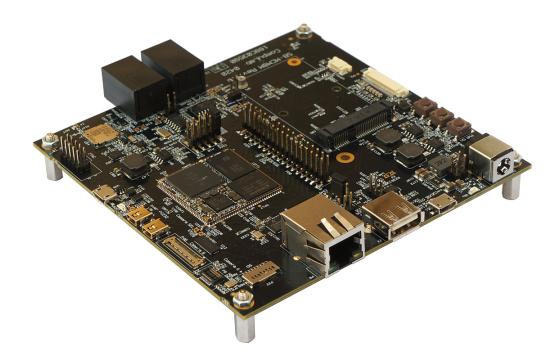

  • MCM-iMX8M-C1800QM-D2-N16 SOM assembled on SB-MCMIMX8M carrier-board
  • 5" WXGA LCD with capacitive touch panel
  • WiFi antenna and cable
  • Serial port cable
  • USB cable and adapter
  • 12V power supply

Technical support

  • Technical support for 12 months.
  • Schematics review of the customer's carrier board design.
  • LCD panel compatibility verification and driver adaptation service.
  • 45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for his needs.

Kit price: $385
