Sunlight Readable
Displays
Engineered for outdoor performance - from dynamic HMIs to static signage
Where Sunlight Readability Matters Most
From marine decks to EV forecourts, our displays perform where standard screens fail.

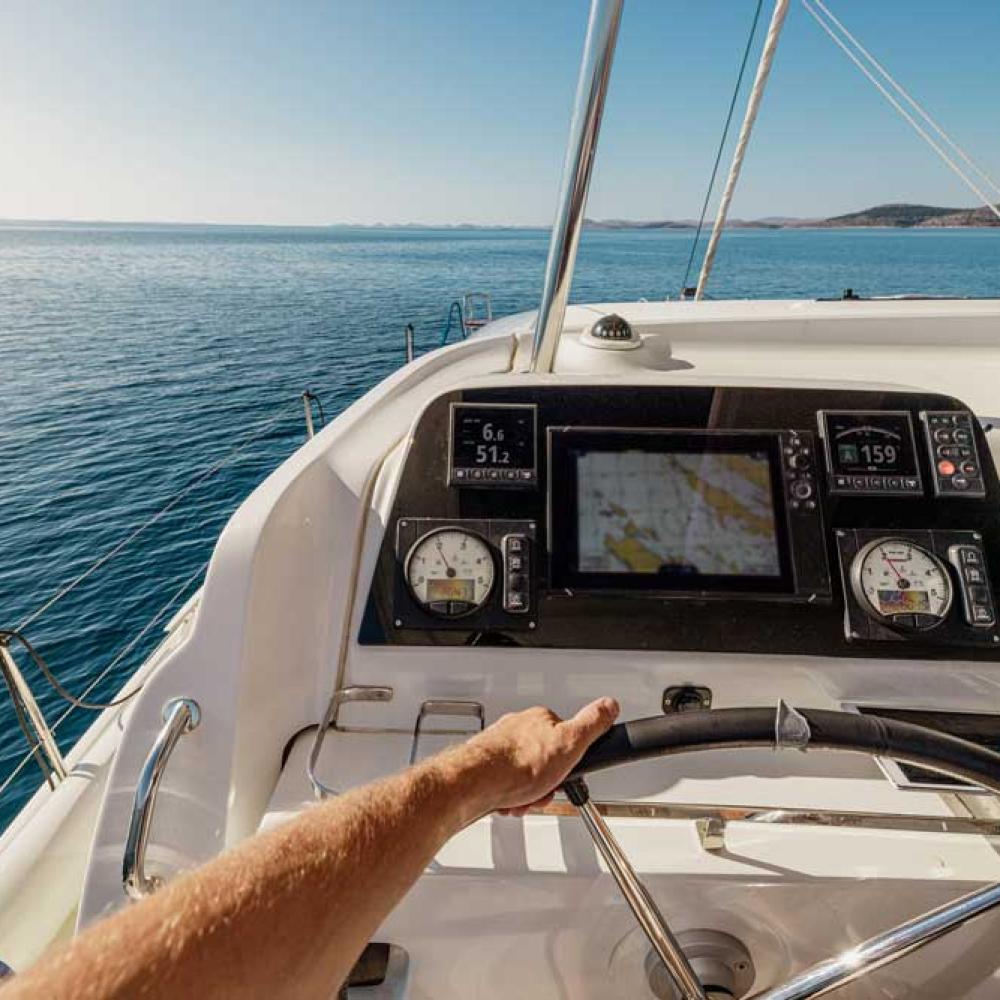

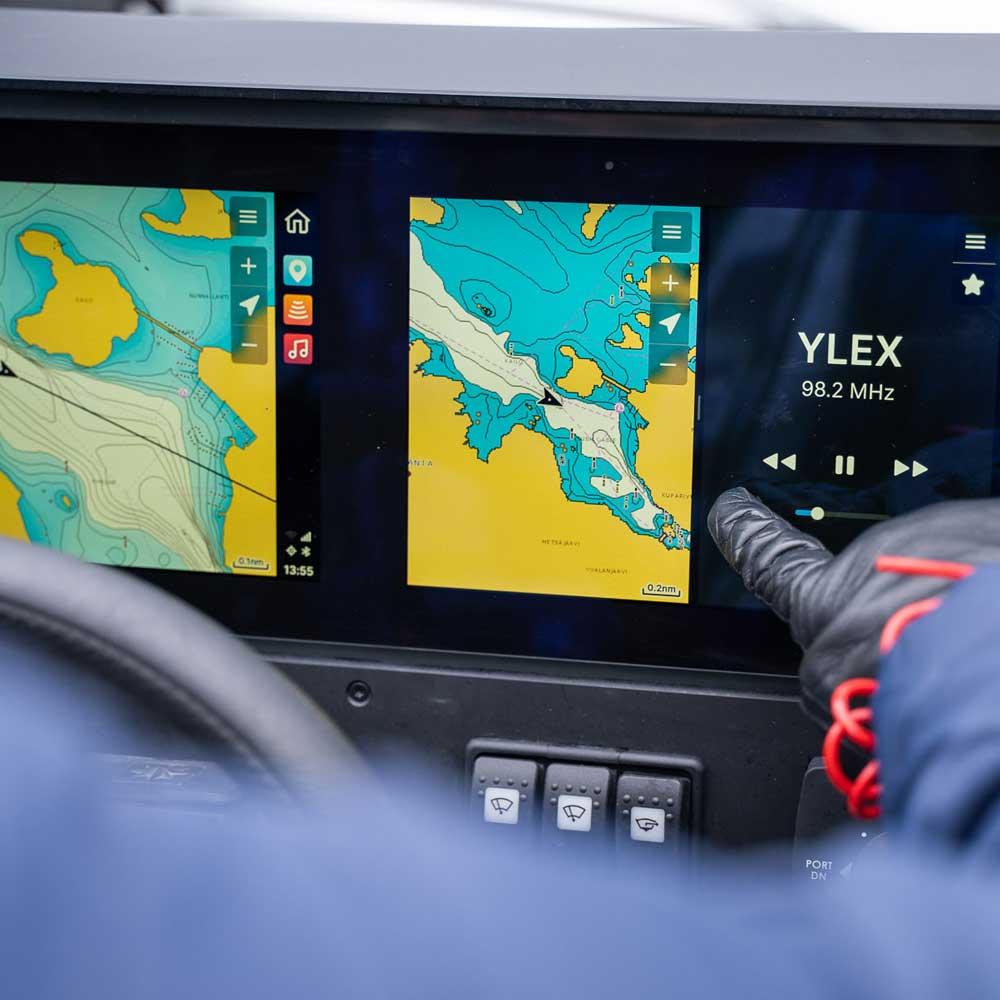

Marine
Instruments
EV Charging
Stations
Smart
Lockers
Access
Control

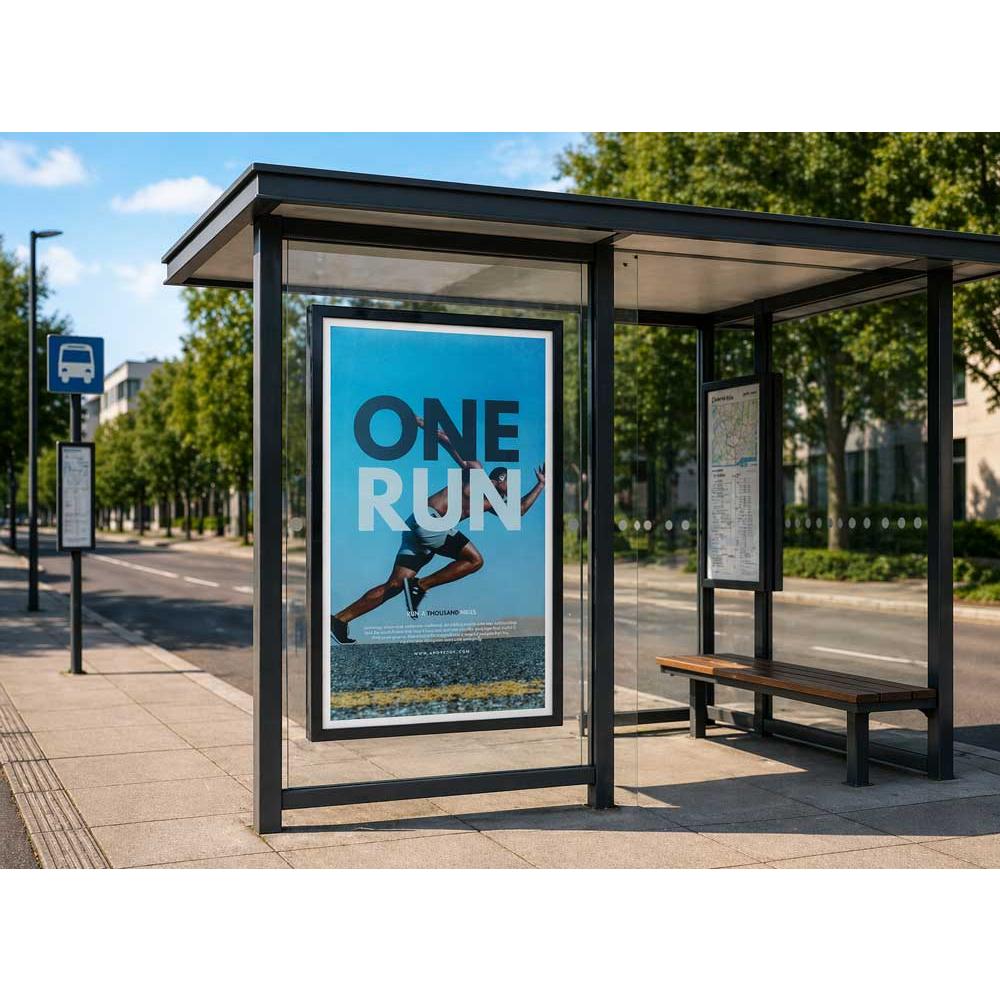

Retail
Signage

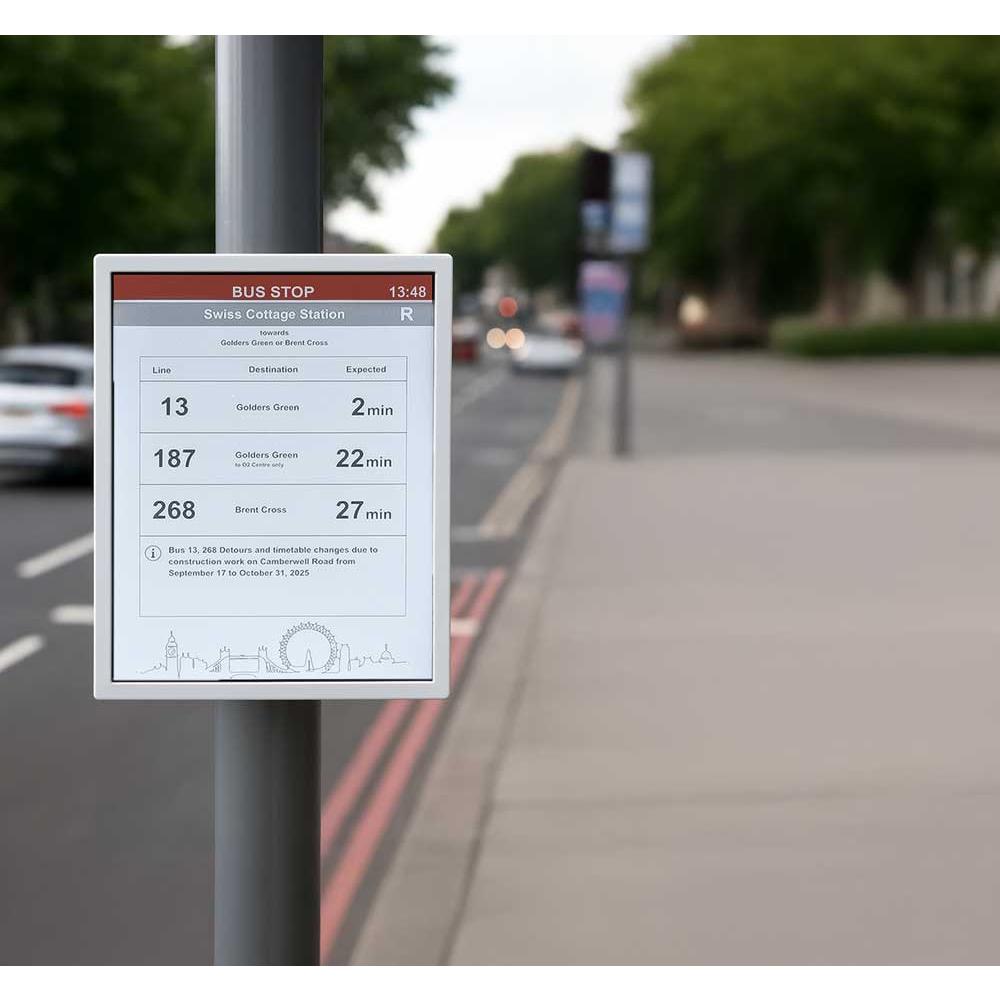

Passenger
Information
The Challenges of Outdoor Displays
Direct sunlight, temperature extremes, UV degradation and moisture all conspire against outdoor displays. Getting it right means addressing each as part of a coordinated system - not in isolation.

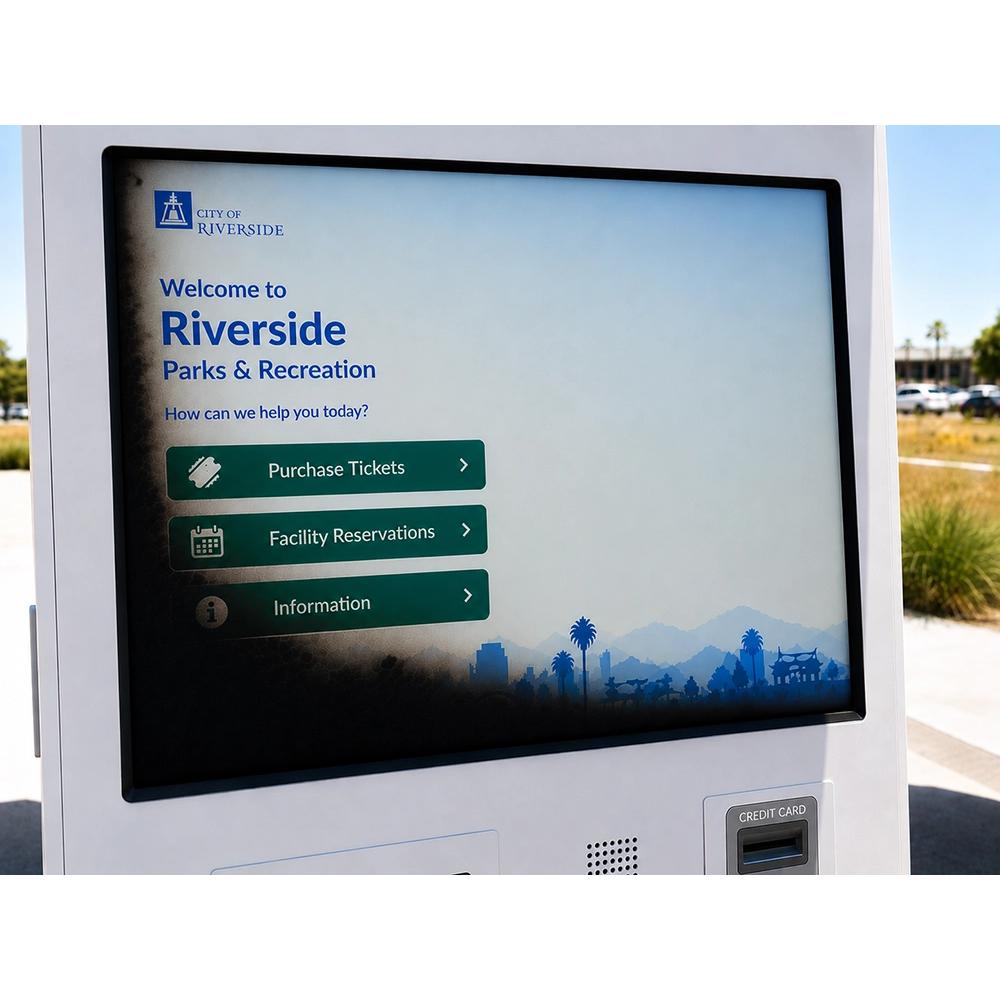

Screen Blackout
In direct sun, LCDs can overheat until liquid crystals stop working turning the screen black. Thermal management and heat-tolerant LC mixtures prevent it.
Temperature
Wide swings between hot and cold affect backlight output and slow LC response time. Industrial-grade panels are rated from -30°C to +85°C.

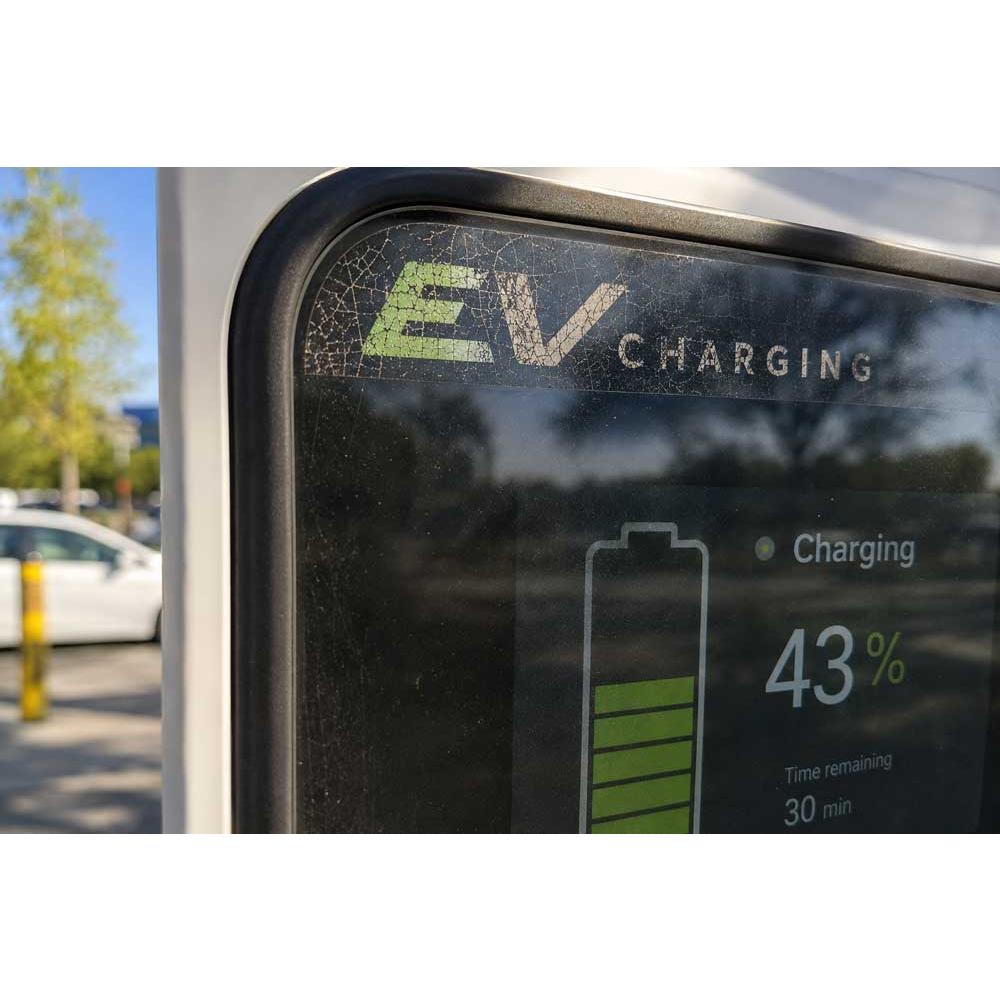

UV Damage
Prolonged exposure to UV bleaches polarisers, fades colour and yellows the cover lens over time. UV-filtering cover glass is the standard defence.

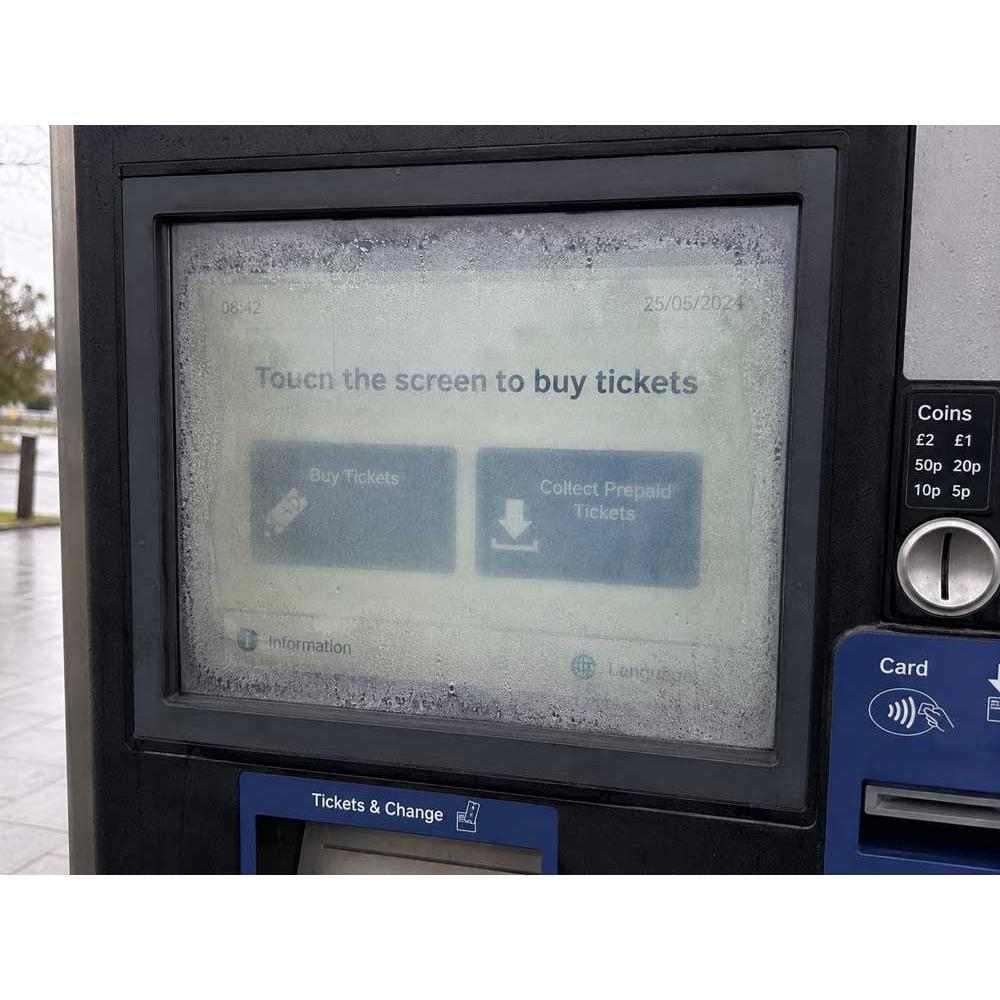

Moisture Ingress
Condensation behind unbonded cover glass causes fogging, while dust and salt air accelerate delamination. Optical bonding seals the stack against both.
Choosing the Right Technology
We match the right technology to your application - brightness, power budget, update rate and enclosure all factor in.
Dynamic Displays - Content Rich and Interative
When you need image rich full colour graphics, moving images and high levels of user interaction.
IPS-TFT
The Proven Standard
for Display Clarity
✅ 1,000–2,500+ nits
✅ No burn-in for 24/7 interfaces
✅ Broad size range, stable supply
✅ Gloved & wet-touch PCAP support
✅ Transflective options for low power
Mini-LED
Extreme Brightness, Excellent
Contrast, Smarter Control
✅ Very high peak brightness
✅ Local dimming for deep contrast
✅ Zoned power optimisation
✅ LCD durability - no burn-in risk
✅ Efficient thermal management
Reflective, Bistable - Low Power Displays
If your content updates infrequently - think wayfinding or digital posters - these displays use ambient light rather than competing with it, consuming power only at the moment of update.
Cholesteric-LCD
Full colour
Zero standby power
✅ Retains image with zero power
✅ Up to 16.7 million colours
✅ Fast full screen refresh in <200ms
✅ Wide operating temperature
✅ Solar power capability
Electronic Paper Displays
Paper-like quality -
zero power consumption
✅ Black & white to full colour
✅ Spectra6 - 60k colours
✅ Kaleido - 4k colours
✅ Print quality visuals
✅ Proven outdoor tech
Memory in Pixel
Ultra Low-Power
Outdoor Visability
✅ Reflective for daylight visibility
✅ Zero power image retention
✅ Ideal for solar or battery devices
✅ Minimal heat generation
✅ Wide viewing angles
Reflective displays don't stop working at night. Both CH-LCD and EPD are available with integrated front lighting - a low-power LED layer activated only when needed. For solar-powered installations, the overall energy budget remains well within what a modest panel and battery can sustain.
Technology Comparison
| IPS-TFT | Mini-LED with FALD | Memory-in-Pixel | Cholesteric LCD | ePD | ePD Colour | |
|---|---|---|---|---|---|---|
| Peak Brightness | 1,000–2,500+ nits | Very high, strong sunlight performance | Ambient-light driven (reflective) | Ambient-light driven (reflective) | Ambient-light driven (reflective) | Ambient-light driven (reflective) |
| Contrast | Good | Excellent with local dimming | Good, ambient dependent | Good, ambient dependent | Good, ambient dependent | Good, ambient dependent |
| Power Usage | High (backlight reliant) | Optimised via zoned dimming | Very low | Zero standby | Zero standby | Zero standby |
| Refresh Speeds | Fast | Fast | Moderate | ~200ms | 1-2s | 1-22s |
| Best For | Dynamic HMIs | High visual impact | Infrequent updates | Colour signage | Static text | Colour signage |
| Temperature Range | -30° to +85°C | -30° to +85°C | -20° to +70°C | -30° to +80°C | 0° to +50°C | varies |
Engineering Beyond Brightness
Selecting the display is only the beginning. Outdoor systems demand coordinated design across electronics, software and mechanics. We support the entire embedded architecture around the display.
Optical bonding to reduce reflections.
Etched AG + AR & AF surface treatments.
Vandal resistant laminated glass options.
Optimised touch for gloves and water
Backlight control, cooling & thermal management.
PCBA design & custom electronics
Rugged, IP rated enclosure design
EMC and electrical robustness
Crafting the Ideal Outdoor Display
Outdoor displays need to thrive and survive in a world of ever-changing environmental challenges.
Download our handy guide covering the 10 features that come together to craft the ideal outdoor display
Get started on your project
We offer reliable and long-term solutions to our B2B customers. If you would like to discuss your display and/or embedded system requirements please contact us.
Example Products
Below is a small selection of the TFT display solutions we offer. Get in touch to discuss your application, and we’ll help you design an optimum display system for your device.
