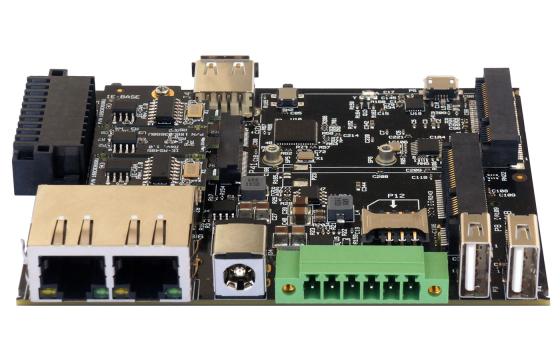

SBC-IOT-iMX8: NXP i.MX8M Mini SBC

Navigate

SBC-IOT-iMX8: NXP i.MX8M Mini SBC

ARM
A53
4GB

SBC-IOT-iMX8 is a powerful Internet of Things (IOT) Single Board Computer based on the NXP i.MX8M Mini processor designed for industrial control and monitoring. It features extensive wireless and wired connectivity including LTE modem, WiFi 802.11ax, Bluetooth 5.1, 2x Ethernet, 3x USB2, RS485 / RS232, and CAN-FD. This impressive SBC has an extended temperature range of -40°C to 80°C and a wide input voltage range of 8V to 36V, making it ideal for industrial and harsh environment.

IOT-GATE-iMX8 can be optionally assembled with the industrial I/O add-on board installed into the I/O expansion socket. The industrial I/O add-on features up-to three separate I/O modules (A, B and C) which allow to implement different combinations of isolated CAN, RS485, RS232, digital outputs and inputs. Download the datasheet to learn more.

  • NXP i.MX8M-Mini CPU, quad-core Cortex-A53
  • Up-to 4GB RAM and 64GB eMMC
  • LTE modem, WiFi 802.11ax, Bluetooth 5.1
  • 2x Ethernet, 3x USB2, RS485 / RS232, CAN-FD
  • Custom I/O expansion boards
  • OS Support: Debian Linux, Yocto Project and U-Boot
  • Also available as System-on-Module
  • SBC-IOT-iMX8: NXP i.MX8M Mini SBC
  • SBC-IOT-iMX8: NXP i.MX8M Mini SBC

Get started with an Evaluation Kit

For information about samples and pricing, complete the form below and we'll come back to you with more details.

Occasionally we'd like to send you technology and product updates relevant to you. Submitting your details tells us you're OK with this and you agree to our privacy and cookie policy. You can opt out at any time by clicking on the link in the emails we send you.

FeatureSpecification
CPU Architecture ARM Cortex A-53
CPU Manufacturer NXP Freescale
CPU Model i.MX8M Mini, quad-core
CPU Frequency 1.8GHz
Real Time Co-Processor Yes
Memory Up to 4GB, LPDDR4
Primary Onboard Storage Up to 64GB eMMC flash, soldered on-board
Secondary Onboard Storage Up to 64GB eMMC flash, optional module
Ethernet PortsUp to 2
WIFI802.11ax WiFi interface
Intel WiFi 6 AX200 module
Bluetooth5.1 BLE Intel WiFi 6 AX200 module
Cellular4G/LTE CAT1 cellular module, Simcom SIM7600G (via mini-PCie socket)
On-board micro-SIM card socket
GNSSGPS / GLONASS
Implemented with Simcom SIM7600G module
USB 2.0 Ports Host Up to 3
PCIeUp to 2
UART/Serial Up to 2
GPIO12
SPIUp to 2
I2CUp to 1
Interface add-onUp-to 2x CAN-FD / RS485 / RS232, isolated, terminal-block connector
Up-to 2x analog 4–20mA input
Digital I/O add-on4x digital outputs
4x digital inputs
PoE add-onAdditional 100Mbps Ethernet port with PoE capability (powered device)
Power Supply Voltage Unregulated 8V to 36V
Dimensions 104 x 80 x 23 mm
Operating TemperatureCommercial: 0° to 60° C
Extended: -20° to 60° C
Industrial: -40° to 80° C.
OS Support Debian Linux, Yocto Project and U-Boot

* Optional feature available on this product

Block Diagram
SBC-IOT-iMX8 Evaluation Kit

SBC-IOT-iMX8 Evaluation Kit

Kit Content:

  • SBC-IOTIMX8-D4-NA32-WB-JS7600G-FARS4-FBCAN-PS-XL-TIC
  • 2x WiFi antenna
  • Cellular antenna
  • IOTG-ACC-M2SD SD card adapter
  • Extra RS232 add-on module
  • Extra RS485 add-on module
  • USB cable
  • DC Y-cable

Technical Support:

  • Technical support for 12 months.
  • 45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for his needs.
