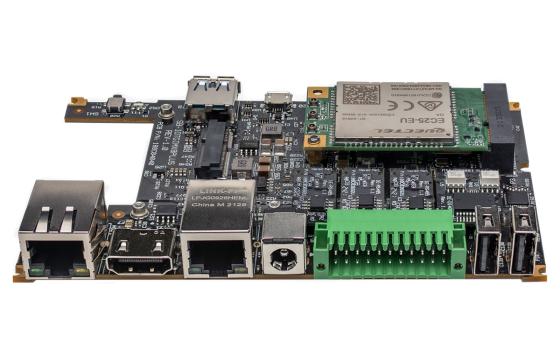

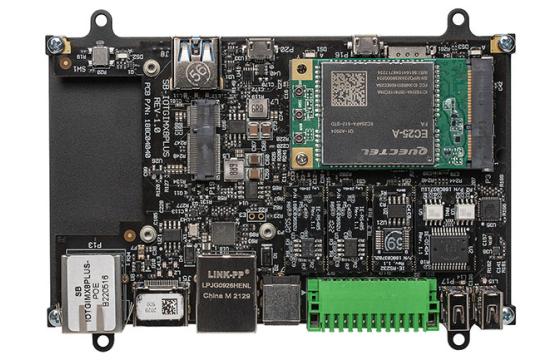

SBC-IOT-iMX8Plus: NXP i.MX8M Plus SBC
SBC-IOT-iMX8Plus: NXP i.MX8M Plus SBC
TN-TFT
HDMI
LVDS
ARM
A53
A53
8GB
SBC-IOT-iMX8-Plus is powerful Single Board Computer built around NXP i.MX8M-Plus. It features high performance graphics and image capabilities for a wide range of applications including industrial control and monitoring, medical, IOT, digital signage and professional audio visual devices.
- Wide range of high-speed display interfaces
- Up to 8GB RAM and 128 eMMC
- Rich I/O, including Gb Ethernet, Wifi, BT and PCIe
- Wide operating temperature range of -40°C to +80°C.
This product is available to purchase as a development kit for proof of concept. Details of the kit contents are on the tab below.
Specifications
Diagrams
Development Kit
| Feature | Specification |
|---|---|
| CPU Architecture | NXP i.MX8M Plus QuadLite, quad-core ARM Cortex-A53, 1.8GHz NXP i.MX8M Plus Quad, quad-core ARM Cortex-A53, 1.8GHz |
| NPU | AI/ML Neural Processing Unit, up to 2.3 TOPS |
| Real Time Co-Processor | ARM Cortex-M7, 800Mhz |
| RAM | 1GB – 8GB, LPDDR4 |
| Storage | 16GB – 128GB eMMC flash, soldered on-board |
| Display Output | DVI-D, up to 1080p60 |
| GPU and Video | GC7000UL GPU 1080p60 HEVC/H.265, AVC/H.264 |
| LAN | 2x 1000Mbps Ethernet portx, RJ45 connectors |
| WIFI and Bluetooth | 802.11ax WiFi and Bluetooth 5.3 BLE Implemented with Intel WiFi 6E AX210 module 2x 2.4GHz / 5GHz rubber duck antennas |
| Cellular | 4G/LTE CAT4 cellular module, Quectel EC25-E (EU bands) 4G/LTE CAT4 cellular module, Quectel EC25-A (US bands) SIM card socket Cellular rubber duck antenna |
| GNSS | GPS Implemented with Quectel EC25 module |
| USB | 2x USB2.0 ports, type-A connectors (back panel) 1x USB3.0 port, type-A connector (front panel) |
| RS485/RS232 | Up-to 3x RS485 (half-duplex), RS232 ports Isolated, terminal-block connector |
| CAN bus | 1x CAN bus port Isolated terminal-block connector |
| Digital I/O | 4x digital outputs + 4x digital inputs Isolated 24V compliant with EN 61131-2, terminal-block connector |
| Debug | 1x serial console via UART-to-USB bridge, micro-USB connector Support for NXP SDP/UUU protocol, micro-USB connector |
| Expansion Connector | Expansion connector for add-on boards LVDS, SDIO, USB, SPI, I2C, GPIOs |
| Power Supply Voltage | Unregulated 8V to 36V |
| Dimensions | 125 x 80 x 25 mm |
| OS Support | Linux Yocto |
| Operating Temperature | Commercial: 0° to 60° C Industrial: -40° to 80° C |
| Warranty | 5 years |
* Optional feature available on this product
Click on image to expand
SOM-iMX8Plus Evaluation Kit
Hardware
- SOM-IOTIMX8PLUS-C1800QM-D4-N32-WB-FARS4-FBRS2-FDIO-POE-H-PS-XL-TIC
- 2 x extra RS485 I/O modules
- 2 x extra RS232 I/O modules
- DC terminal block adapter
- DC Y-cable
- USB cable
Technical support
- Technical support for 12 months.
- 45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for their needs.
