PCSF51: AMD Ryzen Embedded R2000 1.8" SBC
PCSF51: AMD Ryzen Embedded R2000 1.8" SBC
x86
8GB
A versatile raspberry-pi sized 1.8" Single Board Computing for graphics-demanding, ultra-tiny, and edge computing solutions. Targeted or use in industrial application development, robotics, edge computing, and vision systems.
- AMD Ryzen™ Embedded R2000 Series - Picasso
- Brings advanced AI inference capabilities to the fore
- Single channel DDR4 memory up to 8GB
- AMD Vega GPU with up to 3 computing units.
- 10-Year CPU Life Cycle Support Until Q2' 32
Specifications

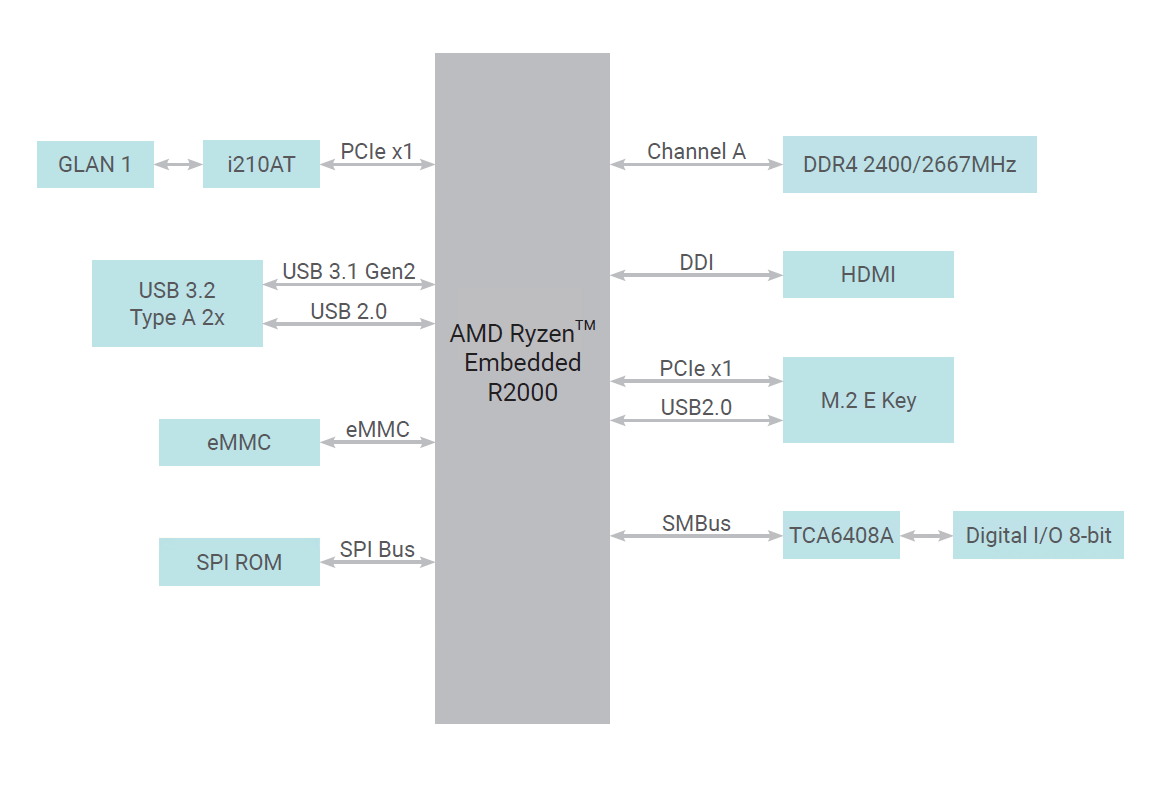

Diagrams
| Feature | Specification |
|---|---|
| CPU Architecture | X86 |
| CPU Manufacturer | AMD® Ryzen™ Embedded |
| CPU Model | AMD® Ryzen™ Embedded R2514, Quad Core, 2MB Cache, 8 CU, 2.1GHz AMD® Ryzen™ Embedded R2314, Quad Core, 2MB Cache, 6 CU, 2.1GHz AMD® Ryzen™ Embedded R2312, Dual Core, 1MB Cache 3 CU, 2.7GHz |
| Memory | Up 8GB DDR4 |
| Storage | 1 x 32GB/64GB/128GB eMMC |
| Graphics | AMD Vega GPU with up to 3 computing units. |
| Display Interface | 1 x HDMI |
| Display Resolution (Max) | 4096x2160 @24Hz |
| Ethernet Ports | 1 x GbE (RJ-45) |
| USB | Up to 1 USB |
| UART/Serial | 1 x 8-bit DIO |
| TPM | fTPM 2.0 |
| Power Supply Voltage | Single 12V +/- 5% DC |
| Dimensions | 84 x 55 x 13.8 mm |
| Operating Temperature | 0° to 60° C |
| OS Support (UEFI only) | Windows 10 IoT Enterprise 64-bit Linux (Kernel 5.4) Ubuntu 20.04 LTS |
| BSP | Full Board Support Package and ready-to-run images |
* Optional feature available on this product
