MCM-iMX93: NXP i.MX93 SMD SOM
MCM-iMX93: NXP i.MX93 SMD SOM
A55

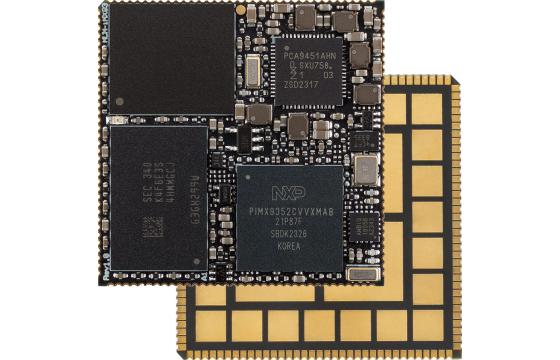

MCM-iMX93 is an ultra-miniature Solder-Down System-on-Module (SoM) optimised for shock and vibration resistance and SMT assembly and reflow soldering. An ideal solution for cost space constrained and portable applications.
| Feature | Specification |
|---|---|
| CPU Architecture | ARM Cortex A55 |
| CPU Manufacturer | NXP |
| CPU Model | i.MX9352 Dual-Core i.MX9331 Single-Core |
| CPU Frequency | Up to 1.7GHz |
| NPU (Dual Core) | AI/ML Neural Processing Unit Arm® Ethos™ U-65 microNPU |
| Real Time Co-Processor | ARM Cortex-M33, 250Mhz |
| Memory | Up to 2GB LPDDR4 |
| Onboard Storage | Up to 64GB eMMC flash |
| Display Interface | MIPI-DSI, 4 data lanes, up to 1080p60 LVDS, 4 lanes, up to 1366 x 768 p60 Parallel RGB, 24-bit, up to 1366 x 768 p60 |
| Display Resolution (Max) | 1080p |
| TouchScreen Controller | CTP support through SPI and I2C interfaces |
| Audio | S/PDIF input/output Up-to 3x I2S / SAI |
| Camera | MIPI-CSI, 2 data lanes |
| Ethernet Ports | 2 x Gigabit RGMII |
| USB | 2x USB2.0 dual-role ports |
| UART/Serial | Up to 8 |
| CAN-FD bus | Up to 2 |
| SD/SDIO | Up to 2 |
| SPI | Up to 8 |
| I2C | Up to 6 |
| PWM | Up to 6 |
| ADC | Up to 4 |
| GPIO | Up to 80 |
| Power Supply Voltage | 3.45V – 5.5V |
| Dimensions | 30 x 30 x 3 mm |
| OS Support | Full Board Support Package and ready-to-run images Linux kernel, Yocto Project BSP and U-Boot Support for Docker, MS Azure IoT and Node-RED Support for OTA updates with Mender Support for BalenaOS platform |
* Optional feature available on this product
Click on image to expand

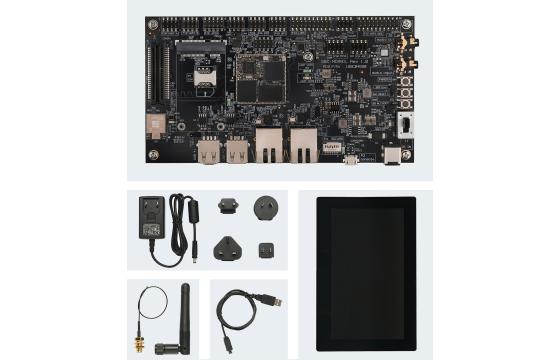

MCM-iMX93 Development Kit
Hardware
- MCM-iMX93-C1700D-D2-N32 SOM assebled on SB-MCMIMX93 carrier-board
- Optional 7" LVDS LCD with touch panel
- Optional: Quectel EG25G LTE cekkukar modem
- WiFi antenna and cable
- Cables and adapters
- 12V power supply
Technical support
- Technical support for 12 months.
- Schematics review of the customer's carrier board design.
- LCD panel compatibility verification and driver adaptation service.
- 45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for their needs.
Bringing your product to life with compliance, reliability and performance in mind
At Anders we understand that no two customers are the same, which is why we specialise in custom embedded solutions and offer a unique products tailored to the end application. Please contact us for more information.
Embedded Board Design
Custom board design of any shape or size to your exact application specifications.
Hardware Design
Custom board design of any shape or size to your exact application specifications.
Software Integration
Support for display initialisation, porting (touch) drivers, enabling hardware control and more.
Mechanical Integration
Display and embedded integration: enclosures, mounting holes, gaskets, cable assembly and more.
