12362-AND-SOM-WiFi-HaLow Connectivity Module - NEW PRODUCT
12362-AND-SOM-WiFi-HaLow Connectivity Module - NEW PRODUCT
AND-SOM-WiFi-HaLow is a complete connectivity module powered by Morse Micro MM6108 single-chip SoC, which is compliant with IEEE 802.11ah standard, and an ARM Cortex-M33 ultra-low-power MCU that offers a variety of functions. This smart module is designed to be integrated into any embedded device to provide a simplified Wi-Fi HaLow connection solution for customers looking to easily upgrade their previous RF technology.
- Morse Micro MM6108
- STM32U, 784KB SRAM, 2MB Flash
- SPI slave interface
- WiFi IEEE 802.11ah
- 850MHz and 950MHz bands
- Range of I/O
The information provided on this page is subject to change without notice. Please contact us for additional information.
| Feature | Specification |
|---|---|
| Part Number | 12362 |
| SoC | Morse Micro MM6108 |
| MCU | STM32U, 784KB SRAM, 2MB Flash |
| WiFi Standard | IEEE 802.11ah |
| Frequency Range | (Sub 1GHz bands) 850MHz – 950MHz |
| Channel Band | 1 / 2 / 4 / 8 MHz |
| Data rate | 1MHz 3.33Mbps (max) 2MHz 7.22Mbps (max) 4MHz 15Mbps (max) 8MHz 32.5Mbps (max) |
| Security | AES encryption engine SHA1 and SHA2 has functions (SHA-256, SHA-384, SHA-512) PA3 including protected management frames |
| Pin Signals | 2 x I2C, 2 x SPI, 5 x UART, 1 x USB, 1 x CAN, 15 x ADC, 2 x DAC, 34 x GPIO, JTAG supported |
| Antenna | 1 x HaLow U.FL antenna connector |
| Power Supply Voltage | VCC 3.3V VDD_FEM: 3.3V VCC_WIFI: 3.3V |
| Dimensions | 30.5 x 24.5 x 2.99mm |
| Operating Temperature | -40° to +85°C |
| Storage Temperature | -40° to +90°C |
* Optional feature available on this product
Click on image to expand

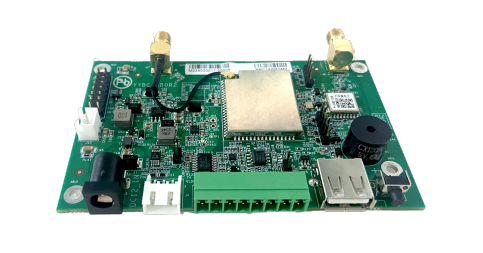

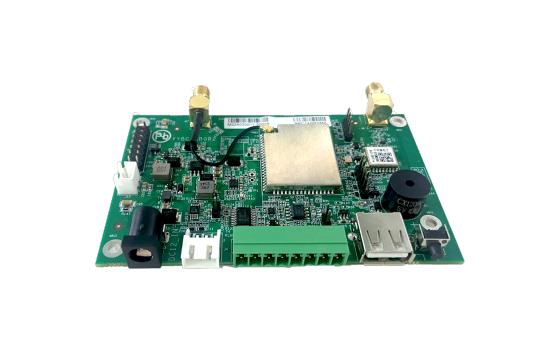

Development Kit
Hardware
- AND-SOM-AH system on module soldered on a carrier board
- A 12V/1A power adapter
