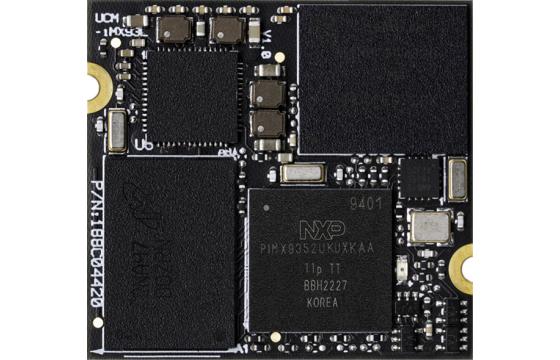

UCM-iMX93L: NXP i.MX93 SOM

UCM-iMX93L: NXP i.MX93 SOM UCM-iMX93L: NXP i.MX93 SOM

UCM-iMX93L: NXP i.MX93 SOM

ARM
A55
2GB

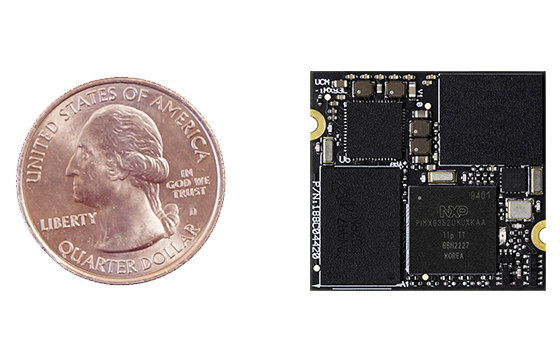

UCM-iMX93L is an ultra-miniature System-on-Module (SoM) optimised for industrial applications and an ideal solution for cost sensitive systems such as Smart Home and Building Control. It features an integrated AI/ML Neural Processing Unit for performing computational tasks at the edge of the network.

  • Dual-core ARM Cortex-A55 CPU, 1.7GHz
  • Ultra low power 0.5 - 2.5 W
  • Integrated AI/ML Neural Processing Unit
  • Real-time ARM Cortex-M33 co-processor
  • Wide operating temperature range of -40°C to +85°C
  • Guaranteed to be available until 2038
    Read more
  • UCM-iMX93L: NXP i.MX93 SOM
  • UCM-iMX93L: NXP i.MX93 SOM
  • UCM-iMX93L: NXP i.MX93 SOM
  • UCM-iMX93L: NXP i.MX93 SOM
  • UCM-iMX93L: NXP i.MX93 SOM
  • UCM-iMX93L: NXP i.MX93 SOM
  • UCM-iMX93L: NXP i.MX93 SOM
  • UCM-iMX93L: NXP i.MX93 SOM
FeatureSpecification
CPU Architecture ARM Cortex A55
CPU Manufacturer NXP
CPU Model i.MX9352 Dual-Core
i.MX9331 Single-Core
CPU Frequency Up to 1.7GHz
NPUAI/ML Neural Processing Unit
Arm® Ethos™ U-65 microNPU
Real Time Co-Processor ARM Cortex-M33, 250Mhz
MemoryUp to 2GB LPDDR4
Onboard Storage Up to 64GB eMMC flash
Display Interface MIPI-DSI, 4 data lanes, up to 1080p60
LVDS, 4 lanes, up to 1366 x 768 p60
Display Resolution (Max) 1080p
TouchScreen Controller CTP support through SPI and I2C interfaces
AudioS/PDIF input/output
Up-to 2x I2S / SAI
CameraMIPI-CSI, 2 data lanes
Ethernet Ports Gigabit Etherney port (MAC+PHY)
Secondary RGMII
USB2x USB2.0 dual-role ports
UART/Serial Up to 7
CAN-FD busUp to 2
SD/SDIO Up to 2
SPIUp to 7
I2CUp to 6
PWMUp to 6
ADCUp to 4
GPIOUp to 65
Power Supply Voltage 3.45V – 5.5V
Dimensions28 x 30 x 4 mm
OS Support Full Board Support Package and ready-to-run images
Linux kernel, Yocto Project BSP and U-Boot
Support for Docker, MS Azure IoT and Node-RED
Support for OTA updates with Mender
Support for BalenaOS platform

* Optional feature available on this product

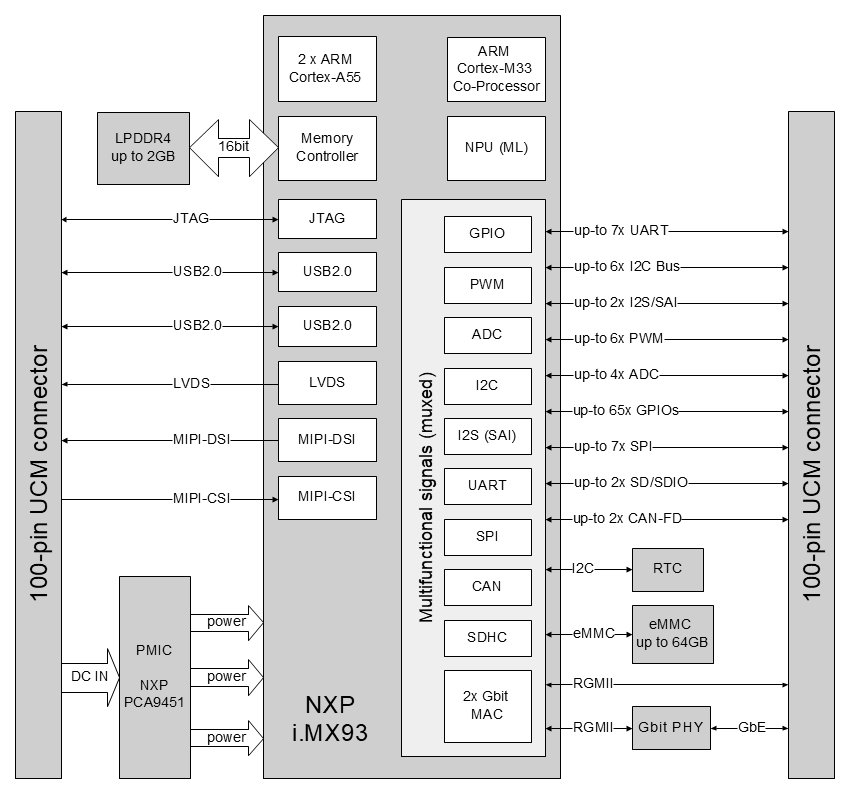

Block Diagram Click on image to expand

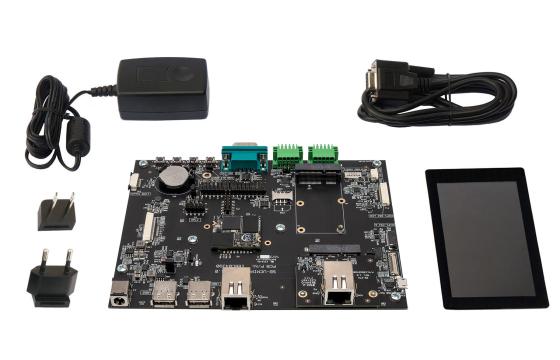

UCM-iMX93 Development Kit

UCM-iMX93 Development Kit

Hardware

  • UCM-iMX93L dual core 1.7GHZ with NPU, 2GB DRAM, 32GB Storage. Ethernet
  • SB-UCMIMX93 carrier board
  • Optional 7" LVDS LCD with touch panel
  • Optional: Quectel EG25G LTE cekkukar modem
  • Cables and adapters
  • 12V power supply

Technical support

  • Technical support for 12 months.
  • Schematics review of the customer's carrier board design.
  • LCD panel compatibility verification and driver adaptation service.
  • 45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for their needs.
