IOT-LINK Industrial IoT Gateway - NEW PRODUCT
IOT-LINK Industrial IoT Gateway - NEW PRODUCT
A55
IOT-LINK is a built for system integrators and OEMs and is a fuly rugged, mesh-ready, edge-inteligent platform designed to simplfy and accerate your next generation IoT deployment.
- Powered by the energy efficiient NXP i.MX9352 SoC
- LAN, WiFi, BT, RS485 or CAN-FD
- Zigbee, Thread and Bluetooth Mesh
- Secure boot, TPM and hardware watchdog
- Miniature form factor: 83 x 28 x 55 mm
- Extended temperature
- Supports DIN-rail and wall mounting
- 5-Year warranty with full support
- Custom OS builds, bootloader or enclosure branding available
| Feature | Specification |
|---|---|
| CPU Model | NXP i.MX9352, dual-core ARM Cortex-A55, 1.7GHz |
| Memory | 1GB – 2GB, LPDDR4 |
| Storage | 16GB – 64GB eMMC flash, soldered on-board |
| Real-Time Co-Processor | ARM Cortex-M33, 250Mhz |
| Cellular Modem | 4G/LTE CAT-1 bis cellular module, SIMCOM SIM7672 Worldwide LTE, UMTS/HSPA |
| WiFi and Bluetoooth | 802.11ax WiFi 6 and Bluetooth 5.4 BLE Implemented with NXP IW611 module 1x RP-SMA antenna connector |
| Wireless Mesh | Bluetooth mesh, Thread, Zigbee Nordic Semiconductor nRF52840 / Silicon Labs MGM240 |
| Bluetooth | Optional 5.2 |
| LAN | 1x Gbit Ethernet, RJ45 connector |
| RS485/CAN bus | Up-to 2x RS485 (2-wire) | CAN-FD ports Terminal-block connector |
| Digital I/O | 3x digital outputs / inputs 24V compliant with EN 61131-2, terminal-block connector |
| USB | 1x USB2.0 host port, type-C connector |
| Power Supply Voltage | 12V to 24V |

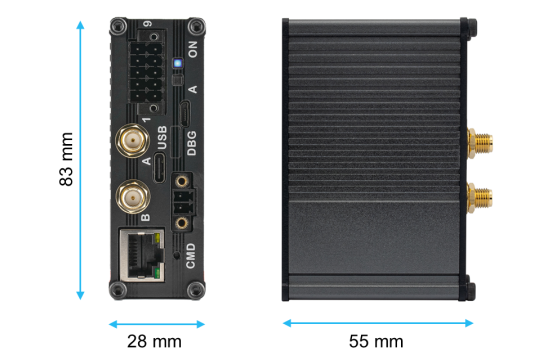

| Dimensions | 83 x 28 x 55mm |
| OS Support | Fully Open Software Architecture Docker, MS Azure IoT and Node-RED Support for OTA updates with Mender Modbus RTU, Modbus TCP and MQTT Support for BalenaOS platform |
| Operating Temperature | Commercial: 0° to 60°C Industrial: -40° to 80°C |
* Optional feature available on this product
Click on image to expand
Accessories
The following additional accessories are also available to order. Please contact us for more information.

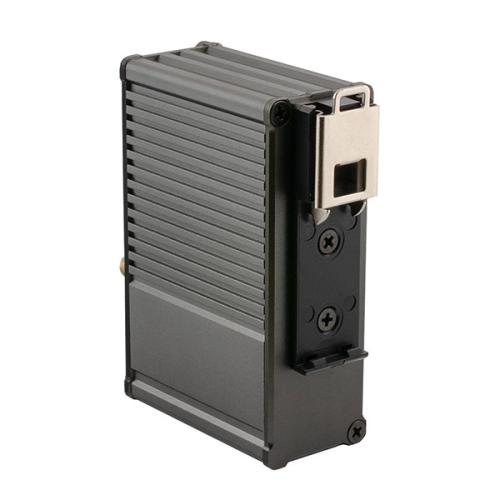

DIN Rail Clip
Clip for mounting the gateway on a DIN rail
Horizontal Mounting Bracket
Bracket for mounting the gateway on a surface

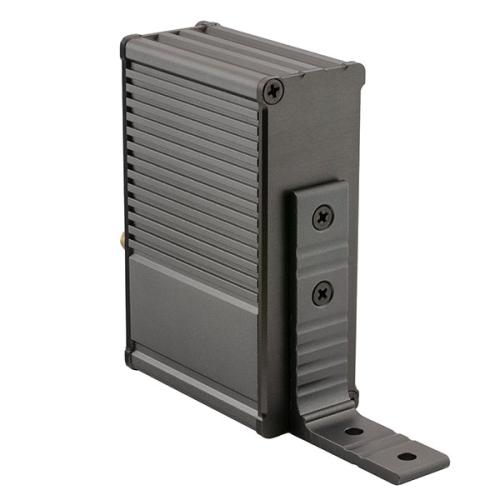

Vertical Mounting Bracket
Bracket for mounting the gateway on a surface
Cellular Antenna
Cellular rubber duck antenna with SMA connector
Can be used together with cellular antenna extender or assembled on the gateway SMA connector
Cellular Antenna Extender
2m antenna extender cable with magnetic mount
Should be used together with cellular antenna

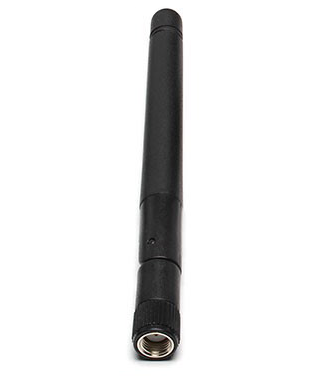

WiFi / BT Antenna
2.4GHz / 5GHz rubber duck antenna with RP-SMA connector

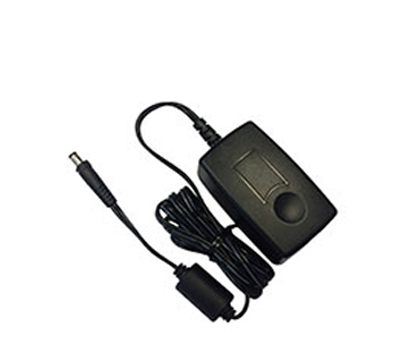

PSU with Terminal Plug Adapter
Wall mount PSU with terminal plug adapter
Input 100-240VAC 50/60Hz, 36W output 12VDC 3A
Includes US, EU, UK, AU AC blades
