12189-AND-SBC-RK3568 - NEW PRODUCT
12189-AND-SBC-RK3568 - NEW PRODUCT
A55

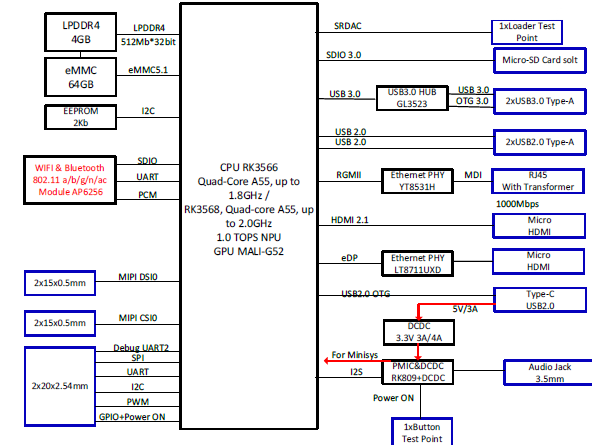

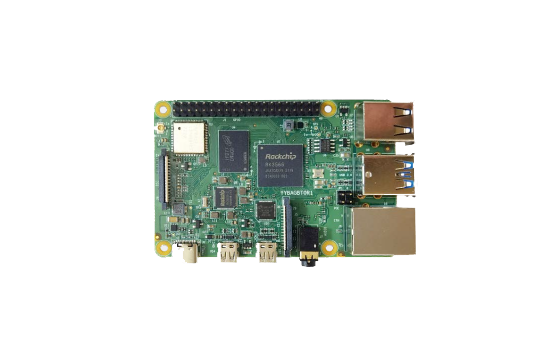

AND-SBC-RK3568 is Single Board Computer built around Rockchip RK3568 processor chipset which integrates a quad-core ARM Cortex-A55 CPU, high performance graphics, and NPU for edge AI applications.
- Rockchip RK3568, quad-core Cortex-A55, 2GHz
- ARM-Mali G52 GPU
- 4GB RAM and 64GB eMMC
- Ethernet, WiFi & BT connectivity
- Android 11, Debian 11
The information provided on this page is subject to change without notice. Please contact us for additional information.

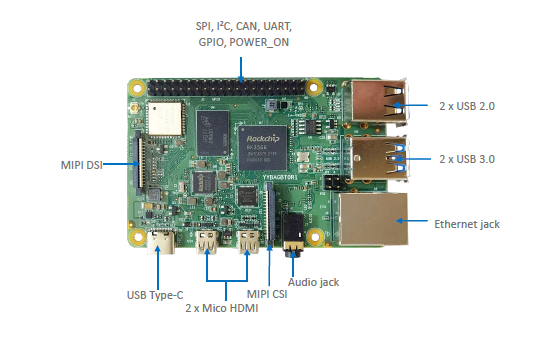

| Feature | Specification |
|---|---|
| Part Number | 12189 |
| CPU Architecture | RK3568, Quad-core ARM Cortex-A55 processor, up to 2.0GHz |
| GPU | ARM Mali-G52 GPU |
| Memory | 4GB LPDDR4 (Optional 8GB) |
| Storage | 64GB eMMC Micro-SD slot |
| WiFi/BT | WiFi 2.4GHz/5GHz Bluetooth 5.0 |
| Display Interface | 1 x Dual-lane MIPI DSI 2 x HDMI supporting 4K + 1080p (Extended mode support) |
| Camera | 1 MIPI CSI |
| Audio | 1 x 3.5mm combo audio jack |

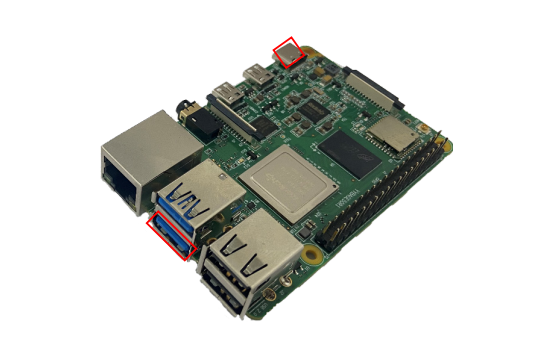

| USB | 2 x USB 2.0 Host, Type-A 2 x USB 3.0 Host, Type-A 1 x USB 2.0, Type-C (power in/data transfer/OTG) |
| GPIO | 1 x GPIO |
| I2C | 2 x I2C |
| SPI | 2 x SPI |
| UART | 5 x UART |
| CAN | 2 x CAN |
| POWER_ON | 1 x POWER_ON |
| Antenna | 1 x WiFi & BT antenna |
| Power Supply Voltage | 5V/3A DC, USB Type-C |
| Dimensions | 85 x 56mm |
| OS Support | Android 11 Debian 11 |
* Optional feature available on this product
