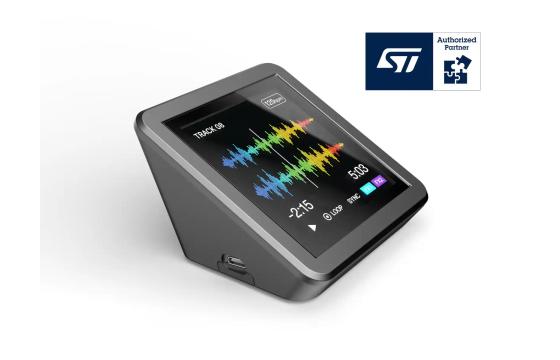

DRAGONEYE-U5 with 4.0" Capacitive Touch Display & STM32 MCU
DRAGONEYE-U5 with 4.0" Capacitive Touch Display & STM32 MCU
IPS-TFT
4"
300
MIPI
RGB
ARM
M33
M33
Powered by STM32 microcontroller technology, DRAGONEYETM is a pre-developed hardware and software development platform to accelerate your time to market. Test GUI designs, optimise display performance, refine software control and I/O comm ports with ease.
- STM32U5 with high performance Arm® Cortex®-M33
- 4.0" IPS-TFT capacitive touch display with 480x480 pixels
- 3MB RAM, 4MB internal flash and 64MB external flash
- MIPI / 24 bit parallel RGB interface
- Extensive connectivity including UART, CAN, SPI, GPIO
- GbE, Wifi/BT
- Supports Touch GFX UI designer software
- STMcube package including Anders BSP support
Available Now
Specifications
Development Kit
Customisation
| Feature | Specification |
|---|---|
| Part number | 12609 |
| MCU Manufacturer | STMicroelectronics |
| Microcontroller | STM32U5G9NJH6Q |
| CPU | Arm® Cortex®-M33 with 32-bit advanced high performance bus |
| CPU Frequency | 160MHz |
| GPU | NeoChromVG GPU |
| Memory | 3MB of RAM 4MB of Internal Flash 64MB of External-Flash |
| Network | Bluetooth LE: Bluetooth 5.0, Bluetooth mesh. Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps Wi-Fi: IEEE 802.11 b/g/n-compliant. Supports 20 MHz, 40 MHz bandwidth in 2.4 GHz ban |
| I/O | UART / CAN / SPI / I2C / GPIO |
| OS Support | FreeRTOS porting available |
| Display & Resolution | 4.0" Capacitive Touch Display 480 x 480 |
| LCD Interface | MIPI / 24-bit parallel RGB |
| Viewing Direction | 80/80/80/80 |
| Display Brightness | 330cd/m2 |
| Contrast Ratio | 1000:1 |
| Input Technology | Capacitive Touch Sensor (ST1633i IC) |
| Programming / Debugging Methods | SWD interface for external ST-Link debugger/programmer USB-C Programming/Debugging without external tools |
| Power Supply Voltage | 5VDC regulated, 0.5A |
| Active Area | 71.86mm x 70.18mm |
| Display Dimensions | 83.6mm x 83.6mm x 4.11mm |
| Power Consumption | ~2.0W Max (Based on maximum display luminance) |
| Operating Temperature | -20˚C to +70˚C |
| Storage Temperature | -30°C to +80°C |
* Optional feature available on this product

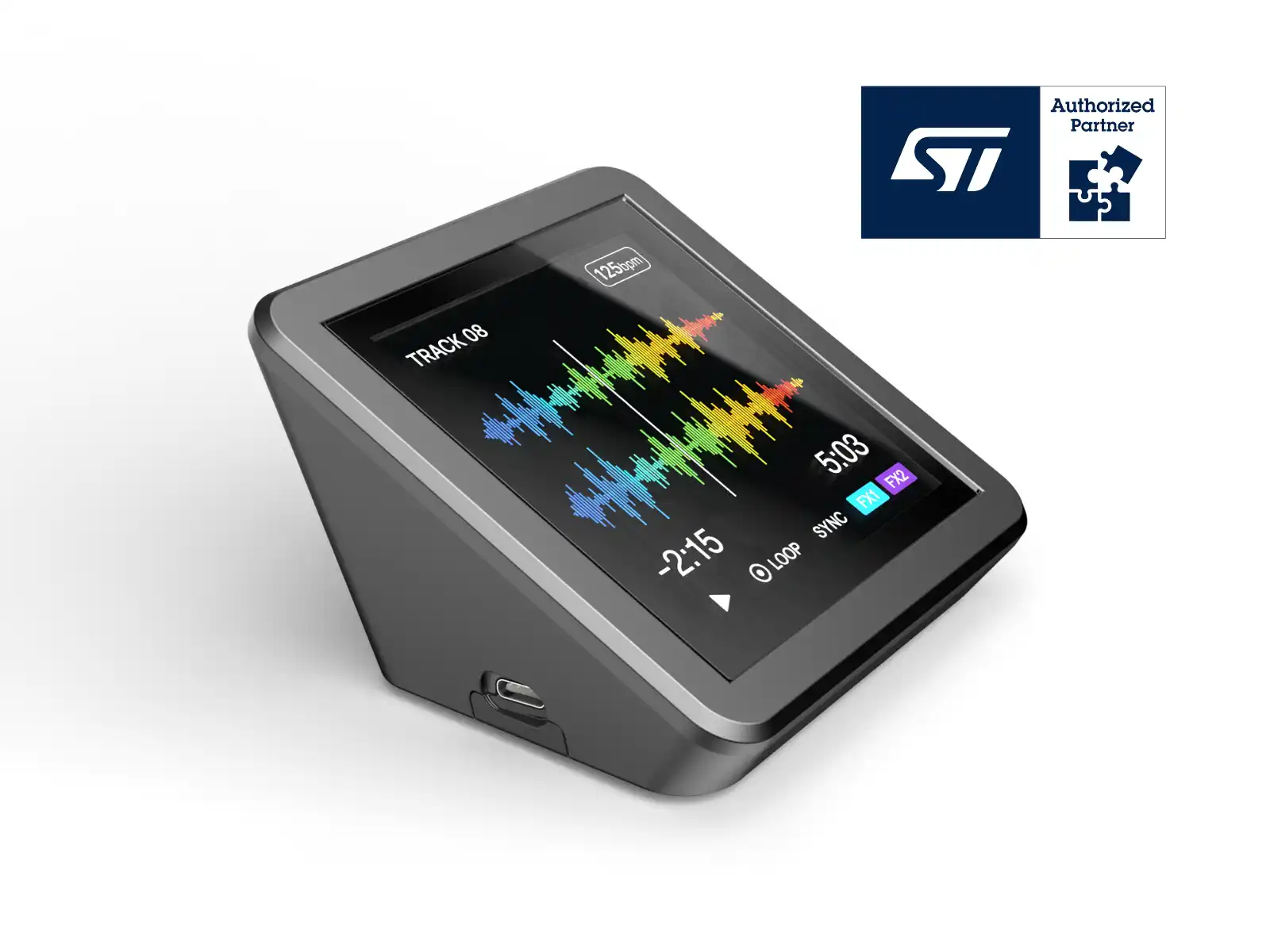

Development Kit
Development Platform with pre-integrated drivers and demonstration GUI developed using TouchGFX, comes pre-loaded and ready to run as soon as the device is powered on.
Kit Contents:
- DRAGONEYETM Touch Development Platform
- Pre-integrated hardware components
- Pre-integrated software driver package (BSP)
- 4.0" CTP display (480 x 480)
- Built-in ST-Link debugger/programmer with µUSB interface
- USB cable
-
Quick start guide
Bringing your product to life with compliance, reliability and performance in mind
Customisation & Production Support
- Custom PCBA design (I/O, connectors, BOM optimisation)
- Display configuration
- Touch firmware tuning - gloved hands etc.
- Coverlens design - branding, films & filters
- Enclosure design and mounting options
Full lifecycle support from Anders - from evaluation to production.
Contact Us to discuss your requirements
