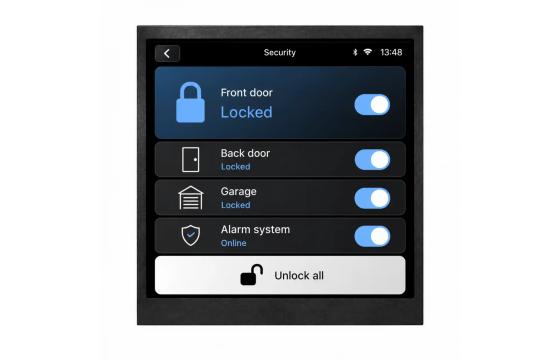

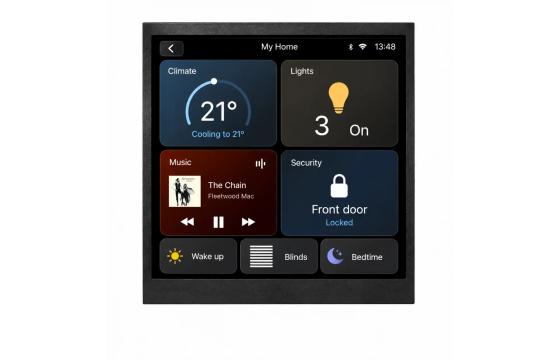

4.0" Square IPS TFT Display
4.0" Square IPS TFT Display
High brightness, square IPS TFT display module delivers high contrast and all round viewing angles. Suitable for use in applications such as IOT Devices, home automation, domestic and industrial control panels.
- 4'' full colour square IPS TFT display
- All round viewing angle
- Wide operating temperature
- MIPI Interface
This display is featured in our DRAGONEYE™ development platform featuring STM32-U5 Microcontroller.
Find out more
| Feature | Specification |
|---|---|
| Part Number | 12696 |
| Screen Size | 4.0" |
| Resolution | 480 x 480 |
| Brightness | 330 |
| Contrast Ratio | 800:1 |
| Touchscreen | CTP |
| Interface | MIPI |
| Operating Temperature | -20° to 70°C |
| Module Dimensions | 83.6 x 83.6 x 4.11mm |
| Active Area | 71.86 x 70.18mm |
* Optional feature available on this product

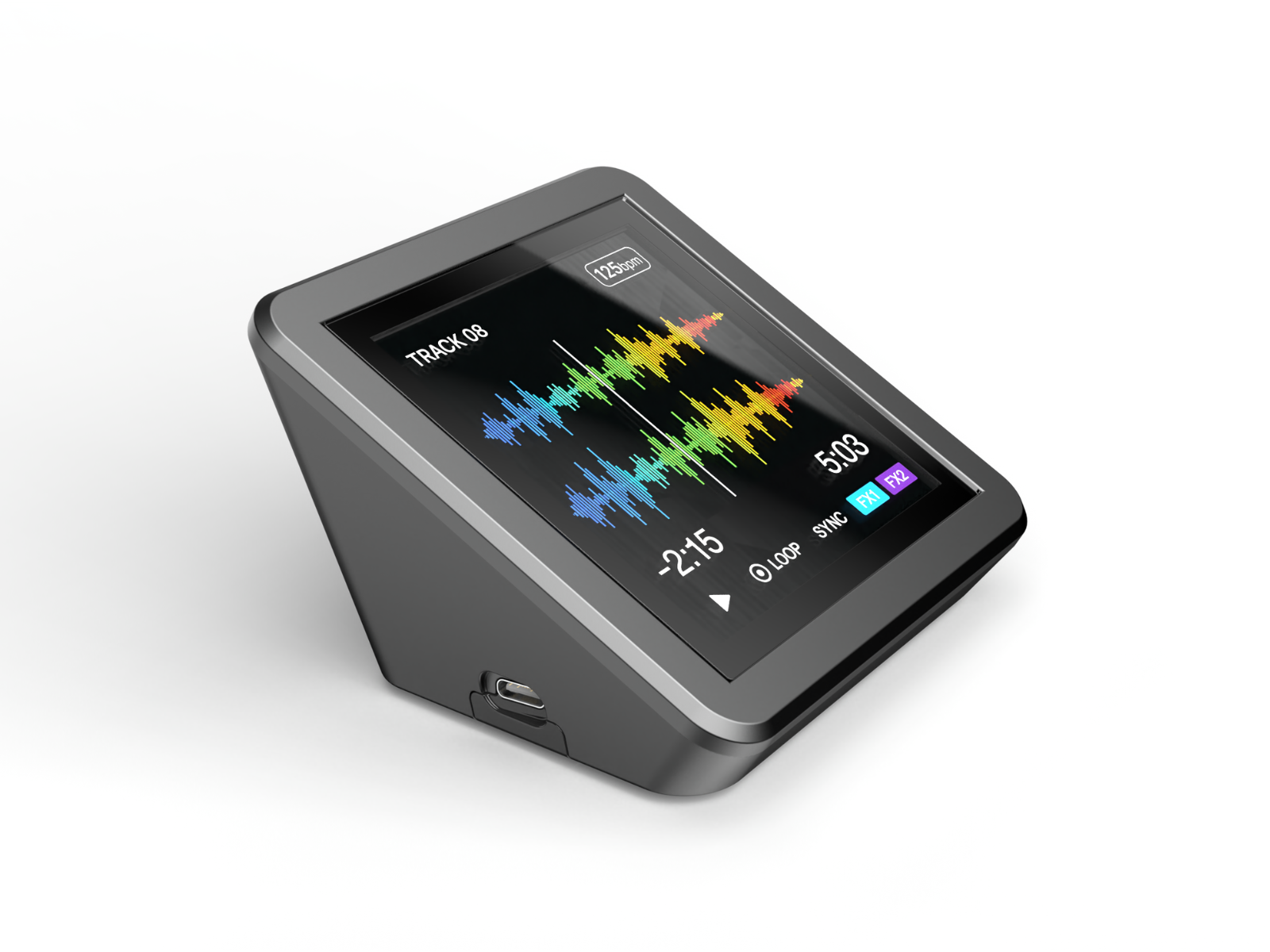

DRAGONEYE Development Platform
Powered by STM32 microcontroller technology, DRAGONEYETM is a pre-developed hardware and software development platform to accelerate your time to market. Test GUI designs, optimise display performance, refine software control and I/O comm ports with ease.
- STM32U5 with high performance Arm® Cortex®-M33
- 4.0" IPS-TFT capacitive touch display with 480x480 pixels
- 3MB RAM, 4MB internal flash and 64MB external flash
Find out more and order your kit
Send EnquiryBringing your product to life with compliance, reliability and performance in mind
Coverlens Design
From shape, size glass material and thickness to hidden til lit icons and printing, make your product stand out.
Optical Bonding
Improve screen readability outdoors and strength of your display with optical bonding.
Touch and Firmware
Optimum touch ICs and firmware tuning for flawless performance including gloved touch and water rejection.
Glass Coatings & Filters
Optimum performance using films and filters including anti-reflective, anti-glare or protective coatings.
Backlight Enhancement
Adapting display brightness to suit the application requirements.
