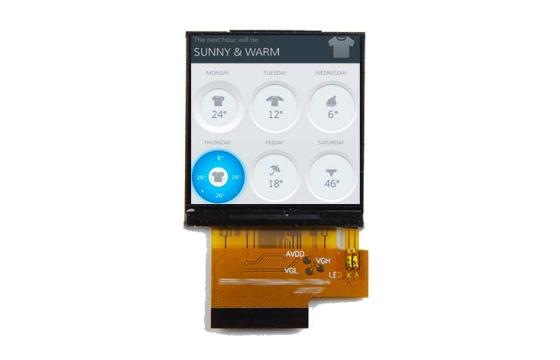

1.54" Square IPS TFT LCD Display SPI/RGB interface
1.54" Square IPS TFT LCD Display SPI/RGB interface
IPS-TFT
1.54"
430
RGB
SPI
This 1.54" full colour square IPS TFT LCD Display module features wide viewing angles and low power consumption and is in a very low profile, streamlined package. Its square shape and high optical perfomances makes it suitable for small handheld electronic devices such as remote controls and test equipment for Industrial, Medical, Consumer Electronics and Broadcast applications.
All our displays can be customised by our in-house engineering team to meet your application requirements, from optical enhancements, touch optimisation to hardware, software and mechanical integration. Discover all our design services here.
Contact us for a demo or samples.
Specifications
| Feature | Specification |
|---|---|
| Part Number | 11569 |
| Screen Size | 1.54" |
| Resolution | 240 x 240 |
| Touch Type | None (Optional CTP or RTP) |
| Brightness | 430 cd/m2 |
| Aspect Ratio | 1:1 |
| Contrast Ratio | 300 |
| Interface | SPI / RGB |
| Orientation | Landscape |
| Dimensions | 31.8 x 33.7 x 1.5 mm |
| OP Temperature | -20° to +70°C |
* Optional feature available on this product
