UCM-iMX95: NXP i.MX95 SOM - NEW PRODUCT
UCM-iMX95: NXP i.MX95 SOM - NEW PRODUCT
A55
UCM-iMX95 is an ultra-miniature System-on-Module (SoM) with high performance graphics and image processing, optimised for industrial applications and offering up to 6 ARM Cortex A55 Cores.
- Up to 6 ARM Cortex-A55 CPU, 2.0GHz
- Two real-time co-processors: ARM Cortex-M7/ARM Cortex-M33
- Up to 16GB LPDDR5 and 128GB eMMC
- eIQ® Neutron NPU with 2 TOPS of AI/ML processing
- High performance graphics with ARM Mali GPU
- Scalability with Pin2Pin SOM family compatibility
- Wide operating temperature range of -40°C to +85°C
- Longitivity up to 15 years
The information provided on this page is subject to change without notice. Please contact us for additional information.
| Feature | Specification |
|---|---|
| CPU Architecture | NXP i.MX95, ARM Cortex A55, up to 6x cores, 2.0GHz |
| GPU | ARM Mali GPU OpenGL® ES 3.2, Vulkan® 1.2, OpenCL™ 3.0 |
| VPU | 4K video decode and encode |
| NPU | eIQ® Neutron NPU (2 TOPS) |
| Real Time Co-Processor | ARM Cortex-M7 + ARM Cortex-M33 |
| Memory | Up to 16GB LPDDR5 |
| Onboard Storage | Up to 128GB eMMC flash |
| Display Interface | MIPI-DSI, 4 data lanes, up to 4kp30 or 3840 x 1440p60 LVDS, 2x 4 lanes or 1x 8 lane, up to 1080p60 |
| TouchScreen Controller | CTP support through SPI and I2C interfaces |
| Camera | 2 x MIPI-CSI, 4 data lanes |
| Digital Audio | S/PDIF input/output Up-to 5x I2S / SAI |
| Ethernet Ports | Gigabit Ethernet port (MAC+PHY) Secondary RGMII 10GbE MAC |
| WiFi/BT | Certified 802.11ax WiFi BT 5.3BLE |
| PCI Express | 2x PCIe Gen 3 1x lane |
| USB | 1x USB3.0 + 1x USB2.0 |
| UART/Serial | Up to 8 |
| CAN bus | Up to 5 |
| SD/SDIO | Up to 2 |
| SPI | Up to 8 |
| I2C | Up to 7 |
| PWM | Up to 6x general purpose PWM signals |
| ADC | Up-to 8x general-purpose ADC inputs |
| GPIO | Up to 75x GPIO (multifunctional signals shared with other functions) |
| Power Supply Voltage | 3.45V – 4.4V |
| Dimensions | 28 x 40 x 5 mm |
| OS Support | Full Board Support Package and ready-to-run images Linux kernel, Yocto Project, RTOS BSP and U-Boot Mainline Linux Kernel Support |
* Optional feature available on this product

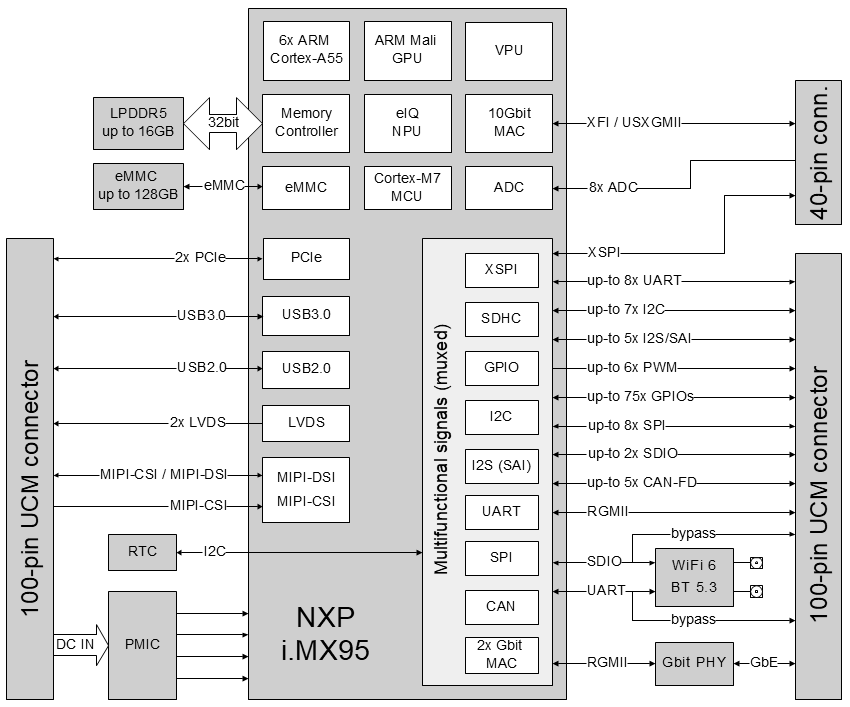

Click on image to expand

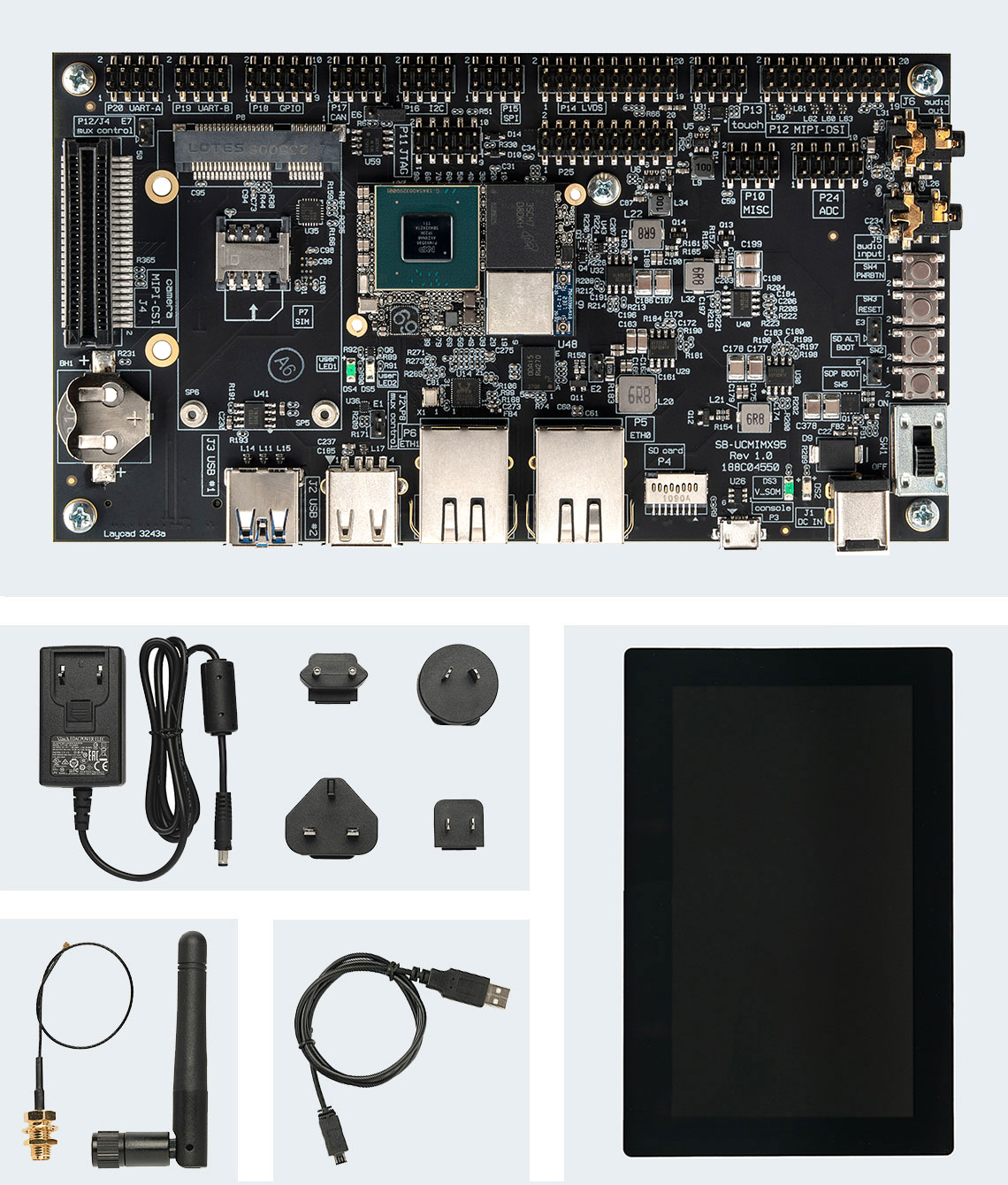

Development Kit
Hardware
- UCM-iMX95-C1800HM-D8-N64-E-WB-H
- SB-UCMIMX95 carrier board
- Optional: 7" LVDS LCD with touch panel
- Optional: Quectel EG25G LTE cellular modem
- Cables and adapters
- 12V power supply
Technical Support
- Technical support for 12 months.
- Schematics review of the customer's carrier board design.
- LCD panel compatibility verification and driver adaptation service.
- 45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for his needs.
