Tensor-i22/AI Edge Computing PC


Tensor-i22/AI Edge Computing PC


Tensor-i22 is a configurable, fanless industrial computer based on the Intel Tiger Lake 11th Generation processor, designed for industrial automation, AI edge computing, robotics control, network security and monitoring, retail, media and more.

The Tensor-i22 can be provided with the Hailo-8™ AI accelerator, which allows edge devices to run deep learning applications at full scale more efficiently, effectively, and sustainably.

Designed for versatility and with 24/7 operation in mind, Tensor-i22 provides a wide range of capabilities with extended wired and wireless connectivity, industrial interfaces, and advanced storage and media capabilities. Customisation is easy with the wide range of FACETs (Function and Connectivity T-cards) to meet your application requirements  It features a fanless design in aluminum with shock, vibration, dust, and humidity resistance.

Tensor-i22 comes with a 5-Year warranty which includes full support, technical expertise and life cycle management and a 15 year availability.

  • Dual/ Quad-core Tiger Lake 11th gen
  • Up to 3 NVMe + SATA storage devices
  • 2x/4x Gigabit LAN
  • Wide multiple wireless connectivity options
  • Up to 20 COM ports: RS-232/RS-485
  • 12V – 56V DC power input
  • Up to 12 USB 3.1/2.0 ports
  • OS Support: Windows 10 Pro or Windows 10 IoT Enterprise LTSC, Windows 11 Pro, Linux Mint/Ubuntu
  • Tensor-i22/AI Edge Computing PC
  • Tensor-i22/AI Edge Computing PC
  • Tensor-i22/AI Edge Computing PC
  • Tensor-i22/AI Edge Computing PC
  • Tensor-i22/AI Edge Computing PC
  • Tensor-i22/AI Edge Computing PC
  • Tensor-i22/AI Edge Computing PC
  • Tensor-i22/AI Edge Computing PC

Request a sample for evaluation

For the full datasheet, sample and pricing requests, please complete the form below and we’ll come back to you asap.

Submitting your details tells us you’re OK with our cookie policy. We may send you technology and product updates which you can opt out of at any time using the link in the email.

CPU Architecture X86
CPU Manufacturer Intel
CPU Model Intel® Core i7-1185G7E 4 Core | Base: 1.8/2.8 GHz, Boost: 4.4 GHz | TDP: 15/28 3 W | vPro
Intel® Core i5-1145G7E 4 Core | Base: 1.5/2.6 GHz, Boost: 4.1 GHz | TDP: 15/28 3 W | vPro
Intel® Celeron 6305E 2 Core | Base: 1.8 GHz | TDP: 15 W
MemoryUp to 64GB SO-DIMM DDR4 up to 3200MT/s
StorageUp to 3 NVMe/ SATA storage devices
NVMe or SATA on M.2 (PCIe x4 Gen. 4 or SATA 3)
Additional NVMe on M.2 (PCIe x4 Gen. 3)
Additional SATA on M.2
Additional SATA on 2.5” for SSD/HDD
Display Interface 4 independent displays
HDMI 2x HDMI 1.4b (up to 3840 x 2160 @ 30Hz)
2x MiniDP 1.2 (up to 4096 x 2160 @ 60Hz) Dual mode
Display Resolution (Max) 4096x2160
LANUp to 4
Wireless ConnectivityLTE/5G
Optional onboard module with WiFi-6E*
mini PCIe module, w/ micro-SIM tray
USB PortsUp to 12 USB 3.1 / 2.0 ports
In basic configuration 4x USB Type-A: 2x USB 3.1 + 2x USB 2.0
Up to 2 additional 4x USB 3.1 on USB Type-A
Up to 2 additional 4x USB 2.0 on USB Type-A
ExpansionSee Customisation Options
Power Supply Voltage 12V to 56V
Dimensions200 x 200 x 35.3mm
OS Support Windows 10 IoT Enterprise LTSC 2021/Windows Pro
Windows 11 Pro
Linux Mint/Ubuntu
Operating TemperatureCommercial: 0° to 45°C
Extended: -20° to 70°C
Industrial: -40° to 70°C

* Optional feature available on this product

Block Diagram Click on image to expand
Dimensions Click on image to expand

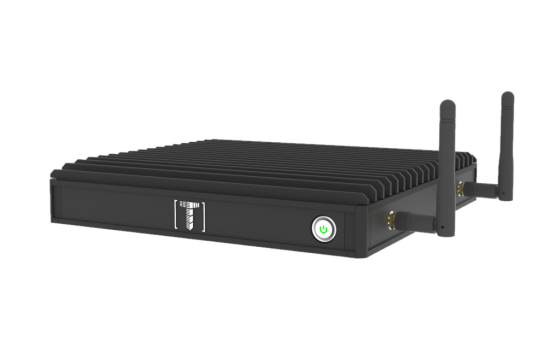

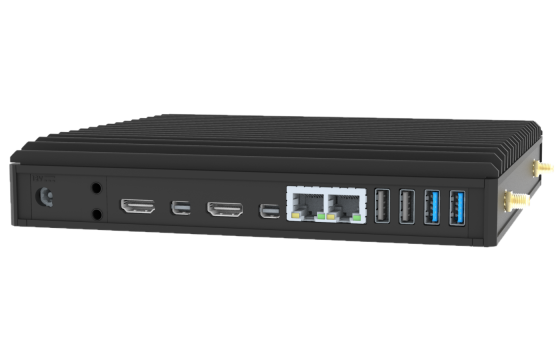

front and back panel Click on image to expand

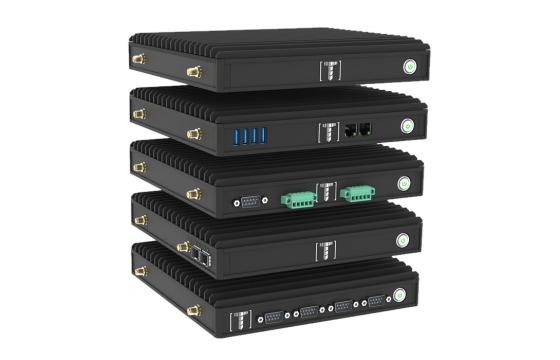

Customisation via FACET

Customisation via FACET

The Tensor-i22 is unique as it offers a range of FACETS (Function and Connectivity T-cards) for additional connectivity.

FACET cards currently available for Tensor-i22

  • FT.C-LAN2 - Additional 2x Gbit LAN
  • FT.EC-USB2V4 - Additional 4x USB 2.0
  • FT.ED-USB3PCIV4 - Additional 4x USB 3.0
  • FT.F-M2NVME for NVMe - Additional M.2 Key-M for NVMe
  • FT.F-M2NVME for SATA - Additional M.2 Key-M for SATA
  • FT.F-M2NVME for AI - Additional M.2 Key-M for AI module
  • FT.H-SER4 - 1-4 isolated RS232 or RS485
  • FT.HB-DB9 - DB9 connector for FT.H-SER4
  • FT.HA-SER1 - 1 port RS232
  • FT.I-M2B - Additional M.2 Key-B for modem
  • FT.J-M2E - Additional M.2 Key-E for Wi-Fi/BT
  • FT.L-PCIEmini - Mini PCIe compartment
  • FT.Q-CAN - Isolated CAN bus port
  • FT.S-GPIO - 4 – 20 isolated GPIOs
  • FT.V-TERM4 - Terminal block 4x for FT.S-GPIO
  • FT.T-SATA1 - SATA for 2.5” HDD/SSD
  • FT.U-POE2 - 2x Gbit LAN with PoE
  • FT.W-OPLN2-  2x Gbit LAN on SFP+ for optical LAN

Various customisation options are also available for Tensor-i22 housing and mounting. Contact us for more information.
