ECX700-AL: Intel Apollo Lake® Rugged PC

ECX700-AL: Intel Apollo Lake® Rugged PC ECX700-AL: Intel Apollo Lake® Rugged PC

ECX700-AL: Intel Apollo Lake® Rugged PC

x86
8GB

An extremely ruggedised PC for computing at the edge 24/7 in all weather conditions. Versatile I/O settings help integrators meet the demand for industrial automation, outdoor IoT edge computing, and marine vessels applications.

  • IP67/IP69K grade enclosure
  • Extreme rugged design to MIL-STD-810G 514.6C-2
  • Smart Vent (drains off water automatically)
  • Soldered down memory
  • Optional WiFi, LTE, CanBus
  • Long-term availability/15-year CPU life cycle

This product is manufactured by Canonical approved partner

  • ECX700-AL: Intel Apollo Lake® Rugged PC
  • ECX700-AL: Intel Apollo Lake® Rugged PC
  • ECX700-AL: Intel Apollo Lake® Rugged PC
  • ECX700-AL: Intel Apollo Lake® Rugged PC
  • ECX700-AL Rugged PC
  • ECX700-AL: Intel Apollo Lake® Rugged PC
  • ECX700-AL: Intel Apollo Lake® Rugged PC
  • ECX700-AL: Intel Apollo Lake® Rugged PC
  • ECX700-AL: Intel Apollo Lake® Rugged PC
FeatureSpecification
Part NumberECX700-AL (11516)
CPU Architecture X86
CPU Manufacturer Intel
Memory2GB/4GB/8GB DDR3L soldered down + 1 SODIMM up to 8GB
CPU Model Intel Atom® Processor E3900 Series, BGA 1296
Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6W
GraphicsIntel® HD Gen9
Display Interface 1 x HDMI: resolution up to 3840x2160@30Hz
StorageSupport EMMC up to 8G/16GB/32GB/64GB (optional)
LAN2 x GbE
USB2 x 3.0
Interface Expansion1 x Full-size Mini PCIe for 4G LTE module
1 x Full-size Mini PCIe for Canbus
1 x M.2 2230 (USB2.0/PCIe) for WiFi module
Power Supply Voltage 9V to 36V
Dimensions217 x 188 x 87 mm ( with wall-mount bracket)
OS Support Windows 10 IoT Enterprise 64-bit
Linux
TemperatureOperating: -40°C to +70°C
Storage: -40°C to +85°C
Standards and CeritficationsShock: Operation shock test: Half Sine Wave 15G, 11ms, 3 Shock Per Axis
Vibration: Operation Vibration test: MIL-STD-810G 514.6C-2, Figure 514.6C-2
Certifications: CE, FCC class A, ROHS
Construction:IP67/ IP69K enclosure

* Optional feature available on this product

Dimensions Click on image to expand

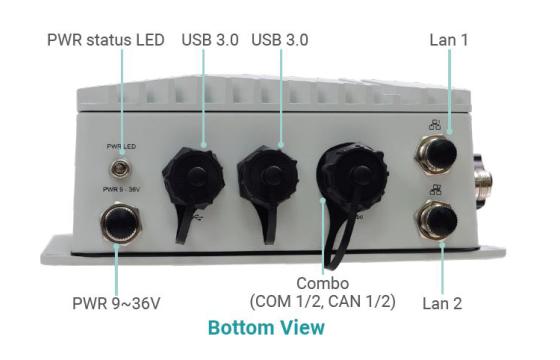

Bottom view Click on image to expand

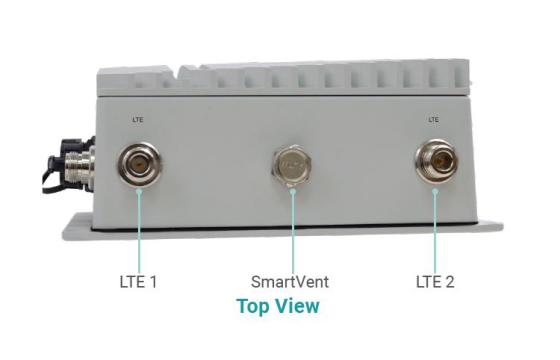

Top view Click on image to expand

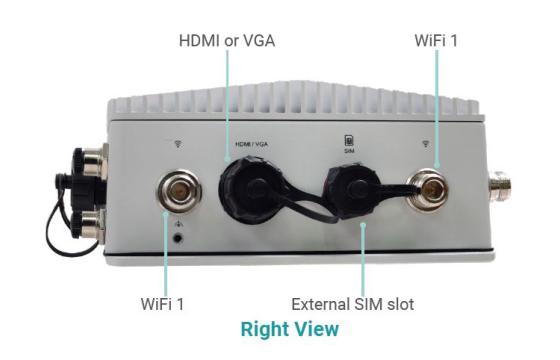

Right view Click on image to expand
