MCM-iMX8M-Plus: NXP i.MX8M Plus SOM
MCM-iMX8M-Plus: NXP i.MX8M Plus SOM
A53

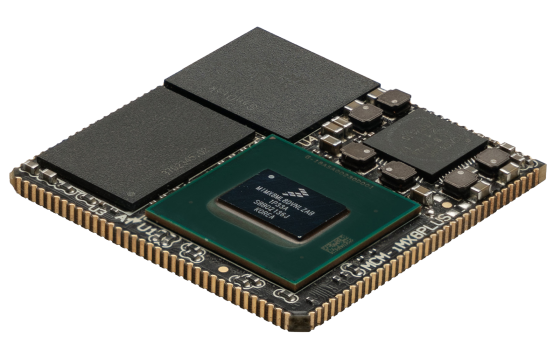

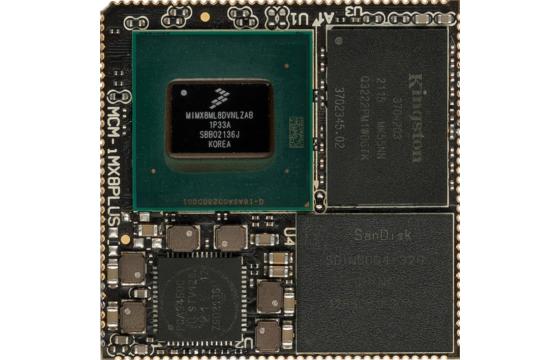

MCM-iMX8M Plus is an ultra-miniature Solder-Down System-on-Module (SoM) designed for SMT placement and reflow soldering. An ideal solution for cost space constrained and portable applications.
- Quad-core ARM Cortex-A53 CPU, 1.8GHz
- 2D/3D GPU, 1080p VPU
- Integrated AI/ML Neural Processing Unit
- Solderable as a regular QFN component
- Wide operating temperature range of -40°C to +85°C
- 15 year availability
| Feature | Specification |
|---|---|
| CPU Architecture | ARM Cortex A53 |
| CPU Manufacturer | NXP |
| CPU Model | i.MX8M Plus Quad-core i.MX8M Plus Quad-core (industrial temperature range) i.MX8M Plus QuadLite |
| CPU Frequency | Up to 1.8GHz |
| Real Time Co-Processor | ARM Cortex-M7, 800Mhz |
| Memory | Up to 8GB LPDDR4 |
| Onboard Storage | Up to 64GB eMMC flash |
| Display Interface | HDMI MIPI-DSI LVDS |
| Display Resolution (Max) | 1080p |
| TouchScreen Controller | CTP |
| Ethernet Ports | 2 (RGMII interface) |
| PCIe | Up to 1 (Gen 3.0) |
| USB 3.0 Ports Host | 2 |
| UART/Serial | Up to 4 |
| CAN bus | Up to 2 |
| SD/SDIO | Up to 2 |
| SPI | Up to 2 |
| I2C | Up to 5 |
| PWM | Up to 4 General Purpose |
| GPIO | Up to 115 |
| Power Supply Voltage | 3.45V – 4.4V |
| Dimensions | 30 x 30 x 3 mm |
| OS Support | Yocto Linux Debian Linux RTOS |
* Optional feature available on this product
Click on image to expand

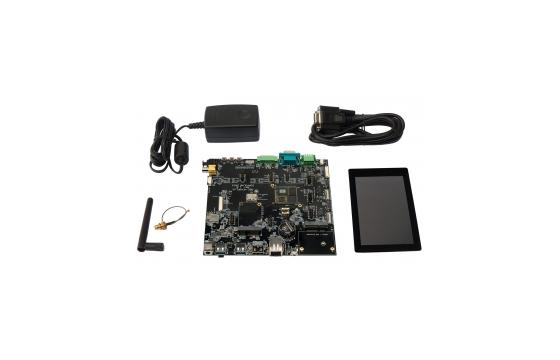

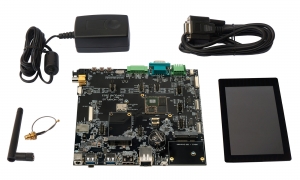

MCM-iMX8M-Mini Development Kit
Hardware
- MCM-iMX8PLUS-C1800QM-D4-N32 SOM assembled on SB-MCMIMX8PLUS carrier-board
- Optional 7" LVDS LCD with capacitive touch panel
- Serial port cable
- USB cable and adapter
- 12V power supply
Technical support
- Technical support for 12 months.
- Schematics review of the customer's carrier board design.
- LCD panel compatibility verification and driver adaptation service.
- 45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for his needs.
Kit price: $265
