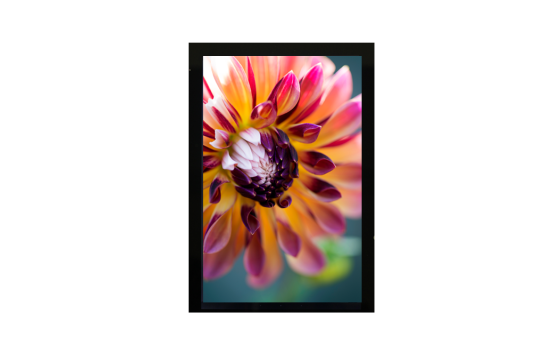

8.0" IPS TFT LCD Display MIPI interface + CTP
8.0" IPS TFT LCD Display MIPI interface + CTP
This high-performance 8.0" full colour IPS TFT display module features Capacitive Touch Panel and MIPI interface for easy hardware integration, ultra wide viewing angles, high contrast ratio. It is suitable for medical, industrial control panel and robotics, transportation, marine and smart appliances devices. Also suitable for outdoor applications.
- Screen Size: 8.0"
- Viewing Angle: All round
- Module size: 119.4 x 217.4 x 4.23mm
- Resolution: 800 (RGB) x 1280
- Brightness: 300cd/m2
- Interface: MIPI
- Touch: CTP
All our displays can be customised by our in-house engineering team to meet your application requirements, from optical enhancements, touch optimisation to hardware, software and mechanical integration. Discover all our design services here.
| Feature | Specification |
|---|---|
| Part Number | 12614 |
| Screen Size | 8.0" |
| Resolution | 800 x 1280 |
| Touch Type | PCAP |
| Brightness | 300 cd/m2 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200 |
| Interface | MIPI |
| Orientation | Portrait |
| Dimensions | 119.4 x 217.4 x 4.23mm |
| Active Area | 107.64 x 172.224mm |
| Operating Temperature | -10° to +50°C |
* Optional feature available on this product
Bringing your product to life with compliance, reliability and performance in mind
Coverlens Design
From shape, size glass material and thickness to hidden til lit icons and printing, make your product stand out.
Optical Bonding
Improve screen readability outdoors and strength of your display with optical bonding.
Touch and Firmware
Optimum touch ICs and firmware tuning for flawless performance including gloved touch and water rejection.
Glass Coatings & Filters
Optimum performance using films and filters including anti-reflective, anti-glare or protective coatings.
Backlight Enhancement
Adapting display brightness to suit the application requirements.
