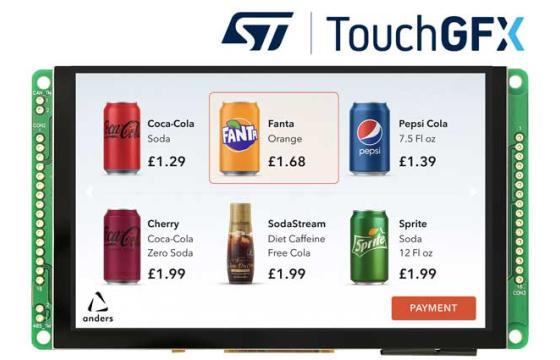

5.0" Smart TFT Display with CTP and CAN-BUS - High Brightness
5.0" Smart TFT Display with CTP and CAN-BUS - High Brightness
Smart Display with CAN Bus interface. Easy-to-use product which allows customers to develop projects rapidly in a very cost-effective way. Designed with STM32 microcontroller which supports ST development tools like TouchGFX and STM32CubeIDE.
- 5.0'' IPS-TFT high brightness display
- CAN-bus interface
- STM32F750 Microcontroller
- Capacitive Touch Panel
- Wide all round viewing angle
- Temperature range: -30°C to +80°C.
- Protocol: CANopen
| Feature | Specification |
|---|---|
| Part Number | 12364 |
| Screen Size | 5.0" |
| Resolution | 800 x 480 |
| Interface | CAN bus differential ± 3.3 |
| Protocol | CANopen |
| Brightness | 750 cd/m2 |
| Touchscreen | Capacitive Touch Panel |
| MCU | STM32F750 |
| Flash Memory | 16MB |
| Viewing Direction | 80/80/80/80 |
| Operating Temperature | -30° to 80°C |
| Module Dimensions | 132.7 ×75.8 ×12.5mm |
| Active Area | 108 x 64.8mm |
* Optional feature available on this product
Development Kit
Kit Contents:
- 5.0" Smart TFT Display
- USB-2 CAN Dongle
- 4 pin Power/Data Cable
- USB to Micro USB Cable
- Kit Part Number: 12446
Designed with STM32 microcontroller which supports ST development tools like TouchGFX and STM32CubeIDE.
image shown is a 7.0" display
