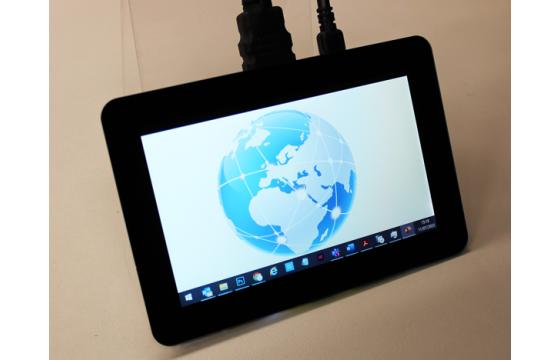

5.0" HDMI IPS-TFT Display Kit with Capacitive Touch
5.0" HDMI IPS-TFT Display Kit with Capacitive Touch
IPS-TFT
5"
Touch
370
HDMI
This 5.0" full colour IPS-TFT LCD display features HDMI interface and USB controlled PCAP touchscreen for easy integration with your existing hardware. Ideal for Industrial equipment, medical and home appliances applications and more.
All our displays can be customised by our in-house engineering team to meet your application requirements - see all options available here.
Specifications
Development Kit
| Feature | Specification |
|---|---|
| Part Number | 11706 |
| Screen Size | 5.0" |
| Resolution | 800 x 480 |
| Touch Type | Projected Capacitive |
| Brightness | 370 |
| Aspect Ratio | 5:3 |
| Contrast Ratio | 1500 |
| Interface | HDMI |
| Orientation | Landscape |
| Dimensions | 133.89 x 89.8 x 17 |
| OP Temperature | -20° to 70°C |
* Optional feature available on this product

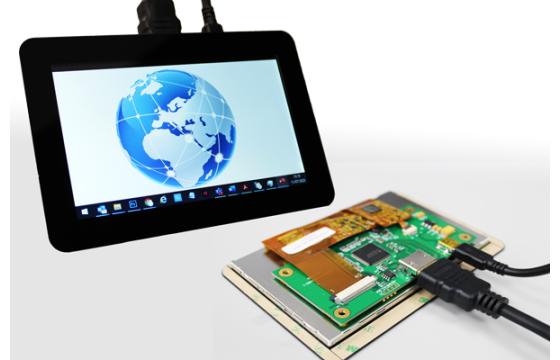

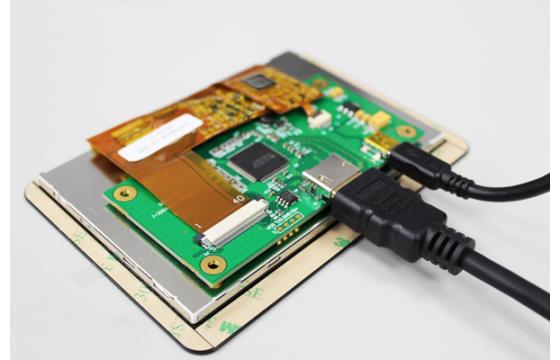

The 5" Display Kit consists of the following:
- Kit Part Number: TBA
- 5.0" HDMI IPS-TFT LCD Display with PCAP mini-USB Touch
- HDMI Cable
- Mini USB Cable
Contact us for pricing
Send Enquiry
