13.3" - Single Layer - Two Colour Cholesteric LCD

CH-LCD
13.3"
SPI

Bold colour on a deep black background. Power drawn only when the message changes.

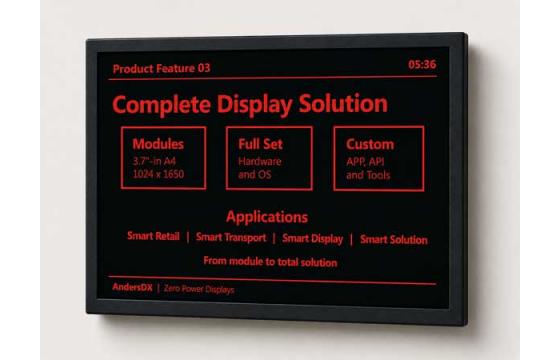

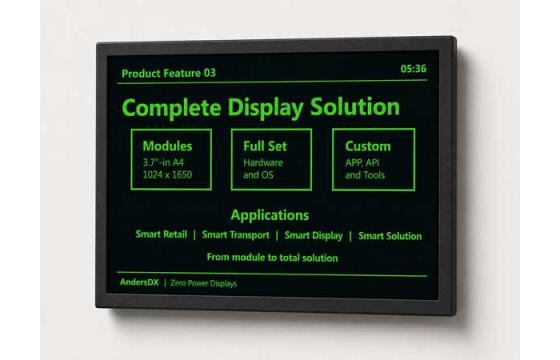

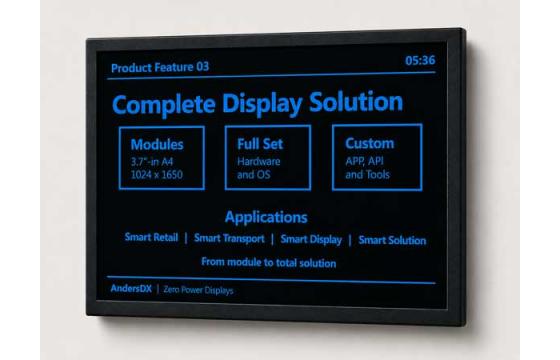

A 13.3-inch single-layer cholesteric LCD that puts crisp red, blue or green text on a deep black background - contrast strong enough to pull the eye straight to the price, the promotion or the warning. It works by reflecting ambient light instead of shining at you, so it gets clearer as the ambient gets brighter, and it stays sharp from any angle. The image holds with no power at all once written, so a single display runs for months on a battery and updates over the air whenever the message changes.

  • 13.3" Cholesteric LCD panel
  • 2200 x 1650 pixel resolution

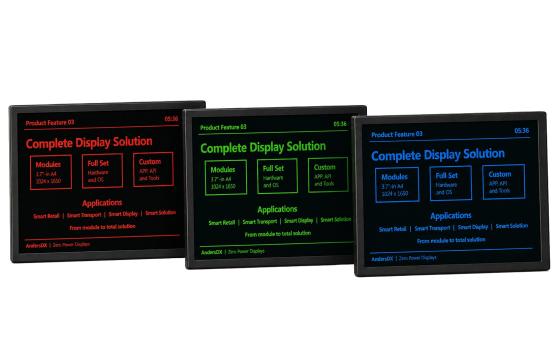

  • Cholesteric red/green/blue LCD
  • Black background
  • Extreme outdoor temperature: -30°C to +80°C
  • SPI interface
  • Reflective display with bistable properties

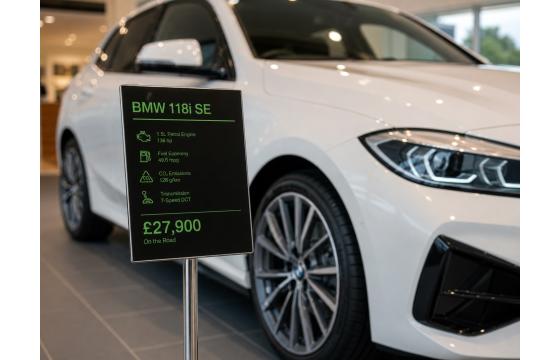

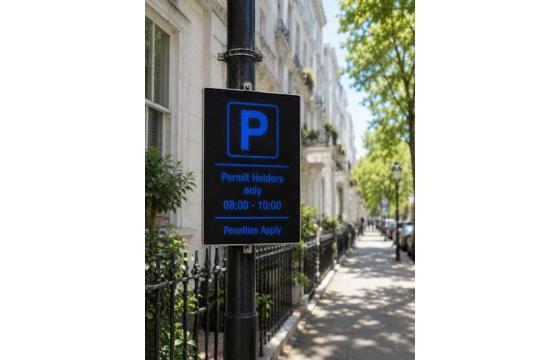

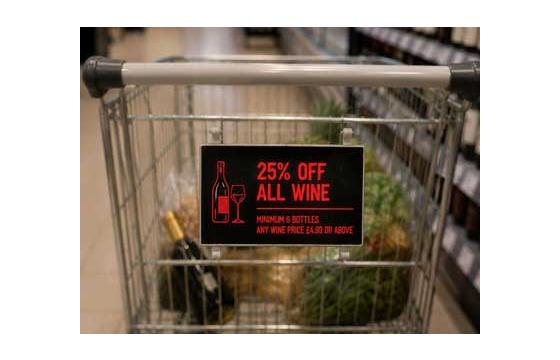

It earns its place anywhere printed signage goes stale: vehicle price tags on the showroom floor, retail promotions and product panels, meeting room door signs, museum and library labelling, park and parking guidance outdoors, and public information boards in hospitals, industrial parks and transport hubs.


  • 13.3" - Single Layer - Two Colour Cholesteric LCD
  • 13.3" - Single Layer - Two Colour Cholesteric LCD
  • 13.3" - Single Layer - Two Colour Cholesteric LCD
  • 13.3" - Single Layer - Two Colour Cholesteric LCD
  • 13.3" - Single Layer - Two Colour Cholesteric LCD
  • 13.3" - Single Layer - Two Colour Cholesteric LCD
  • 13.3" - Single Layer - Two Colour Cholesteric LCD
  • 13.3" - Single Layer - Two Colour Cholesteric LCD
  • 13.3" - Single Layer - Two Colour Cholesteric LCD
  • 13.3" - Single Layer - Two Colour Cholesteric LCD
  • 13.3" - Single Layer - Two Colour Cholesteric LCD
  • 13.3" - Single Layer - Two Colour Cholesteric LCD
  • 13.3" - Single Layer - Two Colour Cholesteric LCD
  • 13.3" - Single Layer - Two Colour Cholesteric LCD
FeatureSpecification
Part Number12685 - Red
12724 - Green
12723 - Blue
Display ModeCholesteric LCD
Screen Size 13.3"
Aspect Ratio4:3
Resolution 2200 x 1650
Pixels Per Inch (PPI)207
Display TypeSingle Layer - 2 colour
No. of Displayed ColoursSingle: Red, Green or Blue
Display ModeReflective
Contrast Ratio6:1
Viewing AngleUltra-wide
Module Dimensions286.16 × 215.62 × 2.6mm
Active Area Dimensions270.16 × 202.62mm
Pixel Pitch122.8 ×122.8mm
Image Transmission Time1 second
Surface TreatmentAnti-Glare/Anti-Reflective
Operating Temperature Extreme Outdoor Temperature: -30° to +80°C
Display Interface4 line SPI
SPI Electrical InterferenceMin:1.8V / Typ: 3.0V / Max:3.3V
Physical InterfaceConnector
Power Supply Input Voltage12V

* Optional feature available on this product
