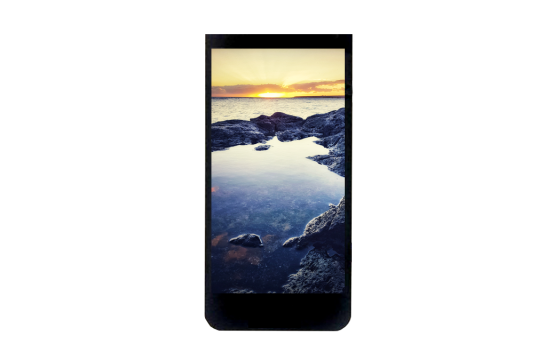

5.0" PCAP TFT LCD Display

Navigate

IPS-TFT
5"
Touch
230
MIPI
IPS

This 5.0" full colour TFT display module with PCAP touch and MIPI interface features wide viewing angles, high contrast ratio and low power consumption.

  • Screen Size: 5.0"
  • Aspect Ratio: 16:9
  • Viewing Angle: All round
  • Touch Options: CTP
  • Module size: 78.3 x 139.8 x 3.55 mm
  • Resolution: 720(RGB) x 1280
  • Brightness: 400 cd/m2
  • Interface: MIPI
  • 5.0" PCAP TFT LCD Display
  • 5.0" PCAP TFT LCD Display

Get started on your project

For information about samples and pricing, complete the form below and we'll come back to you with more details.

Occasionally we'd like to send you technology and product updates relevant to you. Submitting your details tells us you're OK with this and you agree to our privacy and cookie policy. You can opt out at any time by clicking on the link in the emails we send you.

FeatureSpecification
Part NumberYTS500XLBD-01-100C
Screen Size5.0"
Resolution720 x 1280
Touch TypeProjected Capacitive
Brightness400
Aspect Ratio16:9
Contrast Ratio900
InterfaceMIPI
OrientationPortrait
Dimensions78.3 x 139.8 x 3.55
OP Temperature-20° to 70°C

* Optional feature available on this product
