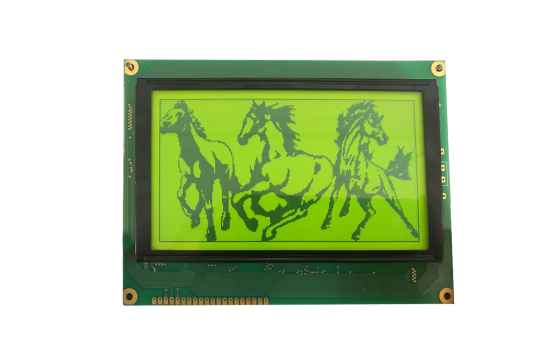

4.8" FSTN Monochrome LCD Display
This monochrome FSTN positive type display module with 240 x 128 number of characters and low power consumption is suitable for medical, metering and consumer electronic applications.
- Screen Size: 4.8"
- Resolution: 240 x 128
- Polarizer type: Transflective
- Viewing Direction: 6 o'clock
- Touch Options: CTP, RTP, None
- Module Size: 144.0 x 64.0 mm
- Operating Temperature: -20° to 70°C
- Drive method: 1/128 duty,1/12 bias
Get started on your project
For the full datasheet, sample and pricing requests, please complete the form below and we’ll come back to you asap.
|Resolution||240 x 128|
|OP Temperature||-20° to +70°C|
|Touch Type||None (Optional CTP or RTP)|
|Dimensions||144.0 x 64.0|
|Interface||8 bit parallel|
|Active Area||114.0 x 64.0|
|Display Mode||Positive FSTN|
|Viewing Direction||6 o'clock|
* Optional feature available on this product
