UCM-iMX91L: NXP i.MX91 SOM - NEW PRODUCT
UCM-iMX91L: NXP i.MX91 SOM - NEW PRODUCT
A55

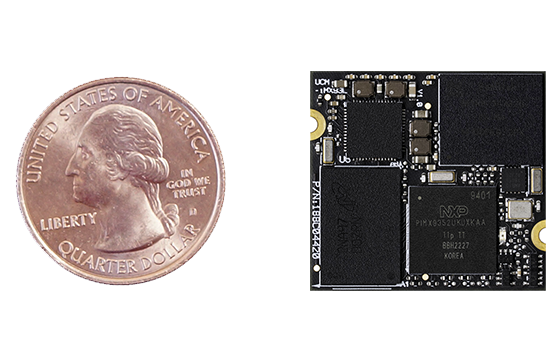

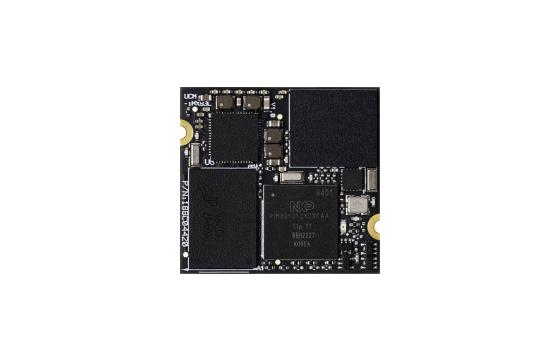

UCM-iMX91L is an ultra-miniature System-on-Module (SoM) optimised for industrial applications and an ideal solution for cost sensitive systems such as Smart Home and Building Control.

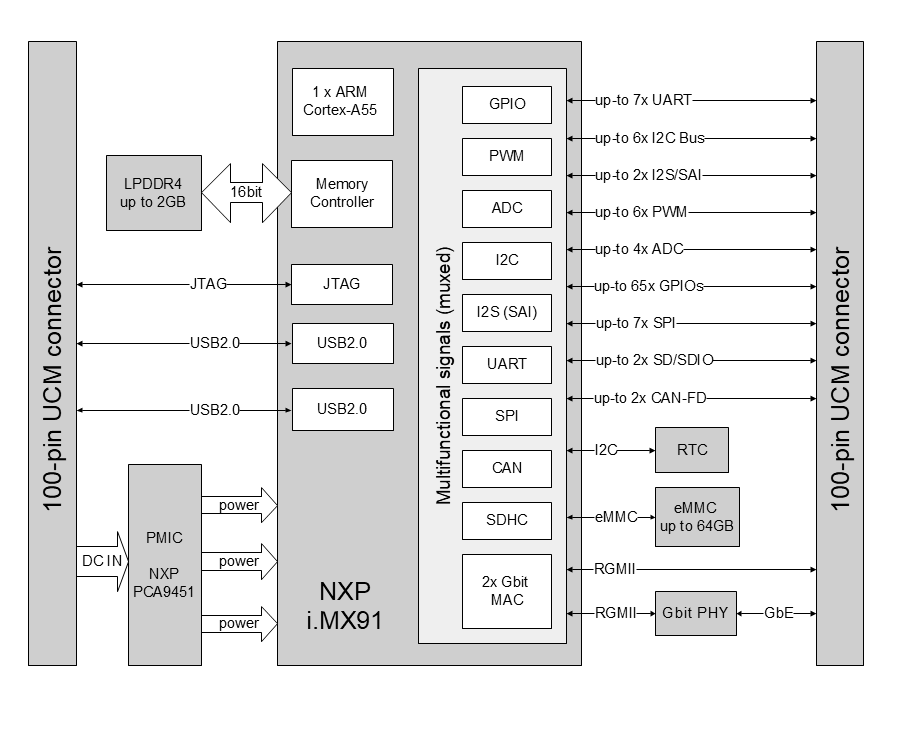

| Feature | Specification |
|---|---|
| CPU Architecture | ARM Cortex A55 |
| CPU Manufacturer | NXP |
| CPU Model | NXP i.MX9131 |
| CPU Frequency | Up to 1.4GHz |
| Memory | Up to 2GB LPDDR4 |
| Onboard Storage | Up to 64GB eMMC flash |
| Audio | S/PDIF input/output Up-to 2x I2S / SAI |
| Ethernet Ports | Gigabit Etherney port (MAC+PHY) Secondary RGMII |
| USB | 2x USB2.0 dual-role ports |
| UART/Serial | Up to 7 |
| CAN-FD bus | Up to 2 |
| SD/SDIO | Up to 2 |
| SPI | Up to 7 |
| I2C | Up to 6 |
| PWM | Up to 6 |
| ADC | Up to 4 |
| GPIO | Up to 65 |
| Power Supply Voltage | 3.45V – 5.5V |
| Dimensions | 28 x 30 x 4 mm |
| OS Support | Full Board Support Package and ready-to-run images Linux kernel, Yocto Project BSP and U-Boot Support for Docker, MS Azure IoT and Node-RED Support for OTA updates with Mender |
* Optional feature available on this product
Click on image to expand

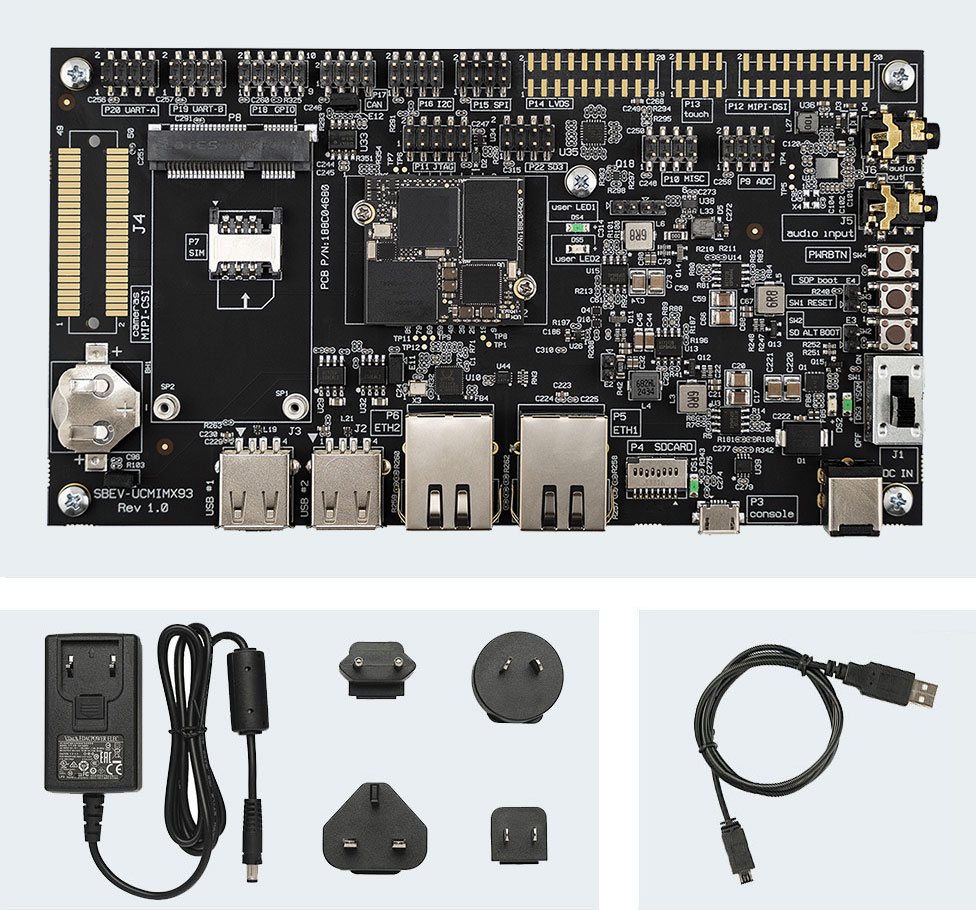

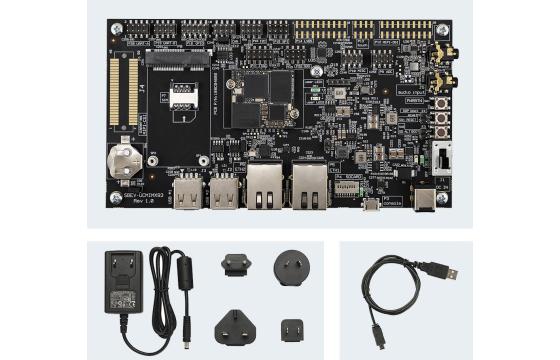

UCM-iMX91L Development Kit
Hardware
- UCM-iMX91L-C1400D-D1-N16-E-TIC
- SBEV-UCMIMX93 carrier board
- Optional: Quectel EG25G LTE cellular modem
- Cables and adapters
- 12V power supply
Technical support
- Technical support for 12 months.
- Schematics review of the customer's carrier board design.
- LCD panel compatibility verification and driver adaptation service.
- 45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for their needs.
Bringing your product to life with compliance, reliability and performance in mind
At Anders we understand that no two customers are the same, which is why we specialise in custom embedded solutions and offer a unique products tailored to the end application. Please contact us for more information.
Embedded Board Design
Custom board design of any shape or size to your exact application specifications.
Hardware Design
Custom board design of any shape or size to your exact application specifications.
Software Integration
Support for display initialisation, porting (touch) drivers, enabling hardware control and more.
Mechanical Integration
Display and embedded integration: enclosures, mounting holes, gaskets, cable assembly and more.
