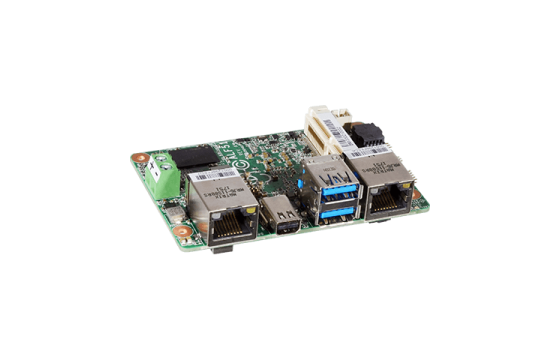

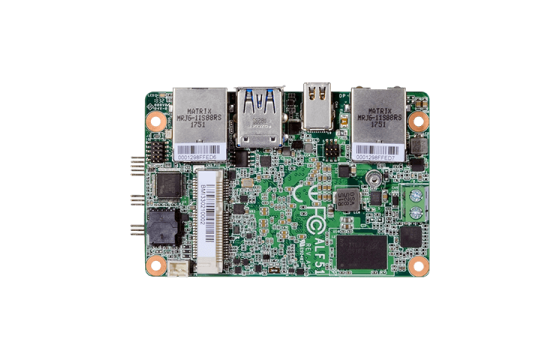

ALF51: Intel Atom 1.8inch SBC
ALF51: Intel Atom 1.8inch SBC
x86
4GB
This SBC is fully equipped with various I/O ports Can be used as a gateway because of its dual GbE. It is ideal for many space-critical and thermally demanding applications, including robotics, industrial automation and medical devices.
- Intel Atom® Processor E3900 Series
- Single channel DDR4 memory up to 8GB
- Intel HD Graphics
- 1 Mini DP++
- Rich I/O
- 15-Year CPU Life Cycle Support until Q4 '31
Specifications
Diagrams
Development Kit
| Feature | Specification |
|---|---|
| CPU Architecture | X86 |
| CPU Manufacturer | Intel |
| CPU Model | Intel Atom® Processor E3900 Family Intel Atom® x5-E3940 Processor, Quad Core Intel Atom® x5-E3930 Processor, Dual Core Intel® Pentium® Processor N4200, Quad Core Intel® Celeron® Processor N3350, Dual Core |
| CPU Frequency | Up to 2.5GHz |
| Memory | Up 4GB DDR4 |
| Primary Storage | Up to 64GB eMMC |
| Graphics | Intel® HD Graphics |
| Display Interface | Mini DP ++ |
| Display Resolution (Max) | 4096x2160 |
| Ethernet Ports | Up to 2 Intel GbE (RJ-45) |
| USB 2.0 Ports Host | Up to 1 |
| USB 3.1 Gen 1 | Up to 2 |
| UART/Serial | 1 x RS-232/422/485 |
| DIO | 1 x 8-bit DIO |
| SMBus | 1 x SMBus |
| Extension | 1 x full-size Mini PCIe (PCIe / USB 2.0, optional USB 3.1 Gen1 / USB 2.0) |
| TPM | fTPM 2.0 |
| Power Supply Voltage | Single 12V +/- 10% DC |
| Dimensions | 84 x 55 x 15 mm |
| Operating Temperature | Commercial: 0° to 60° C Extended: -20° to 70° C Industrial: -40° to 85° C |
| OS Support (UEFI only) | Windows 10 IoT Enterprise (64-bit) Linux |
| BSP | Full Board Support Package and ready-to-run images |
| Certifications | CE, FCC, RoHS |
* Optional feature available on this product
Click on image to expand
RAw600.png)
Packing list
- 1 Intel Atom board
- 1 USB port cable (Length: 200mm)
- 1 COM port cable (Height: 300mm)
- 1 Heat spreader (Height: 11mm)
Optional Items
- Heat sink for E series CPU 0 to 60°C / wide temp(Height: 27mm)
- Heat sink for N series CPU 0 to 60°C (Height: 23mm)
- Power adapter (60W, 12V, DC jack)
- 2 pole terminal to DC Jack cable
