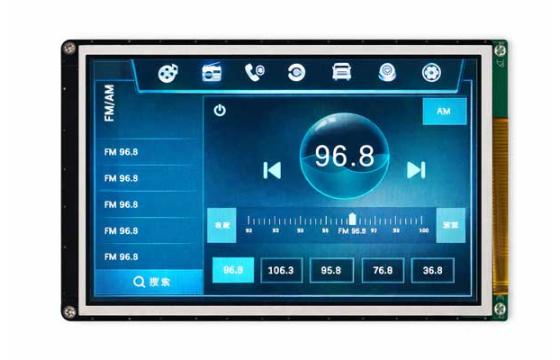

7.0" High Bright IPS TFT LCD Display RGB interface
7.0" High Bright IPS TFT LCD Display RGB interface
IPS-TFT
7"
1100
RGB
IPS
This 7.0" high brightness full colour IPS TFT LCD Display with normally white display mode features extended temperature and wide viewing angles and is ideal for outdoor applications.
- Screen Size: 7.0"
- Aspect Ratio: 5:3
- Resolution: 800 (RGB) x 480
- Brightness: 1100 cd/m2
- Interface: RGB
- Operating temperature: -30° to +80°C
All our displays can be customised by our in-house engineering team to meet your application requirements. Discover more here:
Product Design Services
Specifications
| Feature | Specification |
|---|---|
| Part Number | 12589 |
| Screen Size | 7.0" |
| Resolution | 800 x 480 |
| Display Mode | Normally White |
| Brightness | 1100 cd/m2 |
| Aspect Ratio | 5:3 |
| Contrast Ratio | 800 |
| Interface | 24-bit RGB |
| Module Dimensions | 164.9 x 100 x 5.94mm |
| Active Area | 154.08 x 85.92mm |
| Operating Temperature | -30° to +80°C |
* Optional feature available on this product
