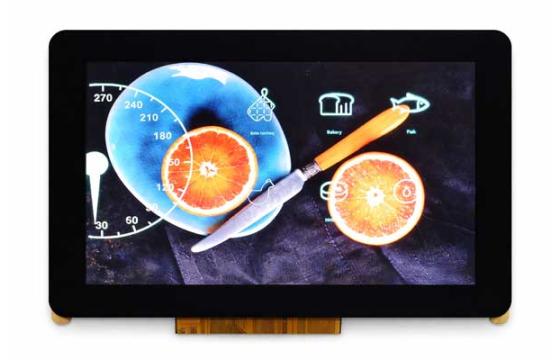

7.0" High Bright IPS TFT LCD Display RGB interface
7.0" High Bright IPS TFT LCD Display RGB interface
IPS-TFT
7"
1100
RGB
IPS
This 7.0" high brightness full colour IPS TFT LCD Display module features extended temperature and wide viewing angles and is ideal for outdoor applications.
- Screen Size: 7.0"
- Aspect Ratio: 5:3
- Resolution: 800 (RGB) x 480
- Brightness: 1100 cd/m2
- Interface: RGB
- Operating temperature: -30° to +80°C
All our displays can be customised by our in-house engineering team to meet your application requirements. Discover more here:
Product Design Services
Specifications
| Feature | Specification |
|---|---|
| Part Number | 12588 |
| Screen Size | 7.0" |
| Resolution | 800 x 480 |
| Brightness | 1100 cd/m2 |
| Aspect Ratio | 5:3 |
| Contrast Ratio | 800 |
| Interface | 24-bit RGB |
| Module Dimensions | 164.9 x 100 x 5.94mm |
| Active Area | 154.08 x 85.92mm |
| Operating Temperature | -30° to +80°C |
* Optional feature available on this product
