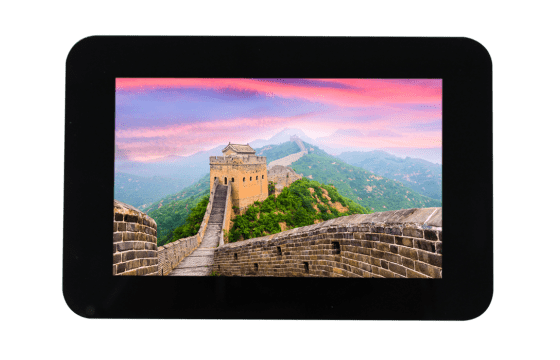

5.0" High Bright IPS TFT with CTP & RGB interface
5.0" High Bright IPS TFT with CTP & RGB interface
IPS-TFT
5"
Touch
1250
RGB
IPS
This 5.0" high brightness IPS TFT LCD Display module features Capatitive Touch Panel and wide viewing angles and is ideal for outdoor applications.
- Screen Size: 5.0"
- Resolution: 800(RGB) x 480
- Brightness: 1250 cd/m2
- Interface: RGB
All our displays can be customised by our in-house engineering team to meet your application requirements. Discover more here:
Product Design Services
Specifications
| Feature | Specification |
|---|---|
| Part Number | 12620 |
| Screen Size | 5.0" |
| Resolution | 800 x 480 |
| Brightness | 1250 cd/m2 |
| Contrast Ratio | TBA |
| Interface | RGB |
| Module Dimensions | 133.0 x 89.8 x 9.4mm |
| Active Area | 108 x 64.8mm |
| Operating Temperature | -20° to +70°C |
* Optional feature available on this product
