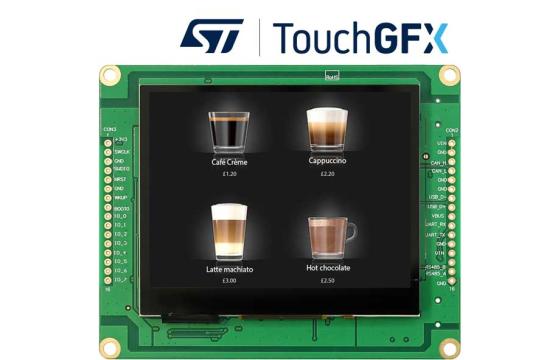

3.5" Smart TFT Display with CTP and CAN-BUS
3.5" Smart TFT Display with CTP and CAN-BUS
Smart Display with CAN Bus Interface. Easy-to-use product which allows customers to develop projects rapidly in a very cost-effective way. Designed with STM32 microcontroller which supports ST development tools like TouchGFX and STM32CubeIDE.
- 3.5'' IPS-TFT display
- CAN-bus interface
- STM32F750 MCU
- Capacitive Touch Panel
- Wide all round viewing angle
- Protocol: CANopen
| Feature | Specification |
|---|---|
| Part Number | 12369 |
| Screen Size | 3.5" |
| Resolution | 320 x 240 |
| Interface | CAN-bus |
| Protocol | CANopen |
| Brightness | 400 cd/m2 |
| Touchscreen | Capacitive Touch Panel |
| Operating Voltage | 5 to 24VDC |
| MCU | STM32F750 |
| Flash Memory | 16MB |
| Viewing Direction | 80/80/80/80 |
| Operating Temperature | -20° to 70°C |
| Module Dimensions | 100 x 82 x 13.2mm |
| Active Area | 70.08 x 52.56mm |
* Optional feature available on this product
Development Kit
Kit Contents
- 3.5" Smart TFT Display
- USB-2 CAN Dongle
- 4 pin Power/Data Cable
- USB to Micro USB Cable
- Kit Part Number: 12442
Designed with STM32 microcontroller which supports ST development tools like TouchGFX and STM32CubeIDE.
image shown is a 7.0" display
Send EnquiryBringing your product to life with compliance, reliability and performance in mind
Coverlens Design
From shape, size glass material and thickness to hidden til lit icons and printing, make your product stand out.
Optical Bonding
Improve screen readability outdoors and strength of your display with optical bonding.
Touch and Firmware
Optimum touch ICs and firmware tuning for flawless performance including gloved touch and water rejection.
Glass Coatings & Filters
Optimum performance using films and filters including anti-reflective, anti-glare or protective coatings.
Backlight Enhancement
Adapting display brightness to suit the application requirements.
