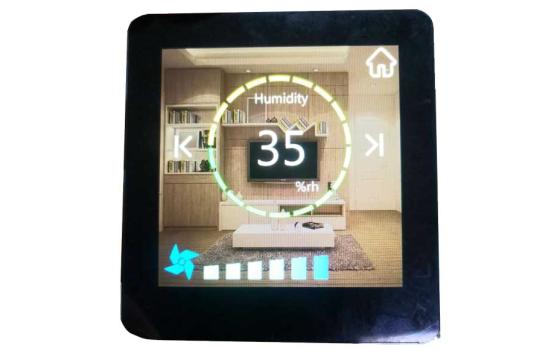

3.46" High Bright Square IPS TFT LCD Display with CTP
3.46" High Bright Square IPS TFT LCD Display with CTP
IPS-TFT
3.46"
Touch
1000
LVDS
IPS
This 3.46" high brightness full colour square IPS TFT LCD Display with capacitive touch panel features wide viewing angles and is ideal for outdoor applications.
- Screen Size: 3.46"
- Aspect Ratio: 1:1
- Resolution: 480 (RGB) x 480
- Touchscree: CTP
- Brightness: 1000 cd/m2
- Interface: RGB
All our displays can be customised by our in-house engineering team to meet your application requirements. Discover more here:
Product Design Services
Specifications
| Feature | Specification |
|---|---|
| Part Number | 12585 |
| Screen Size | 3.46" |
| Resolution | 480 x 480 |
| Brightness | 1000 cd/m2 |
| Touchscreen | Capacitive Touch |
| Aspect Ratio | 1:1 |
| Contrast Ratio | 1100 |
| Interface | LVDS |
| Module Dimensions | 80 x 85 x 61.8mm |
| Active Area | 62.064 x 62.064mm |
| Operating Temperature | -20° to +70°C |
* Optional feature available on this product
