12.3" Mini LED Local Dimming Backlight LCD
12.3" Mini LED Local Dimming Backlight LCD
IPS-TFT
12.3"
2600
LVDS

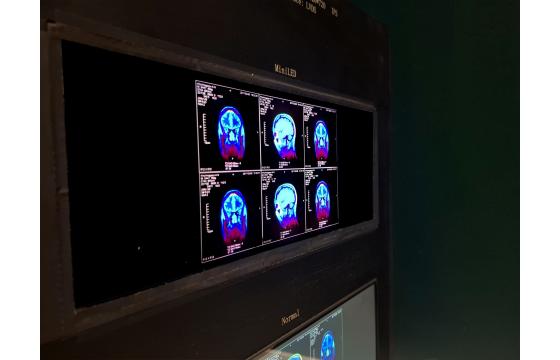

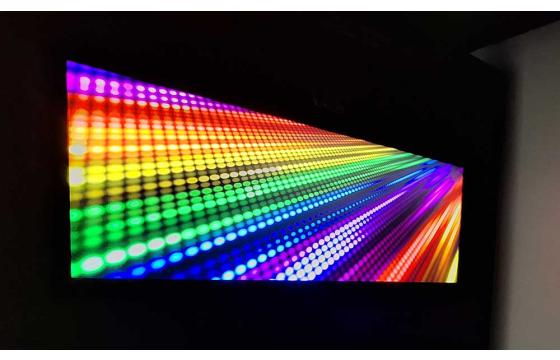

This IPS Stretched Bar TFT LCD Display module features mini-LED local dimming backlight that enhances contrast and picture quality. By dividing the backlight into multiple zones, each with independently controlled LEDs, local dimming allows for precise brightness adjustments.
This targeted control enables darker areas of the screen to achieve deeper blacks while keeping bright areas vivid, resulting in sharper contrast and more lifelike visuals.
Mini-LED backlights are customer specific.
Contact us to discuss your requirements.
Example Specification:
- Screen Size: 12.3"
- Resolution: 1920 x (RGB) x 720
- Brightness: 2,600cd/m2
- Contrast Ratio: 15,000:1
- Wide Operating Temperature: -30 to +85°C
Specifications
| Feature | Specification |
|---|---|
| Part Number | ENQ-12173 |
| Screen Size | 12.3" |
| Resolution | 1920 x 720 |
| Brightness | 2,600cd/m2* |
| Contrast Ratio | 15,000:1 |
| Interface | Dual LVDS* |
| Orientation | Landscape |
| Dimensions | 309 x 128.5 x 10.5mm* |
| Operating Temperature | -30° to 85° |
* Optional feature available on this product
