MCM-iMX95: NXP i.MX95 SMD SOM - NEW PRODUCT
MCM-iMX95: NXP i.MX95 SMD SOM - NEW PRODUCT
A55
MCM-iMX95 is an ultra-miniature Solder-Down System-on-Module (SoM) optimised for shock and vibration resistance and SMT assembly and reflow soldering. An ideal solution for cost space constrained and portable applications.
| Feature | Specification |
|---|---|
| CPU Architecture | ARM Cortex A55 |
| CPU Manufacturer | NXP |
| CPU Model | NXP i.MX95, ARM Cortex-A55 up-to 6x cores |
| CPU Frequency | Up to 1.8GHz |
| NPU | eIQ® Neutron NPU |
| Real Time Co-Processor | ARM Cortex-M7 + ARM Cortex-M33 |
| Memory | 4GB – 16GB, LPDDR5 |
| Storage | eMMC flash, 16GB - 128GB |
| Display Interface | LVDS, 2x 4-lane or 1x 8-lane , up to 1080p60 MIPI-DSI, 4 data lanes, up to 4kp30 or 3840x1440p60 |
| TouchScreen Controller | Capacitive touch-screen support through SPI and I2C interfaces |
| Digital Audio | Up-to 5x I2S / SAI S/PDIF input/output |
| Camera | 2 x MIPI-CSI, 4 data lanes |
| Ethernet Ports | 2 x Gigabit RGMII |
| 10 Gbit Ethernet | 10 GbE MAC |
| PCI Express | 2x PCIe Gen 3 1x lane |
| USB | 1x USB3.0 + 1x USB2.0 |
| UART | Up to 8 |
| CAN bus | Up to 5 |
| SD/SDIO | Up to 2 |
| SPI | Up to 8 |
| I2C | Up to 6 |
| PWM | Up to 4 general purpose |
| ADC | Up to 4 general purpose |
| GPIO | Up to 88 (multifunctional signals shared with other functions) |
| Power Supply Voltage | 3.45V – 5.0V |
| Dimensions | 34 x 42 x 3 mm |
| OS Support | Full Board Support Package and ready-to-run images Linux kernel, Yocto Project, RTOS BSP and U-Boot Support for Docker, MS Azure IoT and Node-RED Support for OTA updates with Mender |
* Optional feature available on this product
Click on image to expand

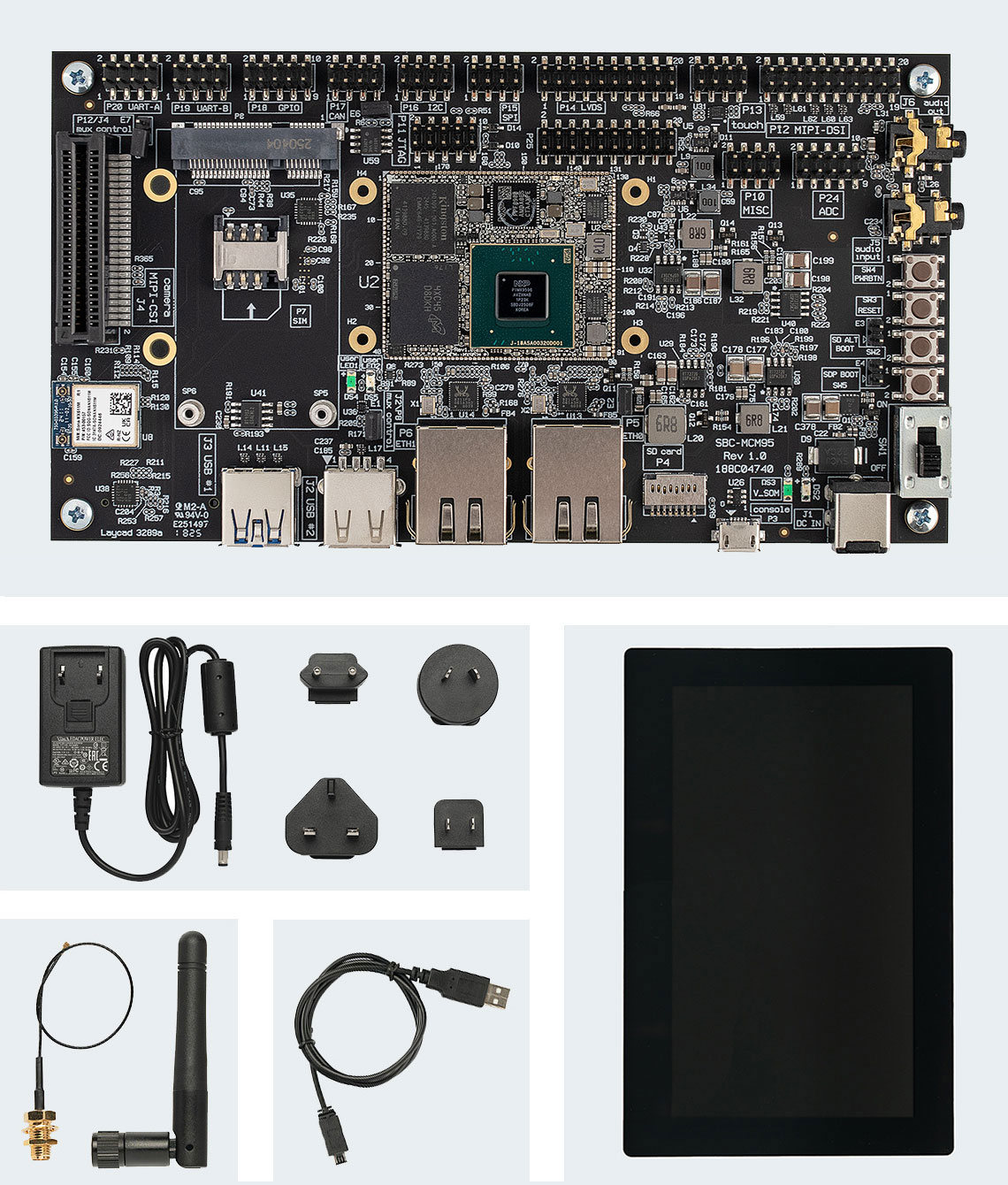

MCM-iMX95 Development Kit
Hardware
- MCM-iMX95-C1800HM-D8-N64 SOM assebled on SB-MCMIMX95 carrier-board
- Optional 7" LVDS LCD with touch panel
- Optional: Quectel EG25G LTE cellular modem
- WiFi antenna and cable
- Cables and adapters
- 12V power supply
Technical support
- Technical support for 12 months.
- Schematics review of the customer's carrier board design.
- LCD panel compatibility verification and driver adaptation service.
- 45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for their needs.
