DRAGONEYE-H5 with 1.8'' IP65 Rotary Encoder LCD & STM32 MCU
DRAGONEYE-H5 with 1.8'' IP65 Rotary Encoder LCD & STM32 MCU
M0
The DRAGONEYE™-H5 is a high-performance hardware and software development platform built for embedded applications that demand more - more processing power, more visual fidelity, and more room to grow. Powered by the STM32H5 Arm® Cortex®-M33 core at 250MHz, it gives developers the headroom to build sophisticated, responsive graphical interfaces without compromise.
With a 1.8" IP65-rated IPS-TFT rotary encoder display at 360×360 resolution, haptic feedback, and full TouchGFX support, DRAGONEYE™-H5 lets you prototype, evaluate, and deploy polished user interfaces with confidence - at speed.
- STM32H5 Arm® Cortex®-M33 core @ 250MHz
- 1.8" IPS-TFT display (360x360)
- IP65 rated brushless rotary encoder with haptic feedback
- Capacitive touchbutton
- 512kB internal flash and 8MB External flash memory
- RGB LED light ring
- Built-in ST-LINK programmer
- TouchGFX support
Available August 2026
Discover our other DRAGONEYETM options here
| Feature | Specification |
|---|---|
| Part Number | 12608 (IP65 Development Kit) 12629 (Rotary Encoder Knob with MCU) |
| MCU Manufacturer | ST Microelectronics |
| Microcontroller | STM32-H523CC |
| CPU | Arm® Cortex®-M33 core |
| CPU Frequency | 250MHz |
| GPU | ST ART Accelerator |
| Memory | 272KB of RAM 512KB of internal flash 8MB of external flash with DMA support |
| LCD Interface | SPI |
| Display & Resolution | 1.8" IP65 Rotary Encoder Display with Capacitive Touchbutton 360x360 |
| Viewing Direction | 85/85/85/85 |
| Display Brightness | 350nits |
| Contrast Ratio | 1200:1 |
| Input Technology | 25 step rotary encoder + capacitive touchbutton (both with haptic feedback) |
| Programming/Debugging Methods | Built-in ST-Link debugger/programmer with µUSB interface |
| Power Supply Voltage | 5V |
| Active Area | Ø45.68mm |
| Display Dimensions | Ø66.5 x 21.49mm |
| Power Consumption | TBA |
| LED Ring | RGB (Customisable) |
| Operating Temperature | -20° to 70°C |
| Storage Temperature | -30° to 80°C |
* Optional feature available on this product

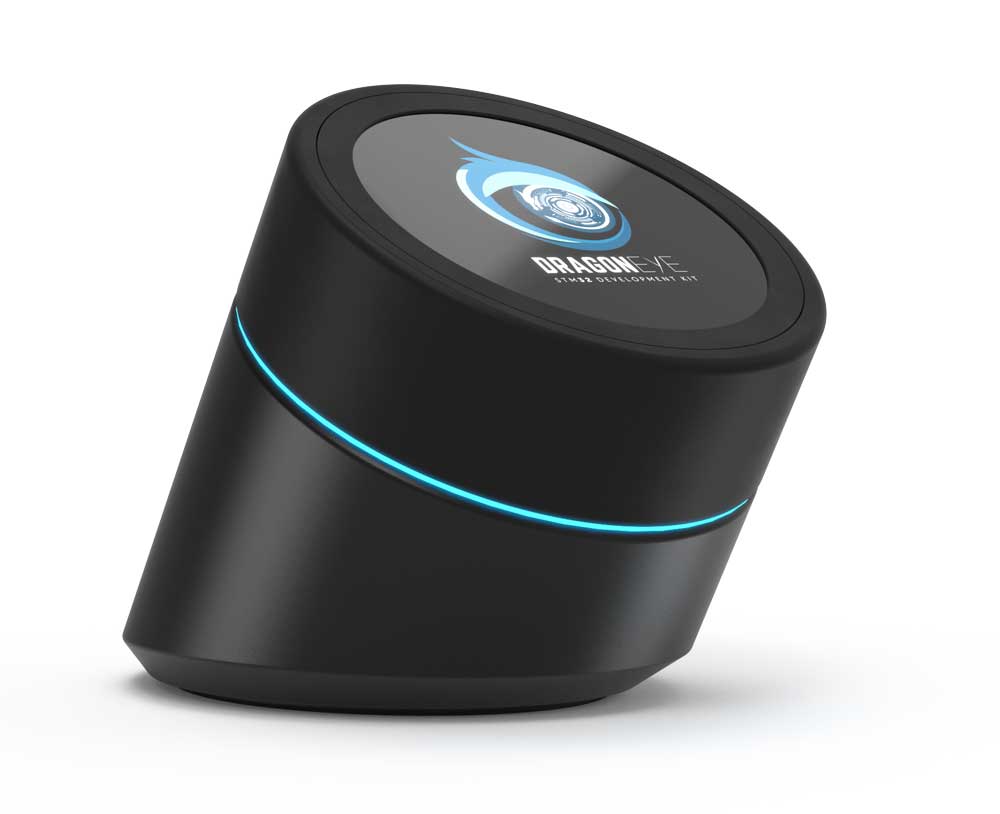

Development Kit
Development Platform with pre-integrated drivers and demonstration GUI developed using TouchGFX, comes pre-loaded and ready to run as soon as the device is powered on.
Kit Contents:
- DRAGONEYETM IP65 Rotary Encoder Platform
- Pre-integrated hardware components
- Pre-integrated software driver package (BSP)
- 1.8" CTP display (360 x 360)
- Haptic Feedback
- LED light Ring
- Built-in ST-Link debugger/programmer with µUSB interface
- USB cable
- Quick start guide
Bringing your product to life with compliance, reliability and performance in mind
Customisation & Production Support
- Custom PCBA design (I/O, connectors, BOM optimisation)
- Display configuration
- Touch firmware tuning - gloved hands etc.
- Coverlens design - branding, films & filters
- Enclosure design and mounting options
Full lifecycle support from Anders - from evaluation to production.
Contact Us to discuss your requirements
