DRAGONEYE G0 with 1.3'' Rotary Encoder Display & STM32 MCU
DRAGONEYE G0 with 1.3'' Rotary Encoder Display & STM32 MCU
M0
Accelerate your embedded GUI development
The DRAGONEYETM -G0 is a pre-developed hardware and software development platform that enables you to bring compact, high-quality graphical interfaces to life with minimal effort Built around the STM32G0 Arm® Cortex®-M0 microcontroller, it delivers an efficient solution for cost-sensitive embedded applications.
Combining a 1.3″ TFT display, a rotary encoder with push button, and full TouchGFX support, DRAGONEYETM allows you to prototype, evaluate, and deploy user interfaces quickly - cutting both development time and overall BOM cost.
- STM32G0 Arm® Cortex®-M0
- 1.3" TFT with 240x240 pixels
- Rotary encoder with integrated pushbutton*
- 8MB Flash memory
- UART interface

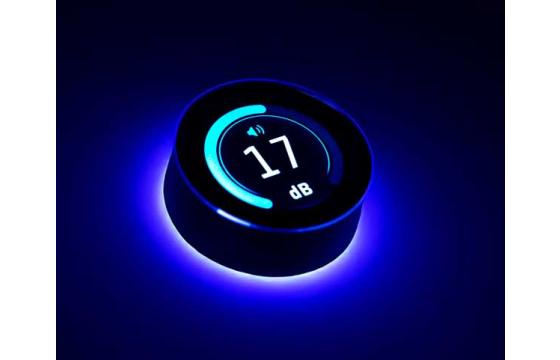

- RGB LED light ring
- Supports TouchGFX UI designer software
*NEW version of DRAGONEYE-G0 available in July 2026 will feature brushless rotary encoder with haptic feedback and integrated CTP.
Discover our other DRAGONEYETM options here
| Feature | Specification |
|---|---|
| Part Number | 12414 (Development Kit) 12223 (Rotary Encoder Knob with MCU) |
| MCU Manufacturer | ST Microelectronics |
| Microcontroller | STM32-G070CBTX |
| CPU | Arm® Cortex®-M0+, 32-bit RISC core @64GHz |
| Memory | 36KB of RAM 128KB of internal flash 8MB of external flash with DMA support |
| Display & Resolution | 1.3" Rotary Encoder Display 240x240 |
| Interface | 2x UART/I2C/GPIOs |
| Viewing Direction | 85/85/85/85 |
| Display Brightness | 350nits |
| Contrast Ratio | 900:1 |

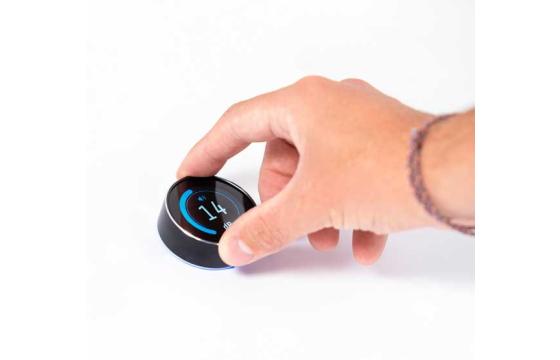

| Input Technology | 15 step rotary encoder - rotate and press |
| Active Area | Diameter: 32.4mm |
| Module Dimensions | Diameter: 46.2 × Depth: 17.55mm |
| LED Ring | RGB (Customisable) |
| Operating Temperature | -20° to 70°C |
* Optional feature available on this product

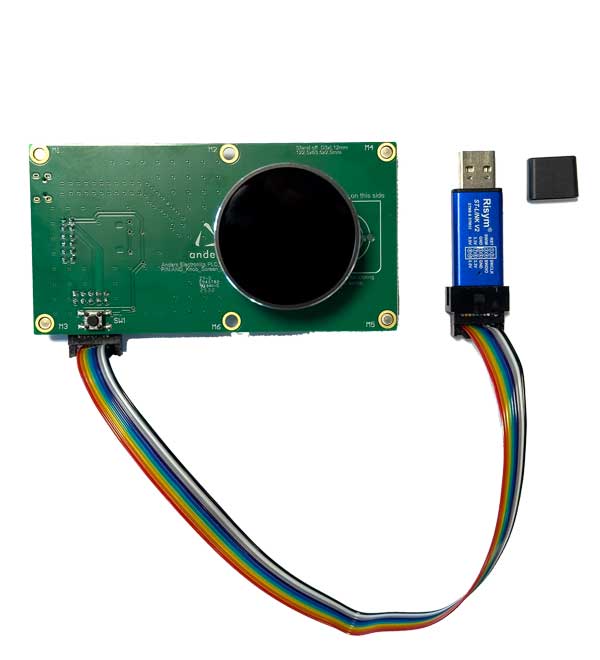

Development Kit
A high-performance demonstration GUI, developed using TouchGFX, comes pre-loaded and ready to run as soon as the device is powered on. This enables instant testing of the encoder’s response within the GUI and provides an immediate view of the display’s optical performance.
Kit Contents:
- 1.3-inch Rotary Encoder Display (mounted to lockplate)
- Board Support Package (BSP) which can be used to control the LED ring
- ST-Link
- Micro-USB cable
- Pre-loaded GUI developed using TouchGFX
- Part number: 12414
Bringing your product to life with compliance, reliability and performance in mind
The DRAGONEYE Platform is based on the STM32 range of Microcontrollers.
We can undertake complete custom design projects including tour specified MCU and displays size.
Contact Us to discuss your requirements
Coverlens Design
From shape, size glass material and thickness to hidden til lit icons and printing, make your product stand out.
Optical Bonding
Improve screen readability outdoors and strength of your display with optical bonding.
Touch and Firmware
Optimum touch ICs and firmware tuning for flawless performance including gloved touch and water rejection.
Glass Coatings & Filters
Optimum performance using films and filters including anti-reflective, anti-glare or protective coatings.
Backlight Enhancement
Adapting display brightness to suit the application requirements.
