DRAGONEYE-G0 with 1.3'' IP65 Rotary Encoder LCD & STM32 MCU
DRAGONEYE-G0 with 1.3'' IP65 Rotary Encoder LCD & STM32 MCU
M0
The DRAGONEYE™-G0 is a ready-to-use hardware and software development platform designed to bring compact, high-quality graphical interfaces to life - without the cost overhead. Built on the STM32G0 Arm® Cortex®-M0 microcontroller, it delivers an efficient, cost-optimised foundation for embedded applications.
With a rugged 1.3" IP65-rated IPS-TFT rotary encoder display, capacitive touchbutton, haptic feedback, and full TouchGFX support, DRAGONEYE™-G0 lets you prototype, evaluate, and deploy polished user interfaces with confidence - cutting development time and overall BOM cost.
- STM32G0 Arm® Cortex®-M0+ 32-bit RISC core @ 64MHz
- 1.3" IPS-TFT display (240x240)
- IP65 rated brushless rotary encoder with haptic feedback
- Capacitive touchbutton
- 128kB internal flash and 8MB External flash memory
- RGB LED light ring
- Built-in ST-LINK programmer
- TouchGFX support
Cut development time. Ship faster.
Available August 2026
Discover our other DRAGONEYETM options here
| Feature | Specification |
|---|---|
| Part Number | 12625 (IP65 Development Kit) 12630 (Rotary Encoder Knob with MCU) |
| MCU Manufacturer | ST Microelectronics |
| Microcontroller | STM32-G070CBTX |
| CPU | Arm® Cortex®-M0+, 32-bit RISC core |
| CPU Frequency | 64MHz |
| Memory | 36KB of RAM 128KB of internal flash 8MB of external flash with DMA support |
| LCD Interface | SPI |
| Display & Resolution | 1.3" IP65 Rotary Encoder Display with Capacitive Touchbutton 240x240 |
| Viewing Direction | 85/85/85/85 |
| Display Brightness | 350cd/m2 |
| Contrast Ratio | 900:1 |
| Input Technology | 15 step rotary encoder + capacitive touchbutton (both with haptic feedback) |
| Programming/Debugging Methods | Built-in ST-Link debugger/programmer with µUSB interface |
| Power Supply Voltage | 5V |
| Active Area | Ø32.4mm |
| Display Dimensions | Ø54.5 x 20.8mm |
| Power Consumption | TBA |
| LED Ring | RGB (Customisable) |
| Operating Temperature | -20° to 70°C |
| Storage Temperature | -30° to 80°C |
* Optional feature available on this product

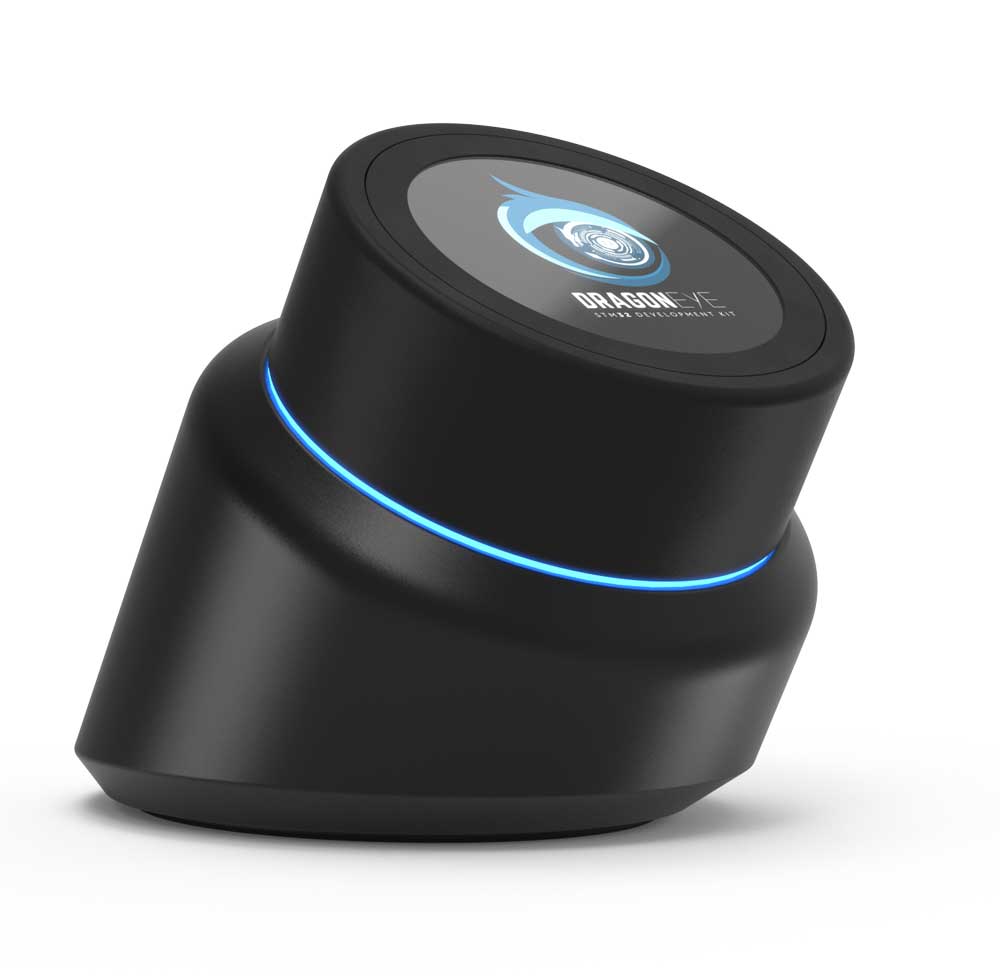

Development Kit
Development Platform with pre-integrated drivers and demonstration GUI developed using TouchGFX, comes pre-loaded and ready to run as soon as the device is powered on.
Kit Contents:
- DRAGONEYETM IP65 Rotary Encoder Platform
- Pre-integrated hardware components
- Pre-integrated software driver package (BSP)
- 1.3" CTP display (240 x 240)
- Haptic Feedback
- LED light Ring
- Built-in ST-Link debugger/programmer with µUSB interface
- USB cable
- Quick start guide
Bringing your product to life with compliance, reliability and performance in mind
Customisation & Production Support
- Custom PCBA design (I/O, connectors, BOM optimisation)
- Display configuration
- Touch firmware tuning - gloved hands etc.
- Coverlens design - branding, films & filters
- Enclosure design and mounting options
Full lifecycle support from Anders - from evaluation to production.
Contact Us to discuss your requirements
