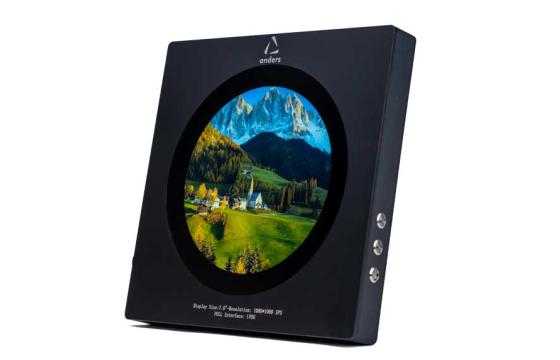

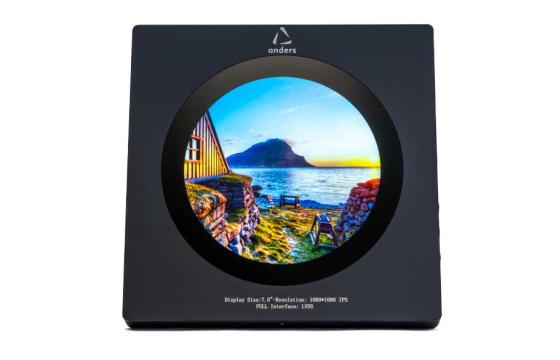

7.0" Circular IPS TFT LCD Display with CTP
7.0" Circular IPS TFT LCD Display with CTP
IPS-TFT
7"
800
LVDS
Circular IPS-TFT display with capacitive touchscreen, 3mm coverglass and shatter protection film. Ideal for Industrial and Building Automation, and Medical applications.
- Screen Size: 7.0"
- Resolution: 1080 (RGB) x 1080
- Viewing Angle: All round
- Brightness: 800cd/m2
- Interface: LVDS
- Operating Temp: -20 to +60°C
All our displays can be customised by our in-house engineering team to meet your application requirements - please contact us for more details.
Product Development Support
Specifications
| Feature | Specification |
|---|---|
| Part Number | 12672 |
| Screen Size | 7.0" |
| Resolution | 1080 x 1080 |
| Brightness | 800 |
| Aspect Ratio | 1:1 |
| Contrast Ratio | TBD |
| Interface | LVDS |
| Module Dimensions | Φ218.6 x 9.62mm |
| Active Area | Φ177.55mm |
| Operating Temperature | -20° to +60°C |
* Optional feature available on this product
