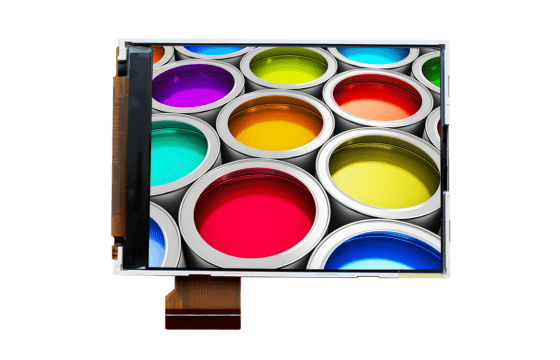

This high-performance 4.0" full colour IPS TFT display module features Capacitive Touch Panel and MIPI interface, high contrast and outstanding viewing angles. It is suitable for Industrial, Medical and Marine applications and smart home appliances. Also suitable for outdoor applications.
All our displays can be customised by our in-house engineering team to meet your application requirements, from optical enhancements, touch optimisation to hardware, software and mechanical integration. Discover all our design services here.
Contact us for a demo or samples.
- Screen Size: 4.0"
- Aspect Ratio: 1:1
- Viewing Angle: All round
- Module size: 83.6 x 83.6 x 4.19mm
- Resolution: 480 (RGB) x 480
- Touch Option: Capacative Touchscreen
- Brightness: 550cd/m2
- Interface: MIPI
Want to know more?
For the full datasheet, sample and pricing requests, please complete the form below and we’ll come back to you asap.
Submitting your details tells us you’re OK with our cookie policy. We may send you technology and product updates which you can opt out of at any time using the link in the email.
Feature | Specification |
---|---|
Part Number | 11701 |
Screen Size | 4.0" |
Resolution | 480 x 480 |
Brightness | 550 |
Aspect Ratio | 1:1 |
Contrast Ratio | 800 |
Interface | MIPI |
Orientation | Square |
Dimensions | 83.6 x 83.6 x 4.19mm |
OP Temperature | -20° to +70°C |
* Optional feature available on this product
Displays that make an impact
At Anders we understand that no two projects are the same, which is why we ensure the products we supply are perfect for your application.
From optical performance through to embedded board design and mechanical integration we have experts who can configure the perfect solution. With years of experience over thousands of projects across many industries, we can help with:
Glass coatings and filters
Backlight customisation
Touch and firmware
Coverlens design
Embedded board design
Mechanical integration
