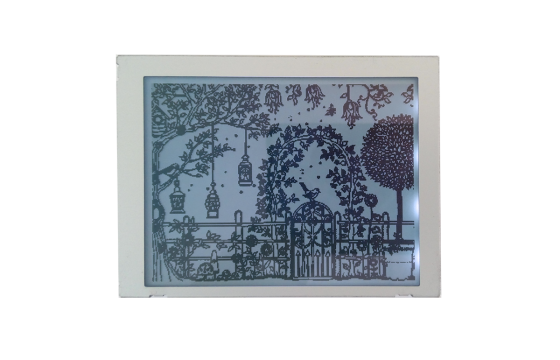

5.7" STN Monochrome LCD Display

Contact Us

STN
5.7"
320x240
RGB

This monochrome STN mode display module with 320 x 240 number of dots and low power consumption is suitable for medical and industrial applications.

  • Screen Size: 5.7"
  • Resolution: 320 x 240
  • Polarizer type: Transflective
  • Viewing Direction: 6 o'clock
  • Touch Options: CTP, RTP, None
  • Module Size: 160.0 x 109.0 mm
  • Operating Temperature: -20° to +70°C
  • Drive method: 1/240 duty,1/13 bias
  • 5.7" STN Monochrome LCD Display
  • 5.7" STN Monochrome LCD Display

Get started on your project

For the full datasheet, sample and pricing requests, please complete the form below and we’ll come back to you asap.

Submitting your details tells us you’re OK with our cookie policy. We may send you technology and product updates which you can opt out of at any time using the link in the email.

FeatureSpecification
Part Number YMS-320240-05
Screen Size5.7"
Resolution 320 x 240
OP Temperature -20° to +70°C
Touch Type None (Optional CTP or RTP)
Dimensions 160.0 x 109.0
Interface8/16 bit parallel
Module Construction COG
Active Area 122.0 x 92.0
Display Mode Negative STN Blue
Duty1/240
Polariser Options Transflective
Viewing Direction 6 o'clock

* Optional feature available on this product
