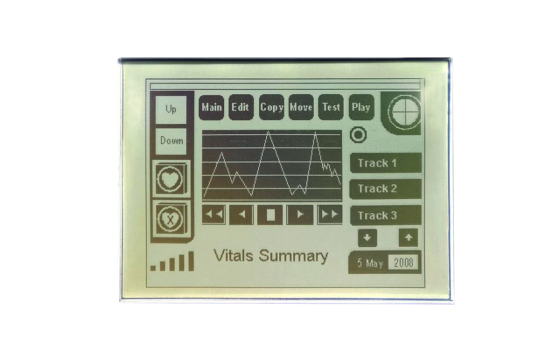

3.8" FSTN Monochrome LCD Display

Navigate

FSTN
3.8"
320x240
RGB

This monochrome FSTN positive mode display module with 320 x 240 pixel resolution and low power consumption is suitable for medical and industrial applications.

  • Screen Size: 3.8"
  • Resolution: 320 x 240
  • Polarizer type: Transflective
  • Viewing Direction: 12 o'clock
  • Module Size: 94.00 x 80.40 mm
  • Operating Temperature: 0° to 50°C
  • Drive method: 1/240 duty,1/12 bias
  • 3.8" FSTN Monochrome LCD Display
  • 3.8" FSTN Monochrome LCD Display

Get started on your project

For the full datasheet, sample and pricing requests, please complete the form below and we’ll come back to you asap.

Submitting your details tells us you’re OK with our cookie policy. We may send you technology and product updates which you can opt out of at any time using the link in the email.

FeatureSpecification
Part Number YMS-320240-16
Resolution 320 x 240
OP Temperature 0° to +50°C
Touch Type None (Optional CTP or RTP)
Dimensions 94.00 x 80.40
Interface 8/16 bit parallel
Module Construction COG
Active Area 80.2 x 61.0
Display Mode Positive FSTN
Duty1/240
Polariser Options Transflective
Viewing Direction 12 o'clock
Screen Size3.8"

* Optional feature available on this product
