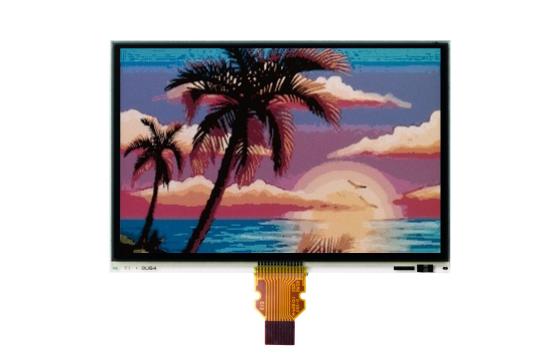

3.54" Memory in Pixel Display
3.54" Memory in Pixel Display
MEMORY-IN-PIXEL
3.54"
Serial
This Memory-in-Pixel (MiP) ColourDisplay features built-in memory in each pixel, retaining images without constant refresh.
This minimises power use and processor load, making them ideal for wearables and portable devices. Their reflective design ensures sharp, clear visuals even in bright outdoor settings.
- Screen Size: 3.54"
- Resolution: 320 x 240
- Power Consumption: From 1.05µW Typical (more info below)
- Interface: RGB
- Module Size: 74.84 x 59.92 x 0.91mm
- Operating Temperature: -20° to 70°C
Specifications
| Feature | Specification |
|---|---|
| Part Number | 12248 |
| Screen Size | 3.54" |
| Resolution | 320 x 240 |
| Interface | RGB |
| Display Colours | 64 colours |
| Power Consumption Static image, Display pattern: All pixels ‘ON’ | 1.05µW |
| Power Consumption Screen Update, Display pattern: Vertical Stripes, 1Hz, 1fps | 22.8µW |
| Operating Temperature | -20° to +70°C |
| Dimensions | 74.84 x 59.92 x 0.91mm |
| Active Area | 72 x 54mm |
| Operating Temperature | -20° to +70°C |
* Optional feature available on this product
