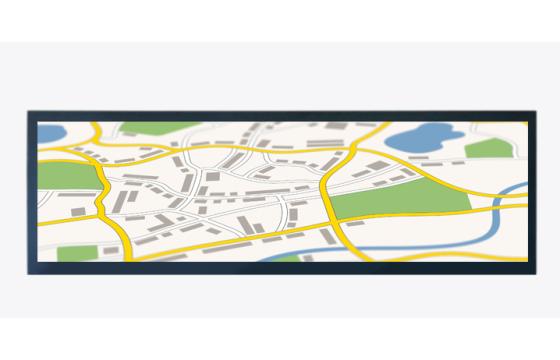

28" Bar Type IPS TFT LCD Display
28" Bar Type IPS TFT LCD Display
IPS-TFT
28"
1000
LVDS
This impressive Stretched Bar IPS TFT Display module features extremely wide viewing angles, high brightness and extremely high contrast ratio.making it ideal for applications such as passenger signage, or retail environments.
- Screen Size: 28"
- Resolution: 1920 (RGB) x 360
- Viewing Angle: 89/89/89/89
- Brightness: 1000cd/m2
- Contrast Ratio: 4000:1
Specifications
| Feature | Specification |
|---|---|
| Part Number | 11605 |
| Screen Size | 28" |
| Resolution | 1920 x 360 |
| Brightness | 1000nits |
| Contrast Ratio | 4000:1 |
| Interface | Dual channel LVDS |
| Orientation | Landscape/Portrait |
| Dimensions | 729.3 x 167.3 x 17.2mm |
| OP Temperature | -20° to +60°C |
* Optional feature available on this product
