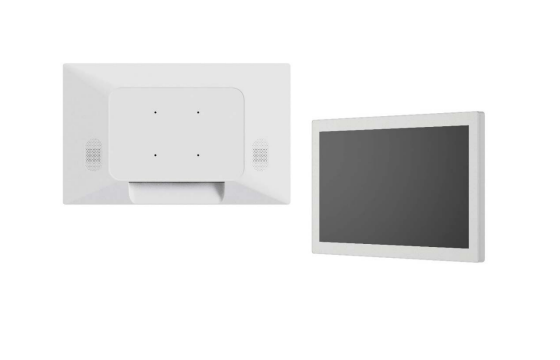

21.5" Desktop/Wall Mountable Touchscreen Monitor
21.5" Desktop/Wall Mountable Touchscreen Monitor
This 21.5" TFT Monitor with PCAP Touch features high contrast ratio, ultra wide viewing angles and is suitable for desktop or wall mounting. Also available in open frame (please contact us for more information).
- 21.5" IPS-TFT with 1920 x 1080 resolution
- Capacitive Touch Screen
- VGA/DP/HDMI interface
- 3mm coverlens
- AF/AG/AR available
- Open frame version available
Speak to us about our embedded solutions to make this a complete HMI solution.
| Feature | Specification |
|---|---|
| Part Number | 12747 |
| Screen Size | 21.5" |
| Resolution | 1920 x 1080 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Coverlens Thickness | 3mm |
| Touch Type | Projected Capacitive |
| Brightness | 250 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1000 |
| Interface | VGA/DP/HDMI |
| Orientation | Landscape |
| Surface Treatment | Anti-fingerprint, tempered glass (Optional: Anti-glare / Anti-reflective) |
| Active Area | 476.64mm × 268.11mm |
| Outer Dimensions | 532.6mm x 330mm x 53mm |
| Operating Temperature | 0° to +40°C |
* Optional feature available on this product
Bringing your product to life with compliance, reliability and performance in mind
Coverlens Design
From shape, size glass material and thickness to hidden til lit icons and printing, make your product stand out.
Optical Bonding
Improve screen readability outdoors and strength of your display with optical bonding.
Touch and Firmware
Optimum touch ICs and firmware tuning for flawless performance including gloved touch and water rejection.
Glass Coatings & Filters
Optimum performance using films and filters including anti-reflective, anti-glare or protective coatings.
Backlight Enhancement
Adapting display brightness to suit the application requirements.
