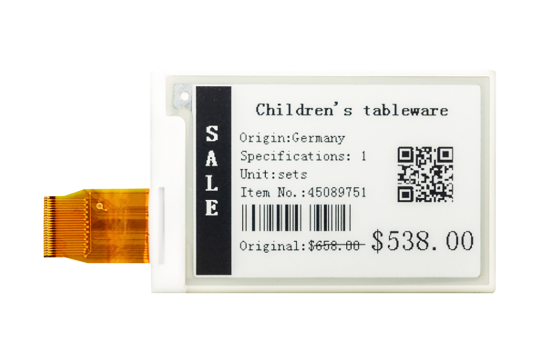

2.6" black & white ePaper display

Navigate

152 x 296 BW ePaper display

E-PAPER
2.6"
Touch
SPI

This 2.6" black & white ePaper display module with 152 x 296 pixels resolution features high contrast, wide viewing angle, low power consumption, slim outline and pure reflective mode.

It is suitable for Electronic Shelf Label (ESL) Systems, medical devices or portable industrial instrumentation.


  • Screen Size: 2.6"
  • Resolution: 152 x 296
  • Touch Options: CTP, RTP, None
  • Display Colour: White and Black
  • Module Dimensions: 36.3 × 71.8 × 1.0 mm
  • Operating Temperature: 0° to 50°C
Send Enquiry

Get started on your project

Loading
FeatureSpecification
Display ModeEPD
Screen Size 2.6"
Resolution 152 x 296
OrientationPortrait
Grey Level2
Reflectivity35
Contrast Ratio (minimum)8:1
InterfaceSPI
Touch Type Touch Options: CTP, RTP, None
Operating Voltage3.0V
OP Temperature 0° to 50°C
Dimensions36.3 × 71.8 × 1.0 mm
Lifetime1,000,000 times or 5 years

* Optional feature available on this product
